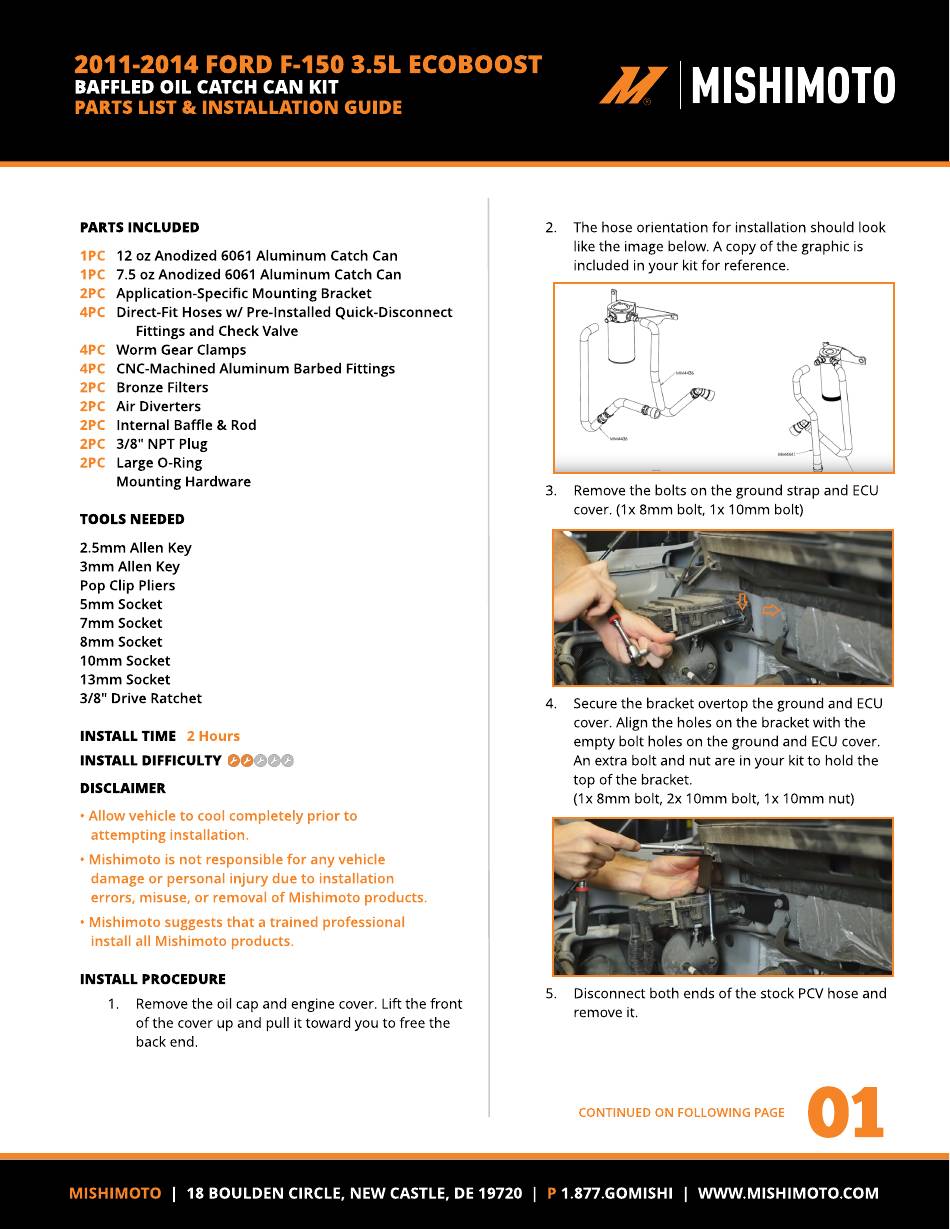

Mishimoto MMBCC-DRAIN-01 Parts List & Installation Manual

01
PARTS IN CLUDED
1PC 12 oz Anodized 6061 Alum inum Cat ch Can
1PC 7.5 oz Anodized 6061 Alum inum Cat ch Can
2PC Applicat ion-Specific Mount ing Bracket
4PC Direct -Fit Hoses w/ Pre-Inst alled Quick-Disconnect
Fit t ings and Check Valve
4PC Worm Gear Clam ps
4PC CNC-Machined Alum inum Barbed Fit t ings
2PC Bronze Filt ers
2PC Air Divert ers
2PC Int ernal Baffle & Rod
2PC 3/ 8" NPT Plug
2PC Large O-Ring
Mount ing Hardware
TOOLS N EEDED
2.5m m Allen Key
3m m Allen Key
Pop Clip Pliers
5m m Socket
7m m Socket
8m m Socket
10m m Socket
13m m Socket
3/ 8" Drive Rat chet
IN STALL TIM E 2 Hou r s
IN STALL DIFFICULTY
DISCLAIM ER
- Allow vehicle t o cool com plet ely prior t o
at t em pt ing inst allat ion.
- Mishim ot o is not responsible for any vehicle
dam age or personal injury due t o inst allat ion
errors, m isuse, or rem oval of Mishim ot o product s.
- Mishim ot o suggest s t hat a t rained professional
inst all all Mishim ot o product s.
IN STALL PROCEDURE
1. Remove the oil cap and engine cover. Lift the front
of the cover up and pull it toward you to free the
back end.
2. The hose orientation for installation should look
like the image below. A copy of the graphic is
included in your kit for reference.
3. Remove the bolts on the ground strap and ECU
cover. (1x 8mm bolt, 1x 10mm bolt)
4. Secure the bracket overtop the ground and ECU
cover. Align the holes on the bracket with the
empty bolt holes on the ground and ECU cover.
An extra bolt and nut are in your kit to hold the
top of the bracket.
(1x 8mm bolt, 2x 10mm bolt, 1x 10mm nut)
5. Disconnect both ends of the stock PCV hose and
remove it.
CONTINUED ON FOLLOWING PAGE
M ISHIM OTO | 18 BOULDEN CIRCLE, NEW CASTLE, DE 19720 | P 1.877.GOM ISHI | WWW.M ISHIM OTO.COM
2011-2014 FORD F-150 3.5L ECOBOOST
BAFFLED OIL CATCH CAN KIT
PARTS LIST & IN STALLATION GUIDE
