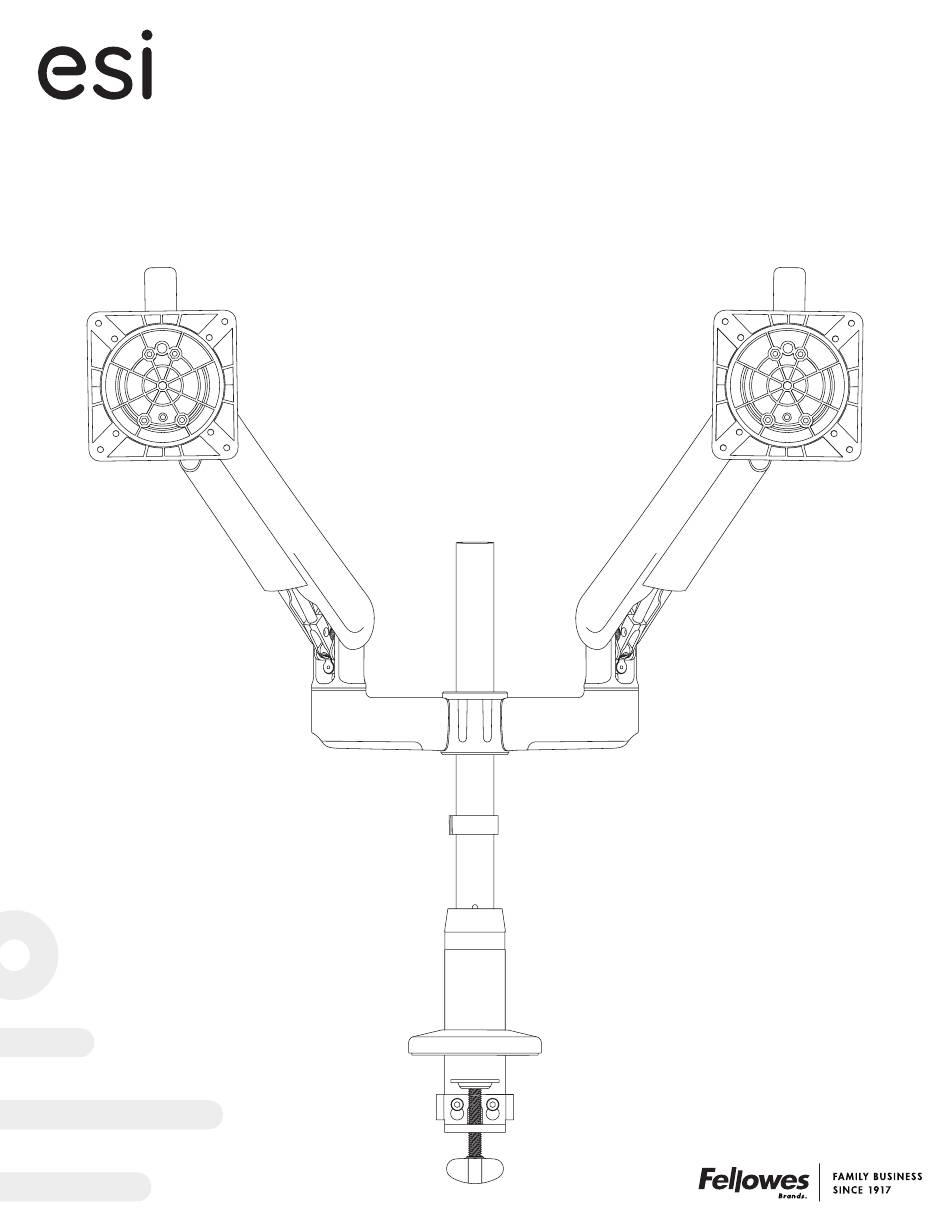

- Page 1 Kata EX2-M ™ Installation instructions Dual motion monitor arm Model # KATAEX2-DC-M-___ Model # KATAEX2-GM-M-___ ___ = SLV, BLK or WHT...
-
Page 2: Components And Tools
KataEX2-M Components and tools Caution • Hand tighten screws only. Do not use power tools. • The monitors should not be positioned behind the mounting location of the base. • If the monitor arm is installed on a desk or table with open space behind the arms, it is recommended to install the 180°... - Page 3 KataEX2-M Assembly Follow either step #1a for clamp mounting or step #1b for grommet mounting. All other steps apply to both mounting methods. Step #1a: attach base assembly to worksurface — clamp mounting The thickness of the worksurface must be between 0.5" and 2.1". To mount the clamp flush against the worksurface, the thickness must be no more than 1.5".
- Page 4 KataEX2-M Assembly Step #2: install connection sleeve to unlock, • Rotate the locking ring counterclockwise to unlock it. Remove the locking ring from the connection sleeve. turn locking ring • Slide the connection sleeve onto the post, usually with the screw toward the rear. With the sleeve at the desired counterclockwise height, tighten the screw using the 4mm Allen key.
- Page 5 KataEX2-M Assembly Step #5: attach VESA plates to monitors • Remove each VESA plate from its VESA mount by (1) pushing forward the tab at the top and (2) lifting upward. — TIP: Practice re-installing the VESA plate before attaching it to the monitor. This will make step #6 easier. •...
- Page 6 KataEX2-M Assembly Step #7: remove cable management covers • To remove the cover from the motion arms, slide the cable cover upward. To remove the cover motion arm from the arm stems, slide the cable cover out. arm stem slide up Step #8: install lockout set screws, if desired Default rotation of the motion arms is 360°.
- Page 7 KataEX2-M Assembly Step #10: make any necessary adjustments There are four possible swivel and tilt tension adjustments: 1. Monitor tilt adjustment — Use the 4mm end of the dual Allen key to loosen the screw on the side of the VESA mount to change monitor tilt angle. Tighten the screw to hold the angle. 2.
- Page 8 ESI’s option, of the product or any defective part. Costs (such as installation, labor fees or express shipping) incurred due to replacement of products are not covered under warranty. IN NO EVENT SHALL FELLOWES, ITS AFFILIATES, SUBSIDIARIES, RELATED ENTITIES OR THEIR RESPECTIVE OFFICERS, DIRECTORS, OR EMPLOYEES, BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, PUNITIVE, EXEMPLARY, OR SPECIAL DAMAGES.
