MecArmy PT Series User Manual

MecArmy
PT Series User Manual
Ultra Bright USB Rechargeable Compact Flashlight
Primary Features
· Patented Product
· Ultra bright Compact flashlight with USB rechargeable function
· Uses 3 CREE XP-G2 LEDs, lifespan up to 50,000 hours
· Momentary ON function
· Instant access to Turbo/Strobe
· Uses rechargeable lithium ion battery
· Quick recharge
· Standard Micro USB Charging port, charges on any USB port
· Charging and fully charged indicators
· Electronic side switch design, easy to change modes
· Wide voltage range circuit design
· Over-heat protection to avoid high-temperature of the surface
· Reverse polarity protection prevents damage from an incorrectly inserted battery
· Rugged pineapple texture for grip and anti-roll
· Constructed from aero grade aluminum alloy, with HAIII hard-anodized
· Tail stand capability
· IPX-8 water resistance
PT10 Specification
Emitter: 3×CREE XP-G2 LED
Mode/ Specification Turbo
Output (Lumens) 800
Runtime 18mins
Peak beam intensity
Max beam distance
Impact resistance
Waterproof
· Dimensions
Length：82.5mm/ 3.25in
Head dimension：30mm/ 1.18in
Body dimension：16mm/ 0.63in
· Weight： 59g/ 2.08oz (Excluding battery)
· Battery：10440 Li-ion battery (Compatible with AAA battery)
· Working voltage：0.9V-8.4V
· Charging time: 72 minutes (charging current 320mA)
· Accessory：User manual, 1×10440 Battery, O-ring, lanyard
PT14 Specification
Emitter: 3×CREE XP-G2 LED
Mode/ Specification Turbo
Output (Lumens) 900
Runtime 43mins
Peak beam intensity
Max beam distance
Impact resistance
Waterproof
· Dimensions
Length：88.5mm/ 3.48in
Head dimension：30mm/ 1.18in
Body dimension：20mm/ 0.79in
· Weight： 67g/ 2.36oz (Excluding battery)
· Battery：14500 Li-ion battery (Compatible with AA battery)
· Working voltage：0.9V-8.4V
· Charging time: 2.4h (charging current 320mA)
· Accessory：User manual, 1×14500 Battery, O-ring, lanyard
PT16 Specification
Emitter: 3×CREE XP-G2 LED
Mode/ Specification Turbo
Output (Lumens) 1100
Runtime 35mins
Peak beam intensity
Max beam distance
Impact resistance
Waterproof
· Dimensions
Length：67mm/ 2.64in
Head dimension：30mm/ 1.18in
Body dimension：22.5mm/ 0.88in
· Weight：40g/ 1.41oz (Excluding battery)
· Battery：16340 Li-ion battery (brightness and efficiency will be lower with
CR123A battery)
· Working voltage：3.4V-8.4V
· Charging time: 90 minutes (charging current 500mA)
· Accessory：User manual, 1×16340 Battery, O-ring, lanyard
Low Med High Strobe
10 100 320 800
17h 85mins 25mins
4013cd
126m
1.5m
IPX8 (underwater 2 meters)
Low Med High Strobe
10 100 330 900
45h 4.2h 1.1h
4369cd
132m
1.5m
IPX8 (underwater 2 meters)
Low Med High Strobe
13 90 362 1100
39h 3.3h 2.4h
6477cd
159m
1.5m
IPX8 (underwater 2 meters)
PT18 Specification
Emitter: 3×CREE XP-G2 LED
Mode/ Specification
Output (Lumens)
Runtime
Peak beam intensity
Max beam distance
Impact resistance
Waterproof
· Dimensions
Length：103mm/ 4.06in
Head dimension：30mm/ 1.18in
Body dimension：22mm/ 0.87in
· Weight： 60g/ 2.33oz (Excluding battery)
· Battery：18650 Li-ion battery
· Working voltage：3.4V-8.4V
· Charging time: 3 hours (charging current 1000mA)
· Accessory：User manual, 1×18650 Battery, O-ring, lanyard
NOTICE: The above-mentioned parameters are approximate and may vary between
flashlights, batteries and environments.
Operation
· From OFF: 1 click for ON (Low mode)
· From OFF: 2 click for Turbo
· From OFF: 3 click for STROBE
· From STROBE: Long press (> 1 second) for SOS
· From OFF: Press and hold for Momentary ON (Turbo); release to turn OFF
· From ON: 1 click for OFF
SOS
· From ON: Press and hold to cycle through modes (Low/ Med/ High/ Turbo)
800
Turbo Mode: In Turbo mode the 3 CREE XP-G2 LEDs run at the highest brightness
and discharge rate. High quality batteries are recommended for peak performance.
The PT series is a high-performance light and generates significant heat in Turbo
mode. To protect the light and user, output in Turbo will drop to 70% of maximum
brightness after 3 minutes. Output will also be adjusted by real time temperature
monitoring
Charging

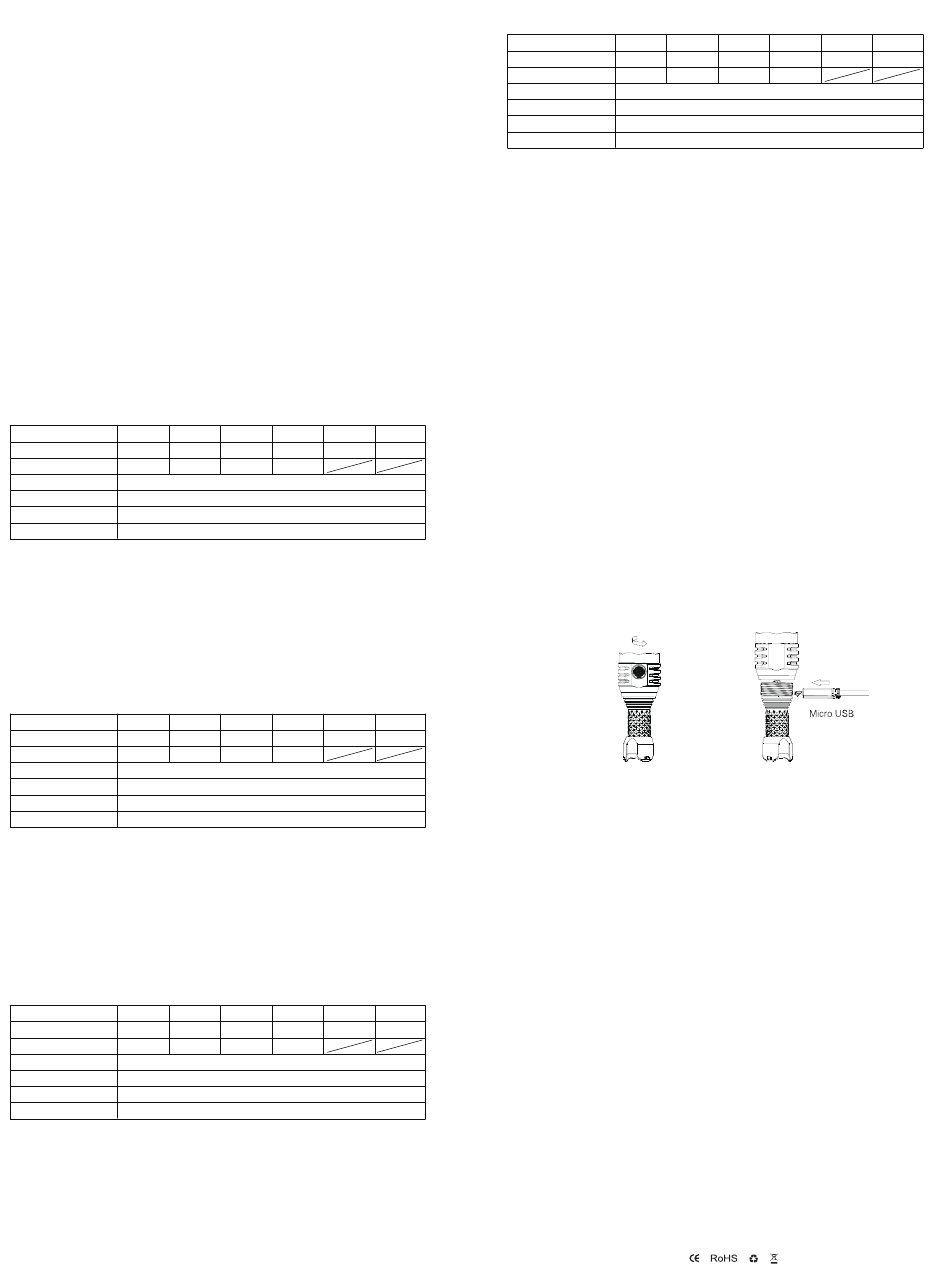

Carefully unscrew and remove the light's head, and connect a mini USB charging
cable as shown in the diagram below
SOS
900
Charging Indicator
When charging, the indicator light turns red, when charging is complete, the
indicator light turns green
No indicator light indicates that there is no load
WARNING:
· Do not point the light at human or animal eyes
· Do not look directly into the light when it is switched on
· Do not permit children to use the flashlight unsupervised
Maintenance
· Remove battery when stored for extended periods
· Replace and lubricate O-Rings as needed to maintain IPX-8 rating
· Every 6 months, thread should be wiped with a clean cloth followed by a thin
coating of silicon-based lubricant
Warranty Service
SOS
· Guaranteed exchange up to 15 days after purchase: any defective product can be
1100
exchanged for a replacement through a local distributor/dealer within 15 days
· After 15 days: all defective products can be repaired free of charge for a period of
5 years from the date of purchase
· Lifetime workmanship guarantee: after the free maintenance period has expired,
the maintenance service will charge for material expenses only, free of labor
expenses.
Turbo Low Med High
1200 8 96 336
87h 16h 4h
2.83h
6477cd
159m
1.5m
IPX8 (underwater 2 meters)
