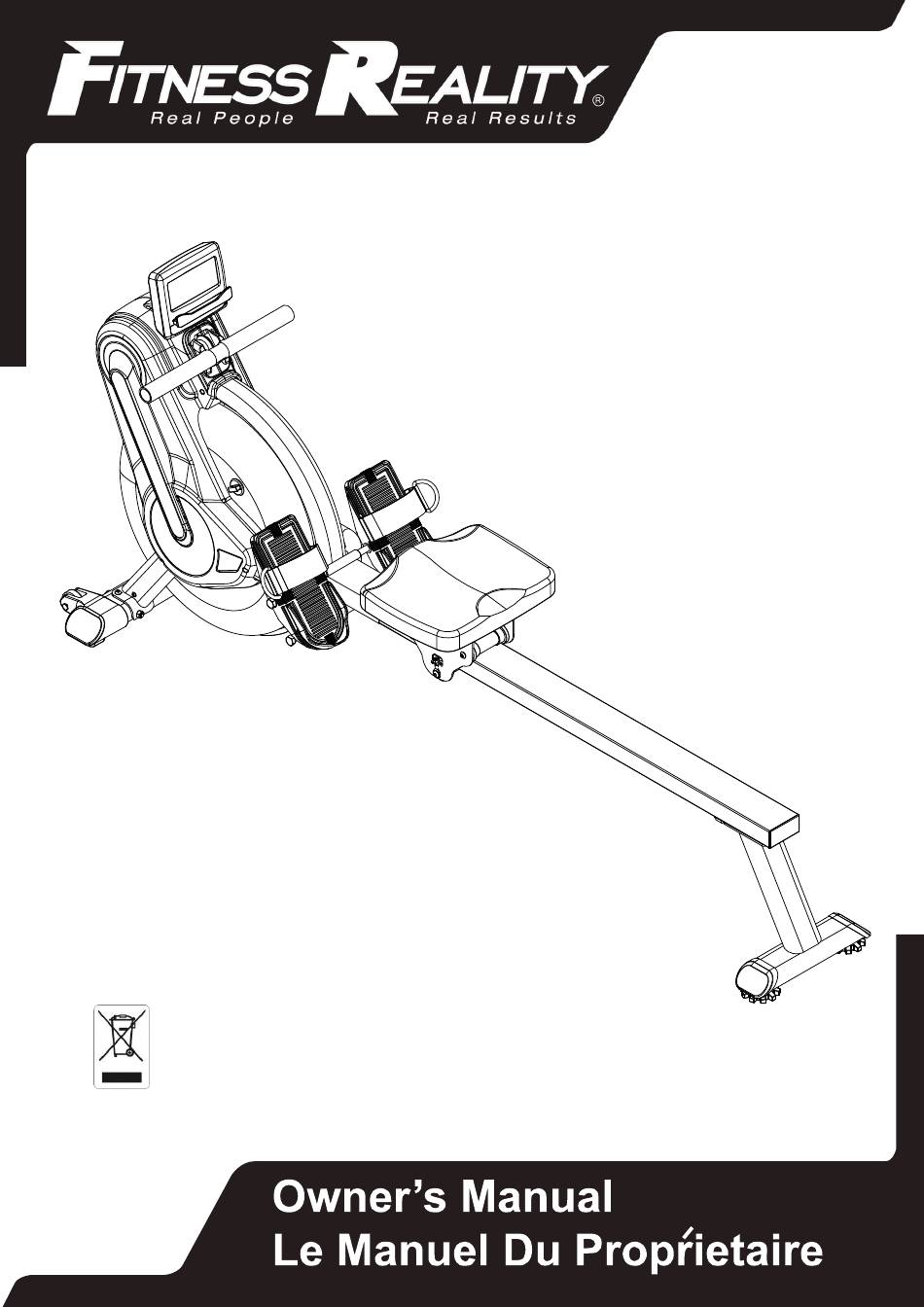

Fitness Reality 2671D Owner's Manual

Vertical water rower

Advertisement

Quick Links

Vertical Water Rower
IMPORTANT: Read all instructions carefully before using this product.
Retain this owner's manual for future reference.
The specifications of this product may vary from this photo, subject to
change without notice.
2673.2-090721

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2671D and is the answer not in the manual?

Questions and answers

Summary of Contents for Fitness Reality 2671D

  • Page 1 Vertical Water Rower IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo, subject to change without notice. 2673.2-090721...
  • Page 2 PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE. Automatically set up an Email to CUSTOMER SERVICE by SCANNING this QR code with the Camera or a QR code scanner APP on your smart device. See the Service Page for other methods of contacting Customer Support.
  • Page 3: Table Of Contents

    TABLE OF CONTENT SERVICE ................................. 2 LABEL PLACEMENT ............................2 IMPORTANT SAFETY GUIDELINES ......................... 2 OVERVIEW DRAWING ........................... 2 PARTS LIST ..............................2 HARDWARE & TOOLS PACK .......................... 2 ASSEMBLY ..............................2 CONSOLE ............................... 2 ADJUSTMENTS & TRANSPORTING ........................ 2 STORAGE ...............................
  • Page 4: Service

    SERVICE IMPORTANT: FOR NORTH AMERICA ONLY For damaged or defective product, questions, replacement parts or any other service support, please contact our customer service department using one of the below methods: Scan the QR code with the camera or any QR code scanner app on your smart device.
  • Page 5: Label Placement

    LABEL PLACEMENT...
  • Page 6: Important Safety Guidelines

    IMPORTANT SAFETY GUIDELINES Read all instructions before using the Rower. Basic precautions should always be followed. WARNING - To reduce the risk of injury to persons, read the following: Be sure all screws, nuts, and bolts are tightened prior to use. Before using this equipment, we recommend doing warm ups.
  • Page 7: Overview Drawing

    OVERVIEW DRAWING...
  • Page 8: Parts List

    PARTS LIST No. Description Description 1 Main Frame 35 Handle Bar End Cap 2 Sliding Tube 36 Handle Bar Sleeve 3 Rear Stabilizer 37 Braid ** 4 Front Stabilizer 38 Braid Pulley ** 5 Handle Bar 39 Seat Rolling Wheel 6 Seat Plate 40 Rubber Pad 7 Iron Bushing **...
  • Page 9 PARTS LIST Description Description 69 Washer OD8*ID3.9*0.5 ** 90 Funnel 70 Nylon Hex Nut M3 ** 91 Siphon Pump 71 Eye Bolt 92 Double Mechanical Seal ** Hex Socket Round Head Screw 93 Bearing 6004 ** M5*15 Hex Socket Round Head Screw Hex Socket Round Head Bolt M6*58 M8*95 74 Flat Washer OD20*ID8.5*1.5 **...
  • Page 10: Hardware & Tools Pack

    HARDWARE & TOOLS PACK...
  • Page 11: Assembly

    ASSEMBLY Add Styrofoam block under Main Frame to prevent water tank from touching floor. Tool: (96) Allen Wrench with Phillips Screwdriver Round Head Screw (67) and Flat Washer (104) are pre-installed on Front Stabilizer (4) Step 1 1A. Installing the Front Stabilizer Remove the Round Head Screw (67) and Flat Washer (104) that are pre-installed, on Front Stabilizer (4).
  • Page 12 ASSEMBLY NOTE: The narrow edge of the Rubber Pad (40) should be pointing towards the Seat (17). Tool: (96) Allen Wrench with Phillips Screwdriver Step 2 2A. Installing the Seat Slide the Seat (17) onto the Sliding Tube (2) with the arrow sticker pointed forward. Attach the Rubber Pad (40) onto the underside of the Sliding Tube (2) with two Hex Socket Screws (65).
  • Page 13 ASSEMBLY Tool: (97) Open Wrench 1PC Step 3 3A. Installing the Rear Stabilizer Attach the Rear Stabilizer (3) onto the underside of the Sliding Tube (2) with four Flat Washers (74), and four Hex Bolts (62). Tighten four Hex Bolts (62) using the Open Wrench (97) provided. Hardware: (74) Flat Washer (62) Hex Bolt...
  • Page 14 ASSEMBLY Tool: (96) Allen Wrench with Phillips Screwdriver Step 4 4A. Installing the Slide Tube Insert the Main Frame (1) into the Sliding Tube (2). Attach four Flat Washers (74) and four Hex Socket Round Head Screw (67) on both sides of Sliding Tube (2).
  • Page 15 ASSEMBLY Tool: (97) Open Wrench 1PC Step 5 Installing the Pedals 5A. Attach one Hex Bolt (63) into the LOW bolt hole on the left side of the Main Frame (1). Tighten using the Open Wrench (97) provided. 5B. Slide one Hex Bolt (63) through the center of the Pedal (12), then slide a Bushing (64) onto the end of that Hex Bolt (63).
  • Page 16 ASSEMBLY Tool: (97) Open Wrench 1PC (96) Allen Wrench with Fig A Phillips Screwdriver Place wires inside bracket before installation of Step 6 hardware. Installing the Console to Main Frame Connect the wire of Console (54) to the Sensor Wire Set (95) from the Main Frame (1).
  • Page 17: Console

    CONSOLE BATTERY INSTALLATION 1. Remove the battery cover from the console by unclipping it from the console. 2. Install the batteries. The positive and negative poles are labeled in the image above. 3. After installing the batteries, secure them in place by replacing the cover USING THE CONSOLE Power On: Press any button to turn on.
  • Page 18 CONSOLE How to Set Up Console: 1. Turn on the console by pressing any button or by pulling the rowing handle. a. Select water level in tank (L1-L6) with the LEFT and RIGHT arrows to toggle. b. Press ENTER when you have made your selection. c.
  • Page 19 CONSOLE e. TARGET GOALS v. Select the TARGET GOALS to enter the goals section. There you will find 3 different goals selections. 1. TIME selection. Press ENTER when highlighted. a. Press the left or right ARROW keys to enter desired TIME GOAL. Range is from 1:00 to 240:00 minutes.
  • Page 20: Adjustments & Transporting

    ADJUSTMENTS & TRANSPORTING DANGER: HAZARDOUS CHEMICALS. Do not ingest Purification Tablets. Fig. B Fill Water Tank 1. Remove the Seal End Cap (50) from the Left Water Tank Cover (24). 2. Insert the Funnel (90) into the hole of Seal End Cap (50) on the Left Water Tank Cover (24). Use a cup or a bucket with the Siphon Pump (91) and the Funnel (90) to fill the water tank.
  • Page 21 ADJUSTMENTS & TRANSPORTING Drain Water Tank 1. Remove the Seal End Cap (50) from the Left Water Tank Cover (24). 2. Place a bucket beside the water tank and use the Siphon Pump (91) to pump out the water from the water tank into the bucket. Squeeze the bulb of the Siphon Pump (91) to flow water out of the tank 3.
  • Page 22 ADJUSTMENTS & TRANSPORTING  If the seat does not slide easily, or the seat shakes too much, adjust the Nylon Hex Nut (81). We highly recommend you to use your smart devices to scan the QR Code for adjusting the Nylon Hex Nut (81).
  • Page 23: Storage

    STORAGE  Hold the Rear Stabilizer (3) and pull the machine up until the Transportation Wheels of the Front Stabilizer (4) make contact with the floor as shown.  ALWAYS Store the Rower in a clean and dry environment away from pets and children.
  • Page 24: Maintenance & Troubleshooting

    MAINTENANCE & TROUBLESHOOTING MAINTENANCE  The rower can be cleaned with a soft clean damp cloth. Do not use abrasives or solvents on the plastic parts.  Wipe perspiration off the rower after each use. Be careful not to get excessive moisture on the computer display panel as this might cause an electrical hazard or the electronics to fail.
  • Page 25: Warranty

    WARRANTY MANUFACTURER’S LIMITED WARRANTY Paradigm Health & Wellness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with Paradigm’s Owner’s Manual.
  • Page 26: Parts Request Form

    PARTS REQUEST FORM Paradigm Health & Wellness, Inc. EMAIL THIS FORM WITH YOUR RECEIPT OF PURCHASE TO NAME: _____________________________________________________________________ ADDRESS: __________________________________________________________________ CITY: ________________________ STATE: ____________ZIP: ________________________ TELEPHONE: (Day)_________________________________________________________ (Night)________________________________________________________ SERIAL#:____________________________________________________________________ MODEL#:____________________________________________________________________ PURCHASE DATE: ___________________________________________________________ PLACE OF PURCHASE: _______________________________________________________ PART # DESCRIPTION “YOUR ORDER WILL BE PROCESSED WITHIN 3 BUSINESS DAYS”...
