Fitness Reality 2809D.2 Owner's Manual

Multi-function adjustable power rack squat stand
Hide thumbs
Table of Contents

Advertisement

Quick Links

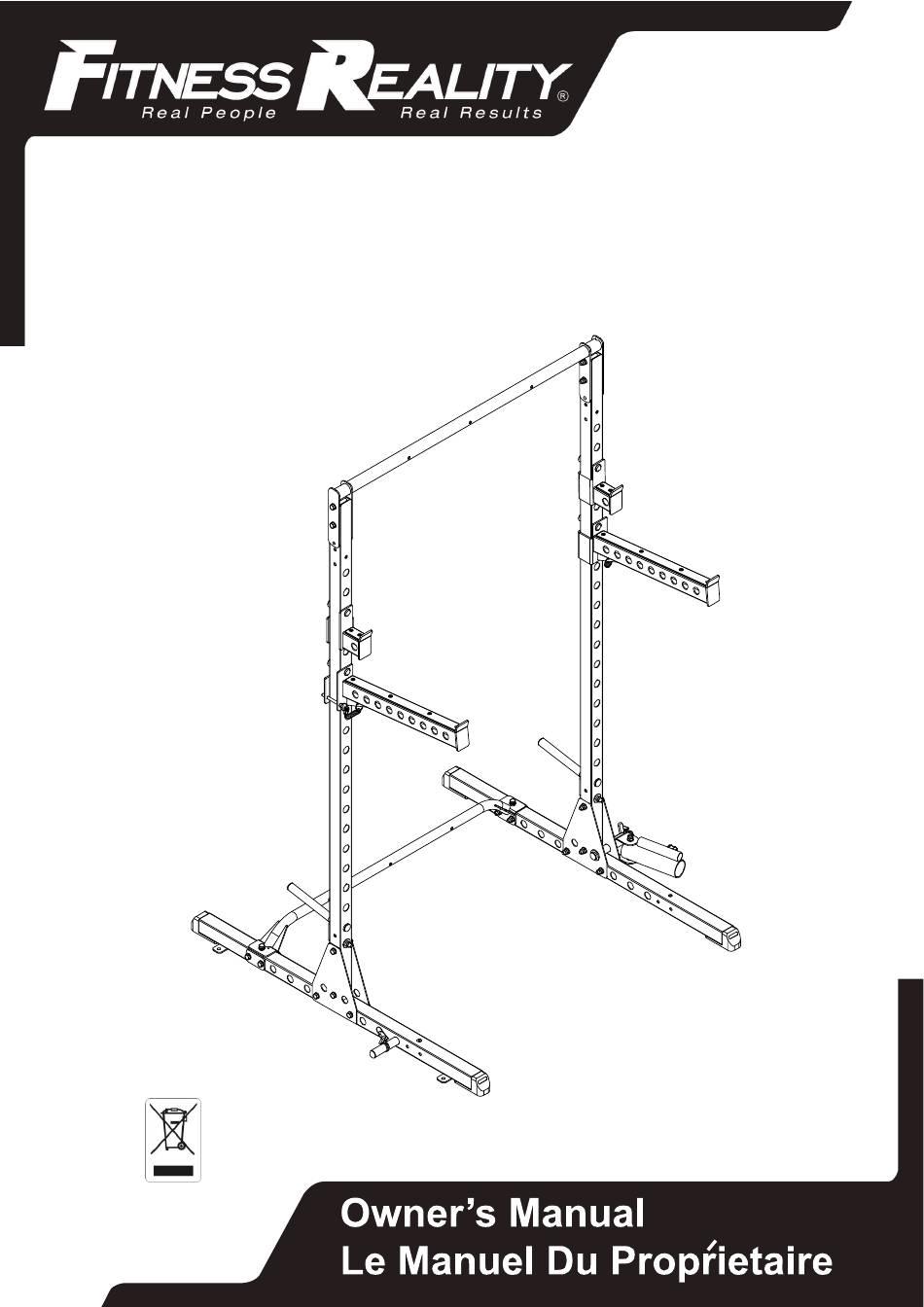

Multi-Function Adjustable Power Rack
Squat Stand
IMPORTANT: Read all instructions carefully before using this product.
Retain this owner's manual for future reference. The specifications of this
product may vary from this photo and, subject to change without notice.
2809D.2 -081821

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2809D.2 and is the answer not in the manual?

Questions and answers

Related Manuals for Fitness Reality 2809D.2

Summary of Contents for Fitness Reality 2809D.2

  • Page 1 Multi-Function Adjustable Power Rack Squat Stand IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo and, subject to change without notice. 2809D.2 -081821...
  • Page 2 PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE. Automatically Email CUSTOMER SERVICE by SCANNING this QR code with the Camera or a QR code scanner APP on your smart device. See the Service page for other methods of contacting customer support...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SERVICE .......................... 2 LABEL PLACEMENT ......................3 IMPORTANT SAFETY GUIDEILNES ................4 ASSEMBLY PREPARATION ..................... 5 OVERVIEW DRAWING ....................6 PART LIST ........................7 HARDWARE PACK ......................8 PRODUCT DRAWING ....................10 STEP 1 ........................... 11 STEP 2 ........................... 13 STEP 3 ...........................

  • Page 4: Service

    SERVICE IMPORTANT: FOR NORTH AMERICA ONLY For damaged or defective product, questions, replacement parts or any other service support, please contact our customer service department by the below methods: Scan the QR code with the camera or any QR code scanner app on your smart device.

  • Page 5: Label Placement

    LABEL PLACEMENT...

  • Page 6: Important Safety Guideilnes

    IMPORTANT SAFETY GUIDEILNES WARNING: Before using this equipment you should consult with your physician if you have any of the following conditions or ailments:  Extreme obesity  Glaucoma, retinal detachment or conjunctivitis  Pregnancy  Spinal injury, Cerebral Sclerosis, or acutely swollen joints ...

  • Page 7: Assembly Preparation

    ASSEMBLY PREPARATION Warning: It is highly recommended that you have assistance during the assembly of the strength equipment. Tools for assembly: General tools you may need for the assembling this strength equipment:  Metric Allen Key Set  Metric Wrench Set and Adjustable Wrench ...

  • Page 8: Overview Drawing

    OVERVIEW DRAWING...

  • Page 9: Part List

    PART LIST Part # Description Q'ty Upper Frame Left J-Hook Right J-Hook Left Long Safety Catch Right Long Safety Catch Base Beam Gusset Plate Mounting Plate Weight Plate Holder Shaft Landmine Attachment U-Bracket Rear Cross Bar Upright Frame Elastic Cord Cable Ring Long Rubber Pad Short Rubber Pad...

  • Page 10: Hardware Pack

    HARDWARE PACK Wrench 2 pcs...
  • Page 11 HARDWARE PACK (294) Clip 2PCS (12) Knob 1PC (485) Foot End Cap 4 PCS...

  • Page 12: Product Drawing

    PRODUCT DRAWING...

  • Page 13: Step 1

    STEP 1 1A. Insert a Foot End Cap (485) into each side of the Base Frame (F). 2 - (485) Foot End Cap, see fig. A. 1B. Attach the Rear Cross Bar (M) and two Mounting Plate (H) to the Base Frame (F) using: 4 - (32) Hexagon Head Bolt 10 - (67) Washer...

  • Page 14: Step 2

    STEP 1 Wrench 2 PCS Fig A. (67) Washer (75) Nylon Lock Nut (32) Hexagon Head Bolt 10PCS 4PCS 4PCS (33) Hexagon Head (34) Spring Washer (485) Foot End Cap Bolt 2PCS 2PCS 4PCS...

  • Page 15: Step 3

    STEP 2 2A. Attach four Gusset Plate (G) to the Base Beams (F) by using: 4 - (32) Hexagon Head Bolt 8 - (67) Washer 4 - (75) Nylon Lock Nut 2B. Attach two Upright Frames (N) to the four Gusset Plate (G) by using: 4 - (32) Hexagon Head Bolt 8 - (67) Washer 4 - (75) Nylon Lock Nut...
  • Page 16 STEP 2 Wrench 2 PCS (75) Nylon Lock Nut (32) Hexagon Head Bolt (67) Washer 8PCS 8PCS 16PCS...
  • Page 17 STEP 3 3A. Attach the Upper Frame (A) onto both Upright Frames (N) by using: 4 - (32) Hexagon Head Bolt 8 - (67) Washer 4 - (75) Nylon Lock Nut NOTE 1: The Upright Frames (N) have decals that say UP. The ends with the UP decal should be attached to the Upper Frame (A).
  • Page 18 STEP 3 Wrench 2 PCS 81 inch height option 78 inch height option (67) Washer (75) Nylon Lock Nut (32) Hexagon Head Bolt 8PCS 4PCS 4PCS...

  • Page 19: Step 4

    STEP 4 4A. Attach the Weight Plate Holder (I) onto the Upright Frame (N) by using: 2 - (32) Hexagon Head Bolt 2 - (67) Washer 2 - (75) Nylon Lock Nut 2 - (35) Washer Give the cage a shake so all the structure can settle and then thoroughly tighten ALL the hardware.
  • Page 20 STEP 4 Wrench 2 PCS (35) Washer 2PCS (75) Nylon Lock Nut (67) Washer (32) Hexagon Head Bolt 2PCS 2PCS 2PCS...

  • Page 21: Step 5

    STEP 5 5A. Assemble the Landmine Attachment (K) by using: 1 – (12) Knob 5B. Insert the Shaft (J) into the Gusset Plate (G) with the Landmine Attachment (K) and by using: 1 – (294) Clip 5C. Insert the second Shaft (J) into any of the holes on the Base Beam (F) by using: 1 –...

  • Page 22: Step 6

    STEP 5 NOTE 3: The Shafts (J) can be used to hold squat resistance bands for adding additional resistance to a barbell squat. *BANDS NOT INCLUDED NOTE 4: The Landmine Attachment (K) should only be used in the 1 inch holes on the Gusset Plate (G). (294) Clip (12) Knob 2PCS...
  • Page 23 STEP 6 6A. The two Right & Left Long Safety Catches (D) & (E) can be inserted into the holes along with the Upright Frame (N). Always insert the Safety Pin (14) onto the Upright Frame (N) to lock them in place. Place them at the same level on the left and right side of the cage and at a comfortable height that will assist you during your workout.
  • Page 24 STEP 6...

  • Page 25: Warranty

    WARRANTY MANUFACTURER’S LIMITED WARRANTY Paradigm Health & Wellness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with Paradigm’s Owner’s Manual.

  • Page 26: Parts Request Form

    PARTS REQUEST FORM Paradigm Health & Wellness, Inc. EMAIL THIS FORM WITH YOUR RECEIPT OF PURCHASE TO Service@paradigmhw.com NAME:_____________________________________________________________________________________ ADDRESS:__________________________________________________________________________________ CITY:________________________ STATE:_____________ ZIP:_______________________________________ TELEPHONE: (Day)______________________________________________________________________ (Night)_____________________________________________________________________ SERIAL#:___________________________________________________________________________________ MODEL#:___________________________________________________________________________________ PURCHASE DATE:___________________________________________________________________________ PLACE OF PURCHASE:_______________________________________________________________________ PART # DESCRIPTION “YOUR ORDER WILL BE PROCESSED WITHIN 3 BUSINESS DAYS” This form can also be faxed to #: 626-810-2166...
