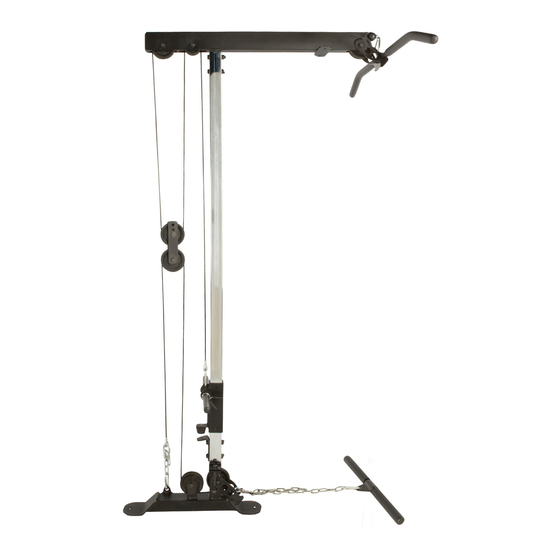

Fitness Reality X-Class Olympic Lat Pull
Down and Row Cable
IMPORTANT: Read all instructions carefully before using this product.
Retain this owner's manual for future reference. The specifications of this
product may vary from this photo and, subject to change without notice.
2852.5-103118

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XLASS and is the answer not in the manual?

Questions and answers

Related Manuals for Fitness Reality XLASS

Summary of Contents for Fitness Reality XLASS

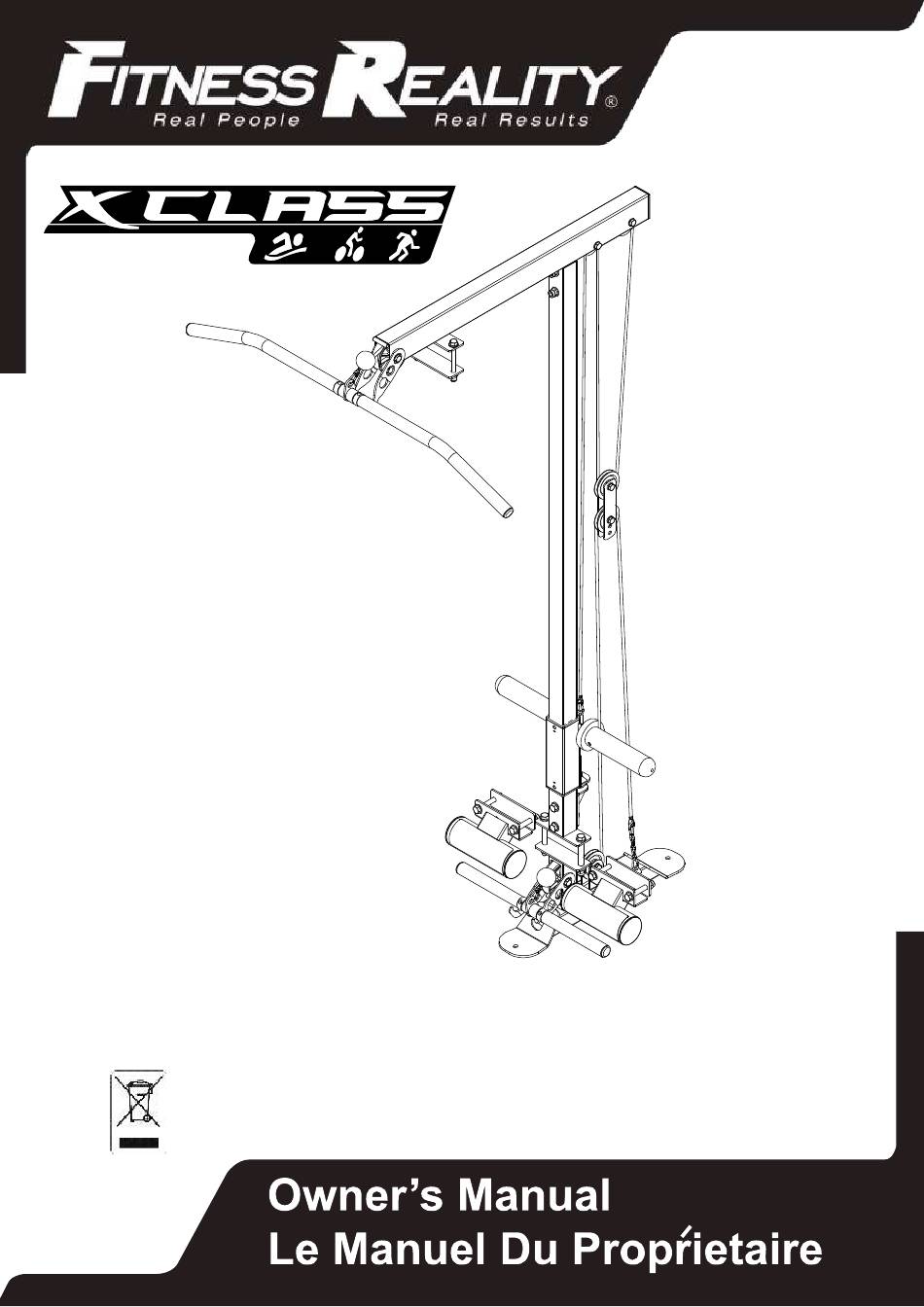

  • Page 1 Fitness Reality X-Class Olympic Lat Pull Down and Row Cable IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo and, subject to change without notice.
  • Page 2 PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE. STOP. Contact customer service if you have any questions regarding assembly or proper operation of the machine. Email us at: Service@paradigmhw.com Or call us at: 1-844-641-7920 Hours: 8:00 am to 5:00 pm (PST) Monday thru Friday...

  • Page 3: Table Of Contents

    TABLE OF CONTENT SERVICE--------------------------------------------------------------------- 2 LABEL PLACEMENT----------------------------------------------------- IMPORTANT SAFETY GUIDELINES--------------------------------- 4 OVERVIEW DRAWING-------------------------------------------------- HARDWARE & TOOLS PACK------------------------------------------ 7 PART LIST------------------------------------------------------------------- 8 ASSEMBLY------------------------------------------------------------------ 10 OPERATIONS & ADJUSTMENTS----------------------------------- WARRANTY----------------------------------------------------------------- 26 PARTS REQUEST FORM----------------------------------------------- 27...

  • Page 4: Service

    SERVICE IMPORTANT: FOR NORTH AMERICA ONLY For damaged or defective product, questions, replacement parts or any other service support, please contact our customer service department by the below methods: For The Best Service, please Email: service@paradigmhw.com Response Time: 1-2 Business Days Emailing us with the information above will be the best method to receive a response during peak business hours Website:...

  • Page 5: Label Placement

    LABEL PLACEMENT...

  • Page 6: Important Safety Guidelines

    IMPORTANT SAFETY GUIDELINES Read all instructions carefully before assembling and operating this unit. This unit is designed with optimum safety in mind. Retain this owner’s manual. Do not remove any safety labels from the machine, and keep the original purchase receipt for future reference.
  • Page 7 Consult the manual if you experience any issues or need further help. Please contact our service department. See the SERVICE Page. This product is only to be used alongside with the Fitness Reality X-Class Power Cage (2867). There may be parts referenced that are NOT on this equipment’s parts list.

  • Page 8: Overview Drawing

    OVERVIEW DRAWING...

  • Page 9: Hardware & Tools Pack

    HARDWARE & TOOLS PACK...

  • Page 10: Part List

    PARTS LIST Q’ty. Q’ty. Part# Description Part# Description BASE ASSEMBLY WASHER D13xD24x2.5 SLIDER BAR MOUNT NYLON NUT M10 UPPER PIPE ASSEMBLY NYLON NUT M12 RECTANGLE END CAP SLIDER BAR 75x50x2 FOOTPLATE PADS SLIDER 100x80x5.0 OLYMPIC PLATE STOPPER FOOT REST ￠80x￠50x16 PULLEY PLATE HANDGRIP D23x3.0x210 STOPPER PLATE...
  • Page 11 This Page was intentionally left blank.

  • Page 12: Assembly

    ASSEMBLY Step 1 This product is only to be used alongside with the Fitness Reality X-Class Power Cage (2867). There may be parts referenced that are NOT on this equipment’s parts list. 1A. Installing the Base Slide the Base Assembly (A) underneath the Stability Beam (K-6877) and align it with the bolt holes on the bottom side of the Stability Beam (K-6877).
  • Page 13 ASSEMBLY TOOLS Wrench 2PCS HARDWARE PACK (16) Hex Bolt (76) Nylon Nut (52) Washer 2PCS 2PCS 4PCS...
  • Page 14 ASSEMBLY Step 2 2A. Installing the Foot Rests Attach the two Foot Rests (F) and two Connecting Plates (K) to the Stability Beam (K-6877) by using four Hex Bolts (7), eight Washers (52), four Nylon Nuts (76). Thoroughly tighten the Bolts (7) and Nuts (76) with the Wrench(s) provided.
  • Page 15 ASSEMBLY TOOLS Wrench 2PCS HARDWARE PACK (76) Nylon Nut (7)Hex Bolt (52) Washer 4PCS 4PCS 8PCS...
  • Page 16 ASSEMBLY Step 3 3A. Installing the Slider Bar Insert the Slider Bar (D) into the Slider Bar Mount (B) and hold the Slider Bar (D) in place. 3B. Installing the Stopper Plate Align the bolt holes of the Stopper Plate (H) with the bolt holes at the rear of the Slider Bar Mount (B) and fasten the Stopper Plate (H), Slider Bar (D), and Slider Bar Mount (B) together by using two Hex Bolts (22), four Washers (52), two Nylon Nuts (76).
  • Page 17 ASSEMBLY TOOLS Wrench 2PCS HARDWARE PACK (22) Hex Bolt (52) Washer (76) Nylon Nut 2PCS 4PCS 2PCS...
  • Page 18 ASSEMBLY Step 4 4A. Installing the Upper Pipe Assembly to the Slider Bar Insert the Upper Pipe Assembly (C) into the Slider Bar (D) and secure it by using two Hex Bolts (26), four Washers (52), two Nylon Nuts (76) using two Hex Bolts (26), four Washers (52), two Nylon Nuts (76).
  • Page 19 ASSEMBLY TOOLS Wrench 2PCS HARDWARE PACK (76) Nylon Nut (52) Washer (16) Hex Bolt (26) HEX BOLT 4PCS 8PCS 2PCS 2PCS...
  • Page 20 ASSEMBLY Step 5 5A. Preassembly of the Upper Cables In preparation for the installation of the pulleys in Step 6 take the Upper Cable (291) and feed the smaller end into the Upper Pipe Assembly (C) until it can be pulled out from the furthest hole at the opposite end of Upper Pipe Assembly (C).
  • Page 21 ASSEMBLY...
  • Page 22 ASSEMBLY Step 6 6A. Installing the Wide Groove Pulleys Install the two Wide Groove Pulleys (L) at the locations shown in the Figure A by using two Hex Bolts (25), four Washers (51), two Nylon Lock Nuts (75). Refer to Figure B to see a side profile of the installation.
  • Page 23 ASSEMBLY TOOLS Wrench 2PCS HARDWARE PACK...

  • Page 24: Operations & Adjustments

    OPERATIONS & ADJUSTMENTS To adjust the length of the Lower Cable (292) use the Chain (294) and an additional Hook (293) to give a comfortable length to workout with. To adjust the length of the Upper Cable (291), change the location at which the Pulleys (228) are mounted to the Pulley Plates (G).
  • Page 25 OPERATIONS & ADJUSTMENTS TOOLS 4mm Allen Wrench If you would like to use the available Olympic Plate Adaptors for Olympic sized plates, please follow the steps below: A. Use a 4mm Allen Wrench to loosen the Allen screws of the Olympic Plate Adaptors (226).
  • Page 26 OPERATIONS & ADJUSTMENTS When using standard size 1” inch plates, use the available Standard Clips. To install the Standard Clips, please follow the steps below: A. Pinch the rubber grips of Standard Clip (295). B. Slide a Standard Clip (295) on to each post of the Slider (E).
  • Page 27 OPERATIONS & ADJUSTMENTS Lubrication The machine must be lubricated periodically. ONLY USE SILICONE OIL when lubricating the Slider Bar (D). A. Wipe the Slider Bar (D) clean using a dry cloth. Be sure to clean off any dried oil. Remove the Silicone Oil from inside the packaging and cut the lid off using a pair of scissors.

  • Page 28: Warranty

    WARRANTY MANUFACTURER’S LIMITED WARRANTY Paradigm Health & Wellness guarantees to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with Paradigm’s Owner’s Manual.

  • Page 29: Parts Request Form

    PARTS REQUEST FORM Paradigm Health & Wellness, Inc. EMAIL THIS FORM WITH YOUR RECEIPT OF PURCHASE TO Service@paradigmhw.com* NAME:_____________________________________________________________________________________ ADDRESS:__________________________________________________________________________________ CITY:________________________ STATE:_____________ ZIP:_______________________________________ TELEPHONE: (Day)________________________________________________________________________ (Night)_______________________________________________________________________ SERIAL#:___________________________________________________________________________________ MODEL#:___________________________________________________________________________________ PURCHASE DATE:___________________________________________________________________________ PLACE OF PURCHASE:_______________________________________________________________________ PART # DESCRIPTION “YOUR ORDER WILL BE PROCESSED WITHIN 3 BUSINESS DAYS” * This form can also be faxed in Fax #: 626-810-2166...
