Dolonm 3T1848 Assembly Instructions

3-TIER WIRE SHELVING RACK
PACKAGE CONTENTS
A
B
x 3 Shelf x 24 +2 extra
Tapered Lock
E F
x 4
Wheel
x 4
(2 locking, 2 non-locking)
Feet Leveler
(for mobile option)
(for stationary option)
3T1848
Warning:
Maximum weight capacity per shelf is
1000lbs when equally distributed on
feet levelers.
Maximum entire unit weight capacity is
700lbs when equally distributed on casters.
Failure to follow these instructions may
result in serious injury or death of
yourself and people around you.
Some of the part are heavy and/or has
shape edge, please install it carefully to
avoid hurt you and people around you.
Caution:
Do not stand on or climb on the shelving unit.
Place heavier items on lower shelves
and lighter ones on top shelves.
C
x 4 Pole (with feet leveler preassembled)
D
x 3 Shelf liner
G
x 8
Black plastic spacer
(NOTE: Discard the black plastic spacers G.
These between each shelf are only for packing
purpose , not for assembling.)

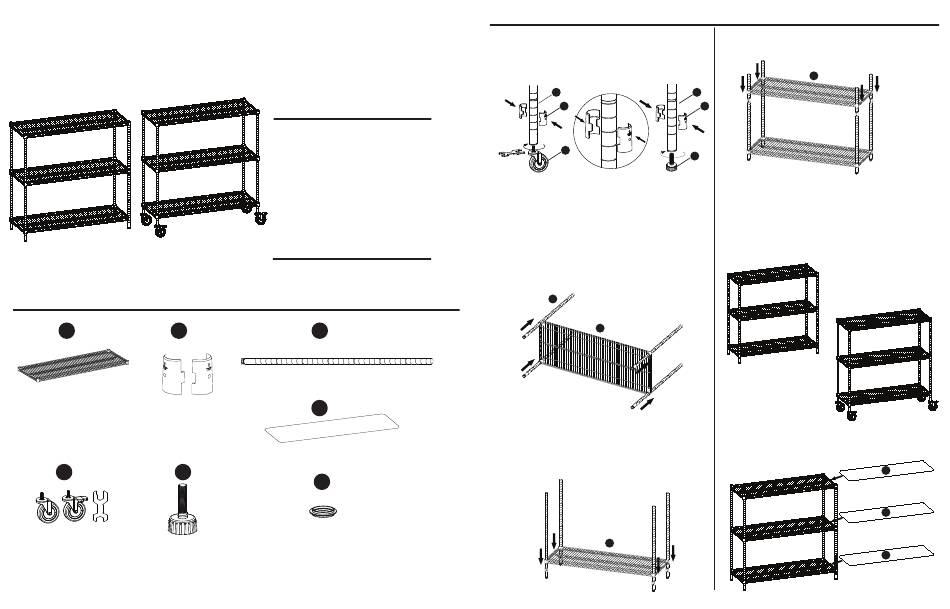

ASSEMBLY INSTRUCTIONS
1.With the tapered end facing up, snap the two halves of a
tapered lock (B) at the desired height on pole (C).
Repeat for the remaining poles (C), making sure
the tapered locks (B) are installed at the same grooved
line on each pole (C).
C
B
E
MOBILE
STATIONARY
Attention: The wheel (E) must be fully screwed
to the bottom pole (D) by wrench
Attention：The tapered must be fixed to the
groove on the pole, and make sure the tapered
does not slip before installing the shelf
2. Rest shelf (A) on its side, then insert the poles (C) through
the corner holes of the shelf (A).
C
A
3. Turn assembly upright and push the shelf (A) firmly onto
the tapered locks (B). Note: Make sure the lip of shelf (A)
is facing down and the poles (C) are on the floor.
A
4. Repeat steps 1-3 for the second shelf (A).
A
C
B
F
5-1 Repeat steps 1-2 for the remaining shelves (A).
Refer to image 4-1 for the assembled unit of stationary option.
5-2. Repeat steps 1-2 for the remaining shelves (A).
Refer to image 4-2 for the assembled unit of mobile option.
6. Place the shelf liner on top of the shelf。Finish.
D
D
D
