Buyers LT12 Installation Instructions

LT12 Trimmer Rack
for Enclosed Landscape Trailers
Before you begin installing:
1. Read and understand these instructions
completely.
2. Verify that you have received all the parts
listed in the bill of materials.
CAUTION
Always wear safety glasses when using power tools.
Tools Required:
• 9/16" Wrench or Socket
• Electric Drill
• 1/4" Drill Bit
• 3/4" Plywood Shim Strips
• Shim Screws
1. Locate a suitable place on the wall to mount the trimmer
rack. The two racks should be mounted 28" to 34" apart. The
large hook on the one upright should engage the trimmer's grip
and the smaller hooks on the other upright should engage the
shaft of the trimmer. Do not clamp on or near the throttle trigger
of the trimmer. Verify the determined positions will work with
all the trimmers you wish to mount in the rack. Bent shaft trim-
mers require the brackets to be mounted closer together than
straight shaft trimmers.
2. In order to mount this rack to the enclosed trailer, you must
first add 3/4" plywood shim strips to the walls. These shim
strips must be attached to at least two wall support studs with
suitable fasteners. If you don't know what kind or length of fas-
tener to use contact your trailer dealer or manufacturer for their
recommendation.
3. Hold the trimmer racks against the shims, hold level, and
mark the position of the four 3/8" holes in each rack. Make sure
that the two racks are in line with each other and are at the
proper spacing.
WARNING
Check under the trailer and/or fender for locations of brake
lines and electrical wiring etc., before drilling any holes. Any
damage to trailer during installation is installer's sole respon-
sibility.
Installation Instructions

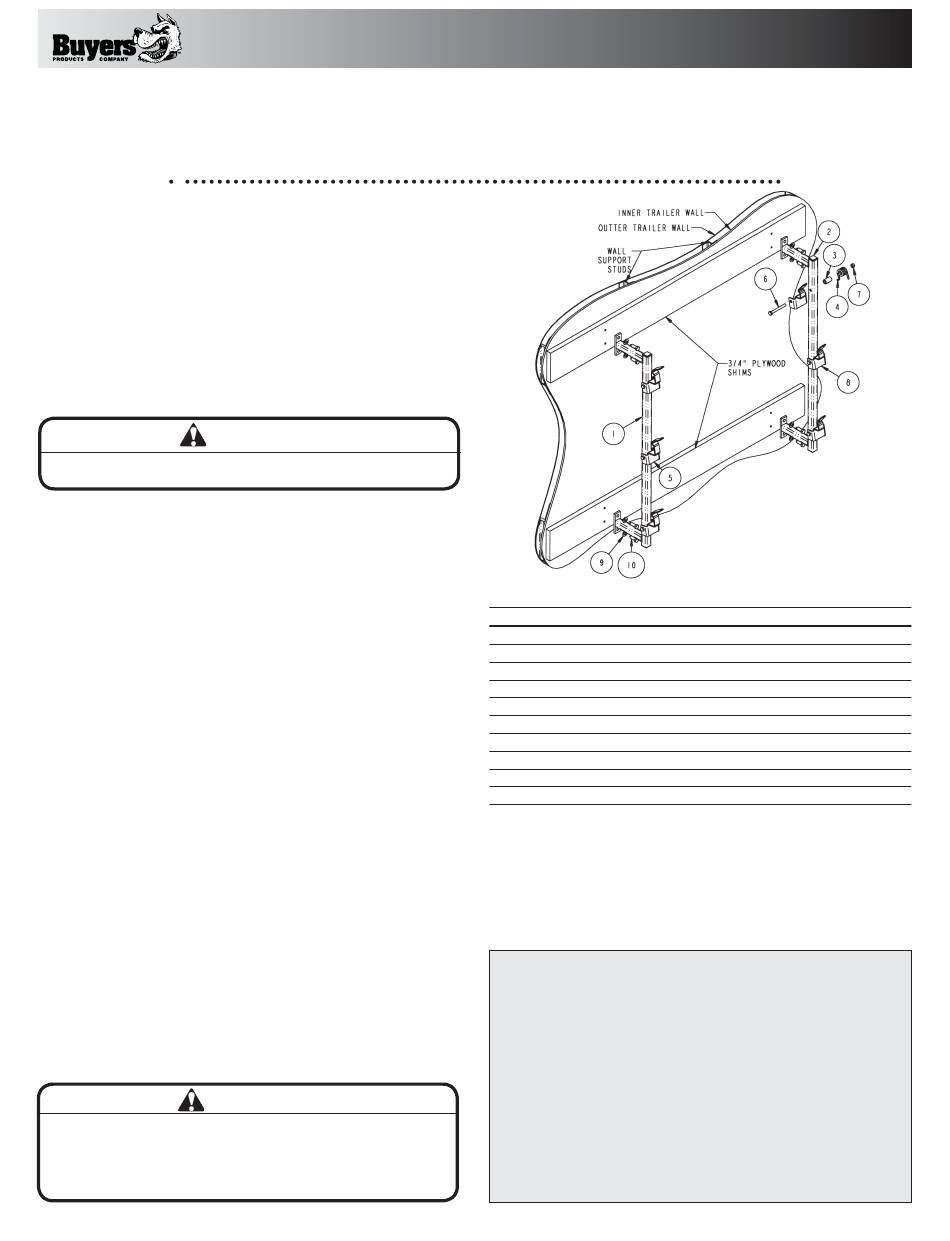

Bill of Materials
ITEM PART NO. QTY. DESCRIPTION
1 3004444 2 Base Weldment, Trimmer Rack, LT12
2 0204300 4 Plug, Plastic Finish, 1" Sq Tube
3 3004083 6 Guide, Spring
4 3004086 6 Spring, Torsion Trimmer Rack
5 3005286 3 Hook, Grip Pivot
6 - 6 Screw, HHC 5/16-18 x 2-3/4 Gr 5 Zn
7 - 6 Nut, Nylock 5/16-18 Zn
8 3004082 3 Hook, Pivot
9 - 8 Washer, Flat 3/8" SAE Zn
10 - 8 Screw, Hex Head Lag, 3/8 x 1-1/4 Zn
4. Drill eight 1/4" pilot holes in the positions just marked for
the 3/8" lag screws. Be extremely careful not to drill through the
outside trailer wall.
5. Fasten the racks to the trailer wall with the eight 3/8" x
1-1/4" lag screws and eight 3/8" flat washers supplied.
WARRANTY
Buyers Products Co. warrants all truck/trailer hardware manufac-
tured or distributed by it, to be free from defects in material and
workmanship for a period of one year from date of shipment.
Parts must be properly installed and used under normal conditions.
Any product which has been altered, including modification, mis-
use, accident or lack of maintenance will not be considered under
warranty. Normal wear is excluded. The sole responsibility of Buyers
Products Co. under this warranty is limited to repairing or replacing any
part or parts which are returned, prepaid, and are found to be defective
by Buyers Products Co. Authorization from Buyers Products Co. must
be obtained before returning any part. No charges for transportation
or labor performed on Buyers' products will be allowed under this
warranty.
www.buyersproducts.com
Phone (440) 974-8888
Fax 800-841-8003
3004481 Rev. C
