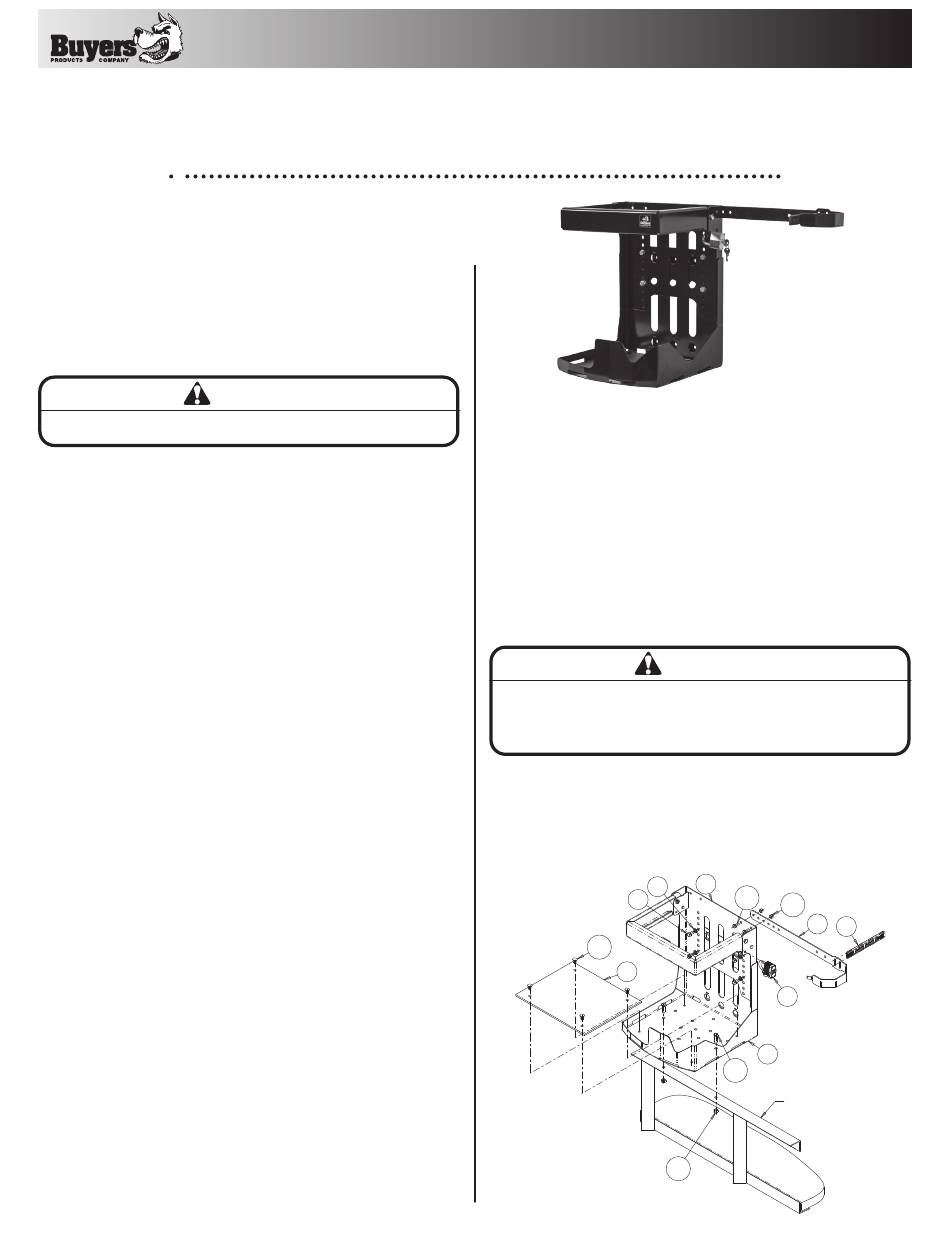

Buyers LT24 Installation Instructions

LT24 Adjustable Blower Rack
for Landscape Trailers
Before You Begin Installing:
1. Read and understand these instructions completely.
2. Verify that you have received all the parts listed in the bill of
materials for your model number.
CAUTION
Always wear safety glasses when using power tools.
Fitting The Adjustable Blower Rack To Your
Backpack Blower
Tools Required:
• (1) 9/16" Wrench and/or Socket
• (2) 1/2" Wrenches and/or Sockets
1. Place base pad (item 4) in the bottom of the blower rack base
(item 1). Do not fasten pad until the end of the installation process.
2. Assemble the pad lock (item 6) to thru the three holes in the
latch assembly (item 2) locking the latch in the lower position (90
degrees to latch base).
3. Place your backpack blower in the base on top of the pad
with the backpack straps towards the vertical wall of the base.
4. Place the locked latch assembly over the backpack blower
with the latch base nested inside the vertical wall of the base.
Slide the latch assembly down until it is resting on the blower
housing. Note which latch holes line up with the welded nuts in
the base. If necessary, use the next lower hole. Make sure the
latch will be no more than one inch above the blower housing.
5. Remove latch assembly and backpack blower from the base.
Fasten the latch assembly to the base using four 3/8" screws
(item 8) and four lock washers (item 9) in the holes determined
in step 4.
6. Unlock the latch and place the backpack blower back into
the rack and lower the latch to verify the space between the
latch and blower housing is no larger than one inch.
7. Assembly the rubber strap (item 7) into the tube holder hook
(item 3). For 4-5" diameter tubes use the slot further from the
bottom of the hook. For tubes smaller than 4" diameter use the
slot closer to the bottom of the hook.
8. Strap tube hook to the backpack blower's tube and align
the holes in the end of the hook with the two holes in the upper
corner of the latch assembly base. Determine the preferred
position and fasten the hook to the latch assembly using
two 5/16" screws (item 10) and lock nuts (item 11). Note: for
enclosed trailers the blower tube hook may be independently
mounted to change the angle of the blower tube due to height
and space restrictions.
Installation Instructions
Utility Trailer Installation Instructions
Tools Required:
• (2) 9/16" Wrenches and/or Sockets
• (1) Electric Drill
• (1) 13/32" Drill Bit
1. Place the assembled backpack blower rack on the rail or
fender of your utility trailer where you would like it mounted. Make
sure the rack does not extend past the widest part of the trailer.
2. With the base pad removed mark the position of two holes
on the trailer rail or on the fender. Make sure the marks made on
the trailer rail are centered in the angle's web.
Check for locations of brake lines and electrical wiring
etc., before drilling any holes. Any damage to trailer during
installation is installer's full responsibility.
3. Drill 13/32" holes in the positions marked.
4. Bolt the backpack rack to the trailer with two 3/8-16 x 1-1/4
screws (item 12) and nuts (item 13) supplied and tighten
5. Install base pad (item 4) to the bottom of the rack using at
least two of the press-in panel retainers (item 15).
8
15
4
1
www.buyersproducts.com
Phone (440) 974-8888
Fax 800-841-8003
WARNING
2
9
10
11
3
6
1
12
TRAILER
RAIL
13
7
—continued
