Buyers LT25 Installation Instructions

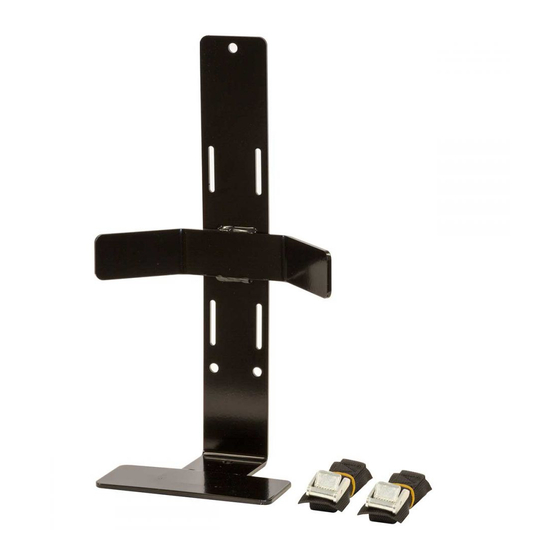

LT25 Water Cooler Rack
for Utility Landscape Trailers
Holds most 5-gallon water coolers.
Before you begin installing:
1. Read and understand these instructions
completely.
2. Verify that you have received all the parts
listed in the bill of materials.
CAUTION
Always wear safety glasses when using power tools.
WARNING
Check under the trailer and/or fender for locations of
brake lines and electrical wiring etc., before drilling any
holes. Any damage to trailer during installation is install-
er's sole responsibility.
The water cooler rack must be mounted with
back and bottom support or back support. This
rack is not to be mounted with bottom support
only.
Utility Trailer Installation Instructions
Tools Required:
• (2) 9/16" Wrenches and/or Sockets
• Electric Drill
• 13/32" Drill Bit
1. Find a location on your trailer where the water
cooler rack can be mounted with back and bottom
support or back support. Make sure the rack does
not extend past the widest part of the trailer.
Holding the rack level mark three hole locations.
2. Drill 13/32" holes in the positions marked.
Installation Instructions
Bill of Materials
ITEM PART NO. QTY.
1 3000050 1
2 3004710 2
3 - 6
4 - 3
5 - 3
3. Thread straps through the slots in the rack
and then the buckle as shown in the illustrations.
4. Bolt the rack to the trailer with three 3/8-16
x 1-1/4 screws, six 3/8" flat washers, and three
3/8-16 nylock nuts and tighten.
5. Assemble the water cooler into the rack
and tighten straps. Cut off the end of each strap
approximately 6-8" from buckle and carefully burn
the ends with a cigarette lighter to prevent fraying.
1
www.buyersproducts.com
Phone (440) 974-8888
Fax 800-841-8003
DESCRIPTION
Water Cooler Rack, Weldment
Strap, 60" Lashing w/Cam Buckle
Washer, Flat 3/8 USS Zn
Screw, HHC 3/8-16 x 1-1/4 Gr 5 Zn
Nut, Nylock 3/8-16 x 7/16 Zn
—continued
