Ram Mounts X-Grip RAM-HOL-UN11U Manual

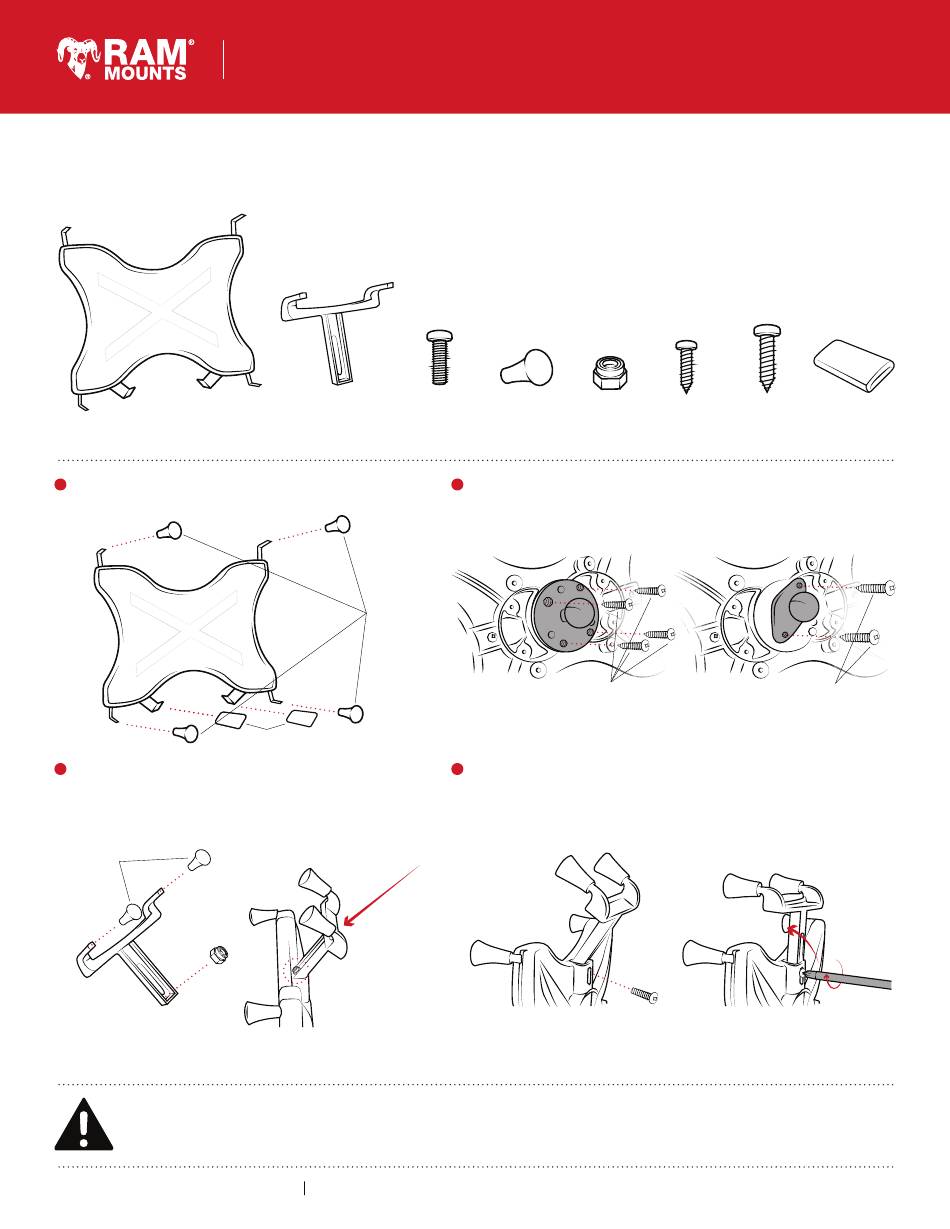

Parts Index
* not to scale
A
x 1
1 Attach rubber caps to each prong on (A) sub assembly.
A
Position (E) nut face up at the bottom of slotted hole on (B) slide
3
support. Carefully set the support into the bottom hole of (A)
sub assembly at an angle to prevent the nut from falling inside
the assembly. Hold the support at that angle for Step 4.
D
E
B
x 2
Safety Precaution
Do not install this product near or over an airbag deployment area or in a location that obstructs the driver's vision or interferes with vehicle
operation. National Products, Inc does not assume responsibility or liability for any such personal injury, death or property damage.
To see more mounting options, visit rammount.com
rammount.com
1.800.497.7479
support@rammount.com
B
x 2
#8-32 x 1/2"
D
H
This document, including images, may not be reproduced partly or fully without the expressed written consent of National Products, Inc.
C
D E
x 2 x 8 x 2
#8-32
2 When attaching ball, use the (F) 1/2" screws for metal or round ball adapters.
Use (G) 5/8" screws for composite diamond ball adapters.
F
While holding the slide support, insert (C) screw at angle to line up with (E) nut
4
and thread by hand until locked in with threads. Straighten the support and
continue tightening the screw. Repeat Steps 3 & 4 for second (B) slide support.
RAM X-Grip
®
G
F
x 4 x 2
#8 x 1/2" #8 x 5/8"
C
RMR-INS-UN9
®
H
x 2
G
