USB 1-2 Level /USB 3-4 Level

The USB 1-2 LEVEL and USB 3-4 LEVEL knobs are used for boosting or cutting the amount of signal
sent out the USB port to the computer. These controls are to be used if the signal level of the input source
(mic, line, guitar) isn't optimized into your recording software (consult the Pro Tracks User's Guide for infor-
mation on proper recording levels). If the signal is too hot to Pro Tracks, use these controls to decrease the
level. The USB 1-2 Level and USB 3-4 Level knobs control the level for each USB pair of outputs so for
summic
example, if is the selected USB 1-2 Source, increasing the level for the mic 6dB going up USB 2 will
also increase the summed signal by 6dB going up USB 1. To increase or decrease the level of audio going up
to the computer, follow these steps.
1. Play/sing through the RPx400 and check the level of signal reaching the recording software (consult the
Pro Tracks User's Guide for information on how to view recording signal levels).
2. Use which ever USB Level knob to boost or cut the signal level going to the recording software. The
boost/cut range are -6db (

Using the RPxFC for Recorder Functions

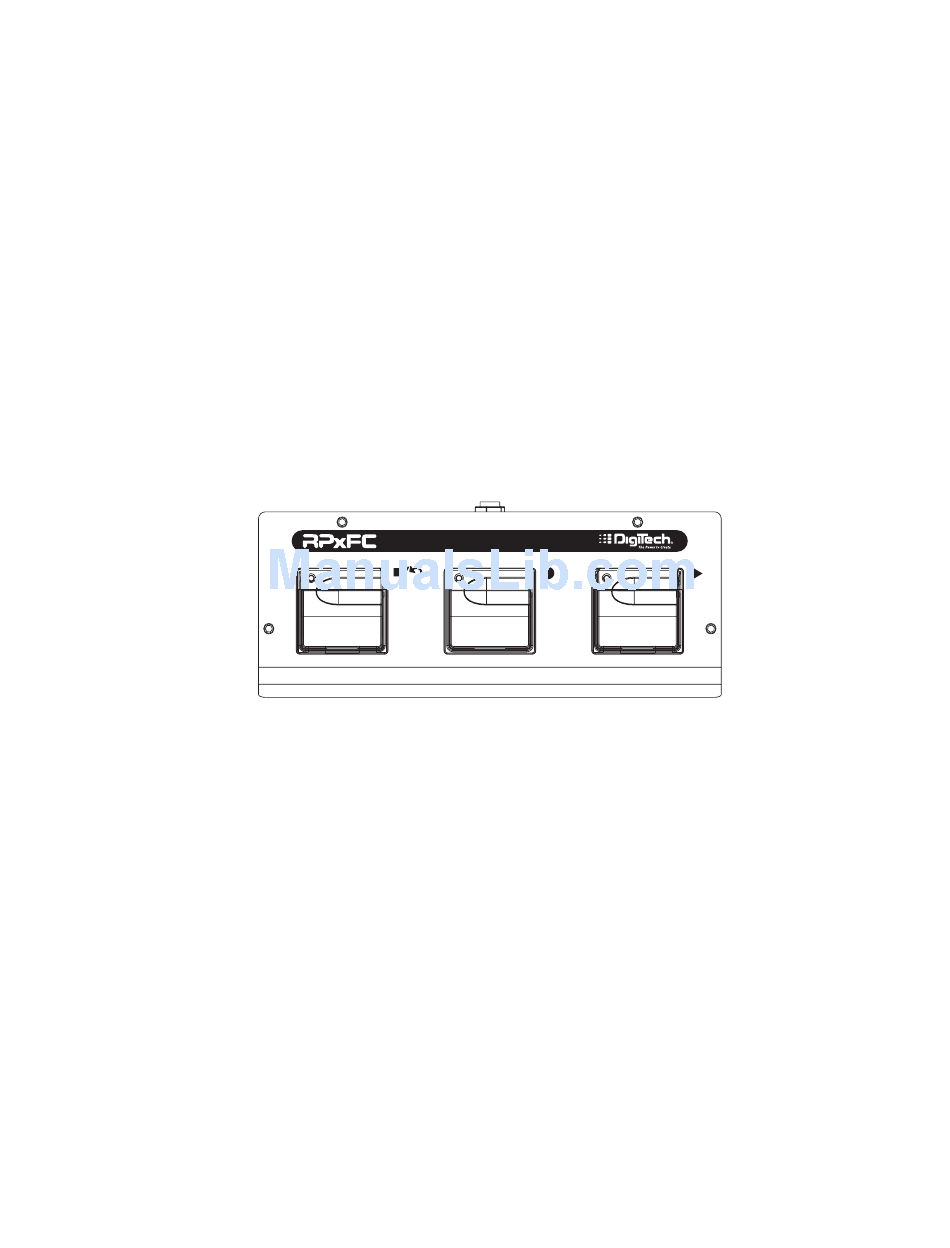

The RPx400 is equipped with a footswitch jack that lets you connect an optional RPxFC for controlling the
RPx400's recorder. This 3-button footswitch features functions for STOP/UNDO, RECORD, and PLAY.
The RPxFC is an ideal companion for recording as it lets you leave your RPx400 footswitches setup for
changing presets and switching amp channels while the RPxFC is used specifically for controlling the Pro
Tracks recording software. Use only a TRS stereo 1/4" cable when connecting the RPxFC to the RPx400.
The RPxFC functions are exactly the same as the RPx400 footswitches when it is in Recording mode. Refer
to section Using the RPx400's Footswitches for Recording for operating instructions.
The RPx400 and Recording
usb1-2 -6
) to +24dB (
