RP-12 Owner's Manual
The Effects Library Buttons
About The I /O Module
From Inst.
Modifying Factory Programs
The Effects Library buttons are used to jump to specific places in a
Program. For example, if a Program contains two choruses and you
want to change the delay time on only one of them, you could press
the <MOD> Effects Library button from Program Title screen and you
would jump to the first Parameter of the first chorus in the Algorithm.
Press the button again, and you are taken to the first Parameter of the
next chorus in the Algorithm.
Each Program in the RP-12 is equipped with Compression, Distortion,
Clean / Distortion Level, Noise Gate, DSP Master Level, Parametric
EQ, Wet/Dry Mix, and Cabinet Emulator controls. These items are per-
manent residents of every Algorithm in the unit.
This group of items is called the Input / Output Module (or I/O Module)
because they are always a part of both the input and output audio

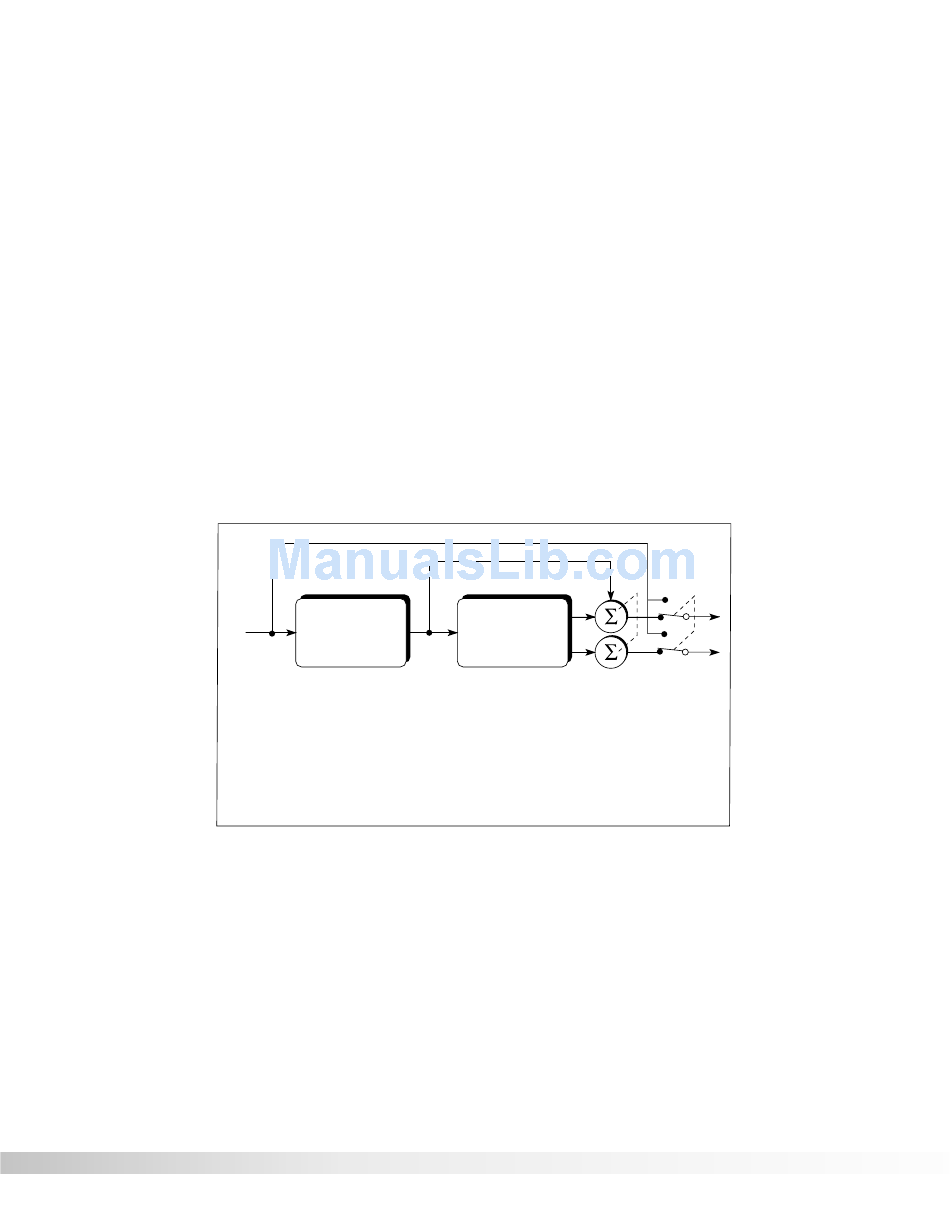

paths of the RP-12. The following diagram shows how the I/O Module
affects the signal as it flows through the unit.
I / O
Module
Compression (A)
Distortion (A)
Clean / Dist Level (A)
Noise Gate (D)
DSP Master Level (D)
Parametric EQ (D)
Cabinet Emulator (D)
The RP-12's Compression, Distortion, and Clean / Distortion Level are
analog for warmth and power. The Noise Gate, DSP Master Level,
Parametric EQ, Wet/Dry Mix and Cabinet Emulator are all accom-
plished in the digital section, for absolute flexibility and precision.
After you've had time to familiarize yourself with the RP-12, you may
find that there are several factory Programs that are very close to what
you're looking for, but need a few small tweaks to get them perfect.
Program 2 (Clean and Tight) has a chorus and delay. Let's assume
that in order to work in your application, it needs to have a 60Hz cho-
Algorithm
(Digital Section)
Reverb
Master Mix (D)
Delay / Sampler
Modulation
Pitch Shift
Mixers
Etc...
17
Bypass Switch
To Outputs
A = Analog
D = Digital
