DigiTech RP1000 Quick Start Manual

WHAT'S IN THE BOX

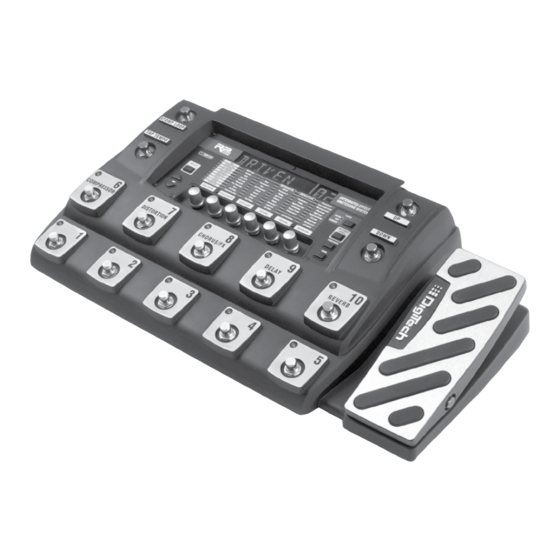

RP1000 Multi-Effects Switching System & USB Recording Interface
•
• Power Supply
GET X-EDIT
To get the X-Edit software, visit
http://digitech.com/en-US/products/RP1000#downloads.
REGISTER YOUR PRODUCT
To activate your warranty, please register at
http://digitech.com/en-US/support/warranty_registration.
GET THE OWNER'S MANUAL
Scan the QR code to get the owner's manual or visit
http://digitech.com/en-US/products/RP1000#documentation.
1
MAKING CONNECTIONS / APPLYING POWER
A. Set your amp(s) to a clean tone, set the
tone controls for a flat EQ response Live Application
(on most amps, this would be 0 or 5
on the tone controls), turn the volume
control(s) all the way down, then power
off the amp(s). If connecting to a mixer,
fully lower the corresponding channel
fader(s).
B. Make connections as shown in the
diagrams to the right, depending on
application type.
C. Connect the included power supply to
the POWER input jack and plug it into
an available AC outlet.
D. Set the RP1000's MASTER LEVEL
control to 30.
E. Power on your amp(s). slowly raise the
amp volume control(s) for the desired
volume. If using a mixer, adjust each
channel's gain/trim and fader controls
for the desired volume.
2
A. To bypass effects, press the active 1-5 footswitch. The display will read "BYPASS".
Recording / Practice Application
B. To exit Bypass mode, press the active 1-5 footswitch again.
C. To use the Tuner, press and hold the active 1-5 footswitch for 2 seconds. The display will
briefly read "TUNER" then enter Tuner mode.
D. Play a note on
the guitar. The
note will be
shown in the
display and
arrows in the
display will
indicate if the
note is sharp,
flat, or in tune.
E. To exit Tuner
mode, press
any of the 1-10
footswitches.
BYPASSING EFFECTS & USING THE TUNER
In Tune
Flat Sharp
E
Press for Bypass, hold for Tuner
