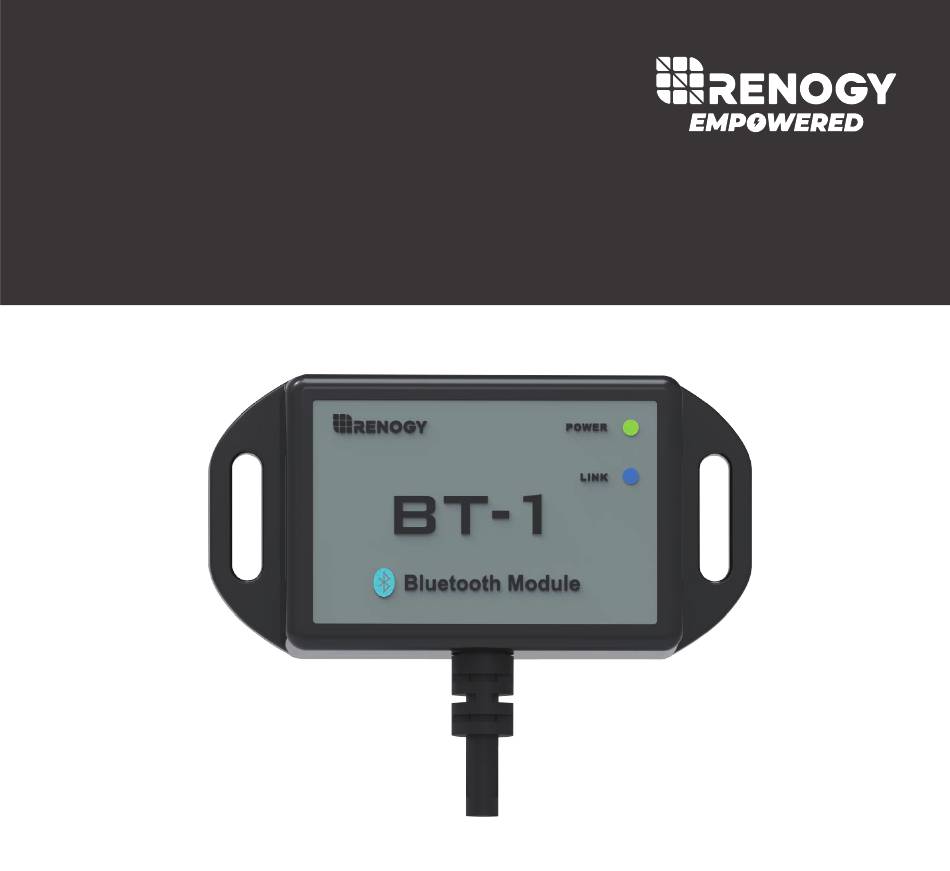

  • Page 1 BT-1 BLUETOOTH MODULE Bluetooth Module for Solar Charge Controllers Version 1.0...

  • Page 2: General Information

    General Information The Renogy BT-1 is a great addition to any compatible Renogy solar charge controllers. Powered by its RJ12 communication port, the BT-1 provides wireless monitoring of system data and allows users to change parameters through the Renogy BT/Renogy DCHome smart phone App.

  • Page 3: Identification Of Parts

    Identification of Parts Mounting Hole Power Indicator Communication Status Indicator Product Model Communication Cord...

  • Page 4: Operation

    Operation Connection Connect the BT-1 Bluetooth module to any Renogy solar charge controller with an RJ12 port and RS232 communication protocol. Monitoring Solar Panel status: Normal Voltage Current Power 14.20V 0.77A Battery status: Normal Voltage: 13.40V Current: 0.84A 100% 25℃...
  • Page 5 Green Power Indictor: Status Note Power Indicator Solid (Green) Power On Power Off Blue Communication Indicator: Status Note Flashing (Blue) Communicating Link Indicator Stand by Compatible Models Compatible Models A ll Renogy Controllers with RJ12 port Communication Protocol RS232 Port Type RJ12...

  • Page 6: Technical Specifications

    Technical Specifications Description Parameter Model BT-1 Input Voltage Standby Power Consumption 0.04W Operating Power Consumption 0.05W Communication Range ≤82ft Fixed Baud Rate 9600bps Serial Baud Rate Communication Protocol RS232 Port Type RJ12 Cable Length 5.00m (16.4ft) 67.3 X 35 X 14mm Dimensions 2.65 X 1.38 X 0.55in...
  • Page 7 Please ensure your device’s Bluetooth setting is turned on. Select: Configuration > Search Devices > Device The green indicator on the BT-1 will turn on once it has successfully connected to the power. The blue indicator on the BT-1 will blink once it has successfully connected...
  • Page 8 RENOGY.COM Renogy reserves the right to change the contents of this manual without notice. https://ca.renogy.com 2775 E Philadelphia St, Ontario, CA 91761, USA supportca@renogy.com 909-287-7111 www.renogy.com support@renogy.com https://au.renogy.com supportau@renogy.com 苏州高新区科技城培源路1号5号楼-4 400-6636-695 https://uk.renogy.com https://www.renogy.cn supportuk@renogy.com support@renogy.cn https://www.renogy.jp https://de.renogy.com supportjp@renogy.com supportde@renogy.com...
