Renogy RNGBTCM001 User Manual

Renogy RNGBTCM001 User Manual

Bluetooth communication module

Advertisement

Quick Links

RENOGY
RNGBTCM001 Bluetooth communication Module
User Manual
16 Jun. 2023
Version: V1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the RNGBTCM001 and is the answer not in the manual?

Questions and answers

Summary of Contents for Renogy RNGBTCM001

  • Page 1 RENOGY RNGBTCM001 Bluetooth communication Module User Manual 16 Jun. 2023 Version: V1.0...
  • Page 2 User Manual.  Renogy is not responsible or liable for the failures, damages, or injuries resulting from repair attempted by unqualified personnel or improper installation and operation.
  • Page 3: Table Of Contents

    CATALOG 1. Introduction ............................4 2. Production description ........................4 2.1 Bluetooth module ........................4 2.2 RF antenna ..........................5 2.3 Application note ........................6 3. Label and FCC ID & IC ........................7 5. Statements ............................8 6. Manufacturer information ....................... 12...
  • Page 4: Introduction

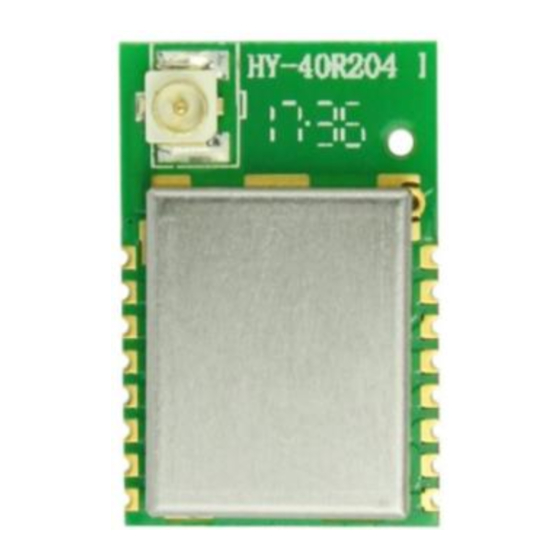

    The Bluetooth communication contains two parts, as below figure. The RNGBTCM001 figure The antenna should be assembly to the external of unit’s shell when RNGBTCM001 is used to transmit data for a unit. The Bluetooth should be welding to PCB of unit. 2.1 Bluetooth module...
  • Page 5: Rf Antenna

    The detailed interface definition see HY-40R204IC specifications. 2.2 RF antenna The antenna contains connection wire, antenna, protection case,nut. As below. Protection case antenna The RF antenna figure...
  • Page 6: Application Note

    The antenna is assembly that should open hole on shell of unit, the hole size is 6.3mm as below. Assembly hole size 2.3 Application note  The around antenna placement that is assembled on unit’s case should be near metal and prevent material existence of electromagnetic radiation, this will affect the transfer distance.
  • Page 7: Label And Fcc Id & Ic

    The attention note show in below figure. 3. Label and FCC ID & IC Label should contain model number and FCC ID and IC number. The model number of Bluetooth communication module is RNGBTCM001. FCC ID is 2ANPB-RIV1230RCH. IC is 23590-RIV1230RCH.
  • Page 8: Statements

    Return loss VSWR 2.4GHz measured data 2.5GHz measured data 5. Statements FCC/Industry Canada Statement (to be placed on End Products)Federal Communications Commission (FCC) Statement FCC Statements: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference...
  • Page 9 designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 10 by the OEM integrator will require additional testing and evaluation. 2.6 RF EXPOSURE CONSIDERATIONS: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This product must be installed and operated with a minimum distance of 20 cm between the radiator and user body.OEM integrator shall equipped the antenna to compliance with antenna requirement part 15.203&...
  • Page 11 2.9 INFORMATION ON TEST MODES AND ADDITIONAL TESTING REQUIREMENTS: Data transfer module demo board can control the EUT work in RF test mode at specified conditions. This radio module must not be installed to co-locate and operating simultaneously with other radios in the host system except in accordance with FCC multi-transmitter product procedures.
  • Page 12: Manufacturer Information

    Contains IC: 23590-RIV1230RCH or Contains transmitter module IC: 23590-RIV1230RCH 6. Manufacturer information Manufacturer: RENOGY New Energy Co., Ltd Address: Room 624-625, Taicang German Overseas Students Pioneer Park, No.66 Ningbo East Road, Taicang Economic Development Zone, Taicang, JiangSu, 215000 China...
