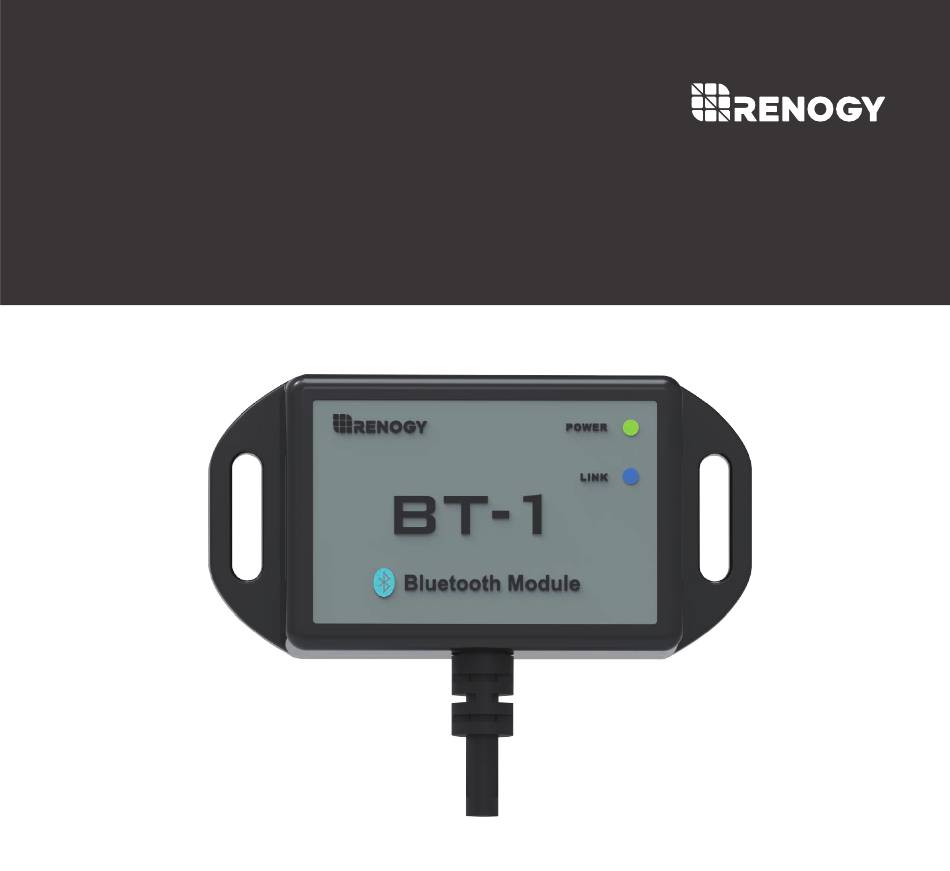

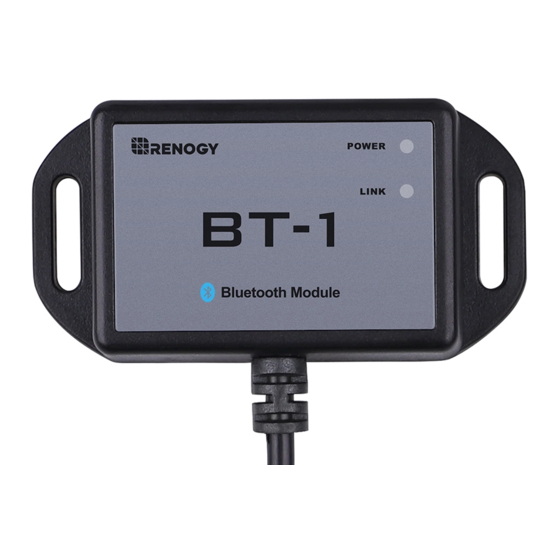

- Page 1 BT-1 BLUETOOTH MODULE Bluetooth Module for Solar Charge Controllers Version 2.0...
-
Page 2: General Information
General Information The Renogy BT-1 is a great addition to any compatible Renogy solar charge controllers. Powered by its RJ12 communication port, the BT-1 provides wireless monitoring of system data and allows users to change parameters through the Renogy BT/Renogy DC Home smart phone App. -
Page 3: Key Features
Key Features Wirelessly monitor and control compatible solar charge controllers via Bluetooth Connects to our user-friendly smart phone App, Renogy BT/Renogy DC Home, to keep track of your system Embedded exclusive Bluetooth chip with high efficiency and low energy consumption Bluetooth 4.2 and BLE technology provides fast and uninterrupted... -
Page 4: Identification Of Parts
Identification of Parts Mounting Hole Power Indicator Communication Status Indicator Product Model Communication Cord... - Page 5 RJ12 Port...
- Page 6 To Download App The Android version of the Renogy BT APP is available to download on Renogy.com and the Google Play Store. In the Google Play Store, simply search “Renogy BT”or “Renogy DC Home” in App store to download. For IOS version, simply search “Renogy BT” or “Renogy DC Home”in App store to download.
-
Page 7: Operation
Operation Connection Connect the BT-1 Bluetooth module to any Renogy solar charge controller with an RJ12 port and RS232 communication protocol. Monitoring Solar Panel status: Normal Voltage Current Power 14.20V 0.77A Battery status: Normal Voltage: 13.40V Current: 0.84A 100% 25℃... - Page 8 Solid (Green) Power On Power Off Blue Communication Indicator: Status Note Flashing (Blue) Communicating Link Indicator Stand by Compatible Models A ll Renogy Controllers with RJ12 port RNG-CTRL-ADV30 RNG-CTRL-RVR30 Compatible Models RNG-CTRL-WND10 RNG-CTRL-RVR40 RNG-CTRL-WND30 RNG-CTRL-RVR60 RNG-CTRL-RVR20 RNG-CTRL-RVR100 Communication Protocol RS232...
- Page 9 How to Connect Via Renogy BT App and Renogy DC Home App: For Renogy BT App: Open the Renogy BT App, select “Device Info”, then click “Search Device”(Please turn on Bluetooth on your smartphone, or you will not be able to findthe device), select the device that you want to connect.
- Page 10 For Renogy DC Home App: 1.First-time users of the Renogy DC Home App will need to create an account. Ifyou have an existing Renogy.com account, you can use those same credentials.Otherwise, you will need to register a new account.
- Page 11 2.After logging in successfully, you need to add your device. You can do this byclicking the blue plus button located on the upper right corner or by tapping theblue “+Add devices” link at the bottom of the screen.
- Page 12 3.An Operation Guide will pop up. Follow the directions by turning on your device’sBluetooth and then selecting “Next”. After confirming your connection, tap thecheckbox and then select “Next”. The App will now look for the device.
- Page 13 4.When a device is found, select the Bluetooth device, then name the device if youwish.Afterwards, press “Next” and then select the type of device you areconnecting. In this example, we will select Charge Controller.When successful, the App will confirm the product SKU. If the SKU is correct, click“OK” to start communicating with your Rover 30Amp.
- Page 14 5.In the main interface, you can see the general parameters of the chargecontroller under “my devices” section.
-
Page 15: Technical Specifications
Technical Specifications Description Parameter Model BT-1 Standby Power Consumption 0.04W Operating Power Consumption 0.05W Communication Range ≤82ft（25m） Fixed Baud Rate 9600bps Serial Baud Rate Communication Protocol RS232 Port Type RJ12 Cable Length 5.00m (16.4ft) 67.3 X 35 X 14mm Dimensions 2.65 X 1.38 X 0.55in... -
Page 16: Fcc Compliance Statement
FCC Compliance Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 17 – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. （3）FCC 20cm Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
- Page 18 This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2)This device must accept any interference, including interference that may cause undesired operation of the device.
- Page 19 The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance. Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5 de RSS 102 etla conformité...
- Page 20 RENOGY.COM Renogy reserves the right to change the contents of this manual without notice. https://ca.renogy.com 2775 E Philadelphia St, Ontario, CA 91761, USA supportca@renogy.com 909-287-7111 www.renogy.com support@renogy.com https://au.renogy.com supportau@renogy.com 苏州高新区科技城培源路1号5号楼-4 400-6636-695 https://uk.renogy.com https://www.renogy.cn supportuk@renogy.com support@renogy.cn https://www.renogy.jp https://de.renogy.com supportjp@renogy.com supportde@renogy.com...
