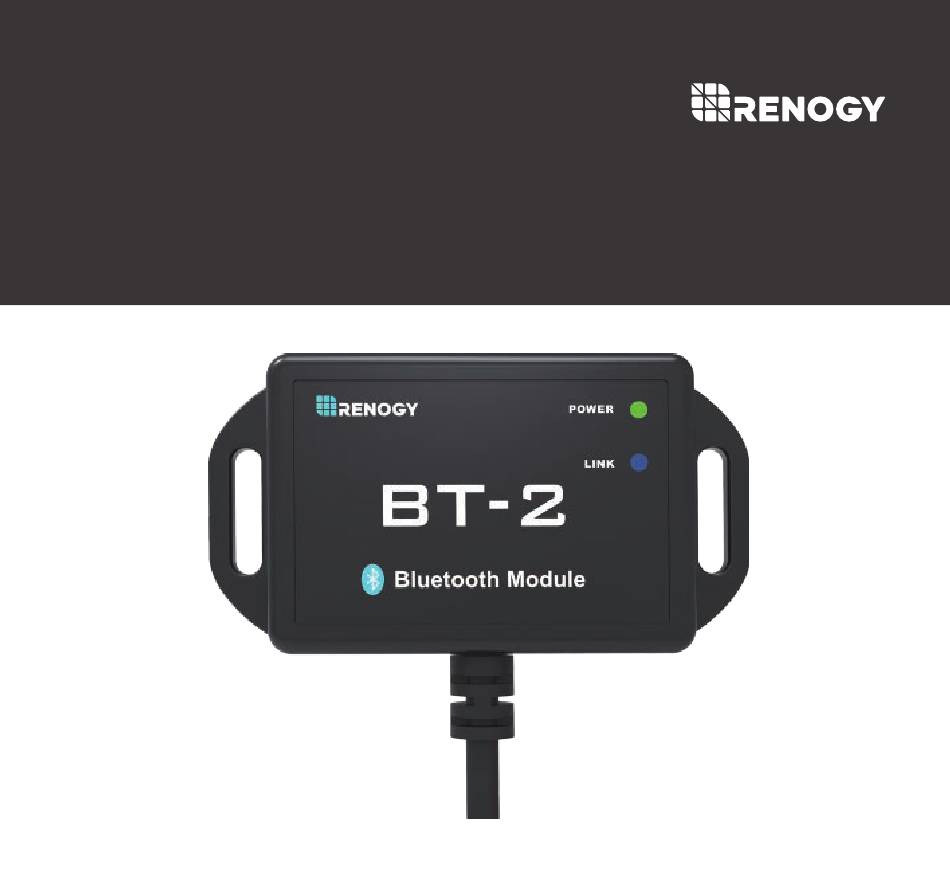

  • Page 1 BT-2 BLUETOOTH MODULE Bluetooth Module for Renogy Solar Products Version 2.1...
  • Page 2: General Information

    General Information The Renogy BT-2 is a new generation of Bluetooth module for Renogy solar charge controllers, smart lithium batteries, Dual Iput DC-DC, and inverter chargers. Powered by its RJ45 communication port, the BT-2 provides wireless monitoring of the system data and allows users to change parameters through...
  • Page 3: Key Features

    Key Features Wirelessly monitor and control compatible solar charge controllers via Bluetooth Connects to our user-friendly smart phone App, Renogy DC Home, to keep track of your system Embedded exclusive Bluetooth chip with high efficiency and low energy consumption Bluetooth 4.2 and BLE technology provides fast and uninterrupted...
  • Page 4: Identification Of Parts

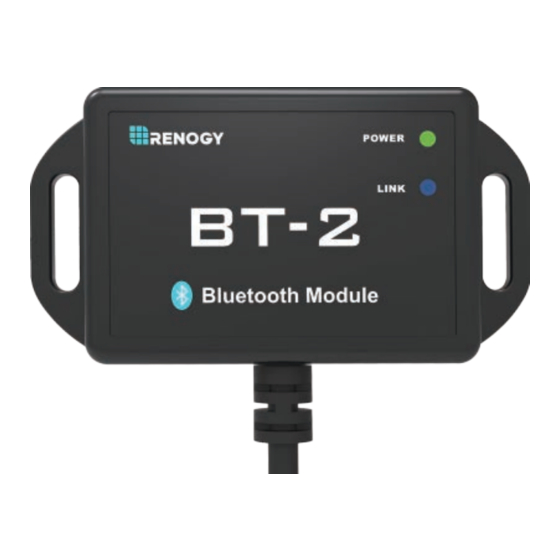

    Identification of Parts Mounting Hole Power Indicator Communication Status Indicator Product Model Communication Cord...
  • Page 5 RJ45 Port...
  • Page 6 To Download App The Android version of the Renogy DC Home APP is available to download on Renogy.com and the Google Play Store. In the Google Play Store, simply search “Renogy DC Home” in App store to download. For IOS version, simply search“Renogy DC Home”in App store to...
  • Page 7: Operation

    Operation Connection Connect the BT-2 Bluetooth module to any Renogy solar charge controller, smart lithium battery, Dual Iput DC-DC, and inverter charger with an RJ45 port and RS485 communication protocol.
  • Page 8 Communication status indicator Green Power Indictor: Status Note Power Indicator Solid (Green) Power On Power Off Blue Communication Indicator: Status Note Flashing (Blue) Communicating Link Indicator Stand by...
  • Page 9 Compatible Models All Renogy Products with RJ45 Port RCC20RVRE RBC30D1S Compatible Models RCC40RVRE RBC50D1S R-INVT-PGH1-10111S RBT100LFP12S R-INVT-PGH1-20111S Communication Protocol RS485 Port Type RJ45...
  • Page 10 How to Connect Via Renogy DC Home App: 1.First-time users of the Renogy DC Home App will need to create an account. If you have an existing Renogy.com account, you can use those same credentials.Otherwise, you will need to register a new account.
  • Page 11 2.After logging in successfully, you need to add your device. You can do this by clicking the blue plus button located on the upper right corner or by tapping the blue “+Add devices” link at the bottom of the screen.
  • Page 12 3.An Operation Guide will pop up. Follow the directions by turning on your device’s Bluetooth and then selecting “Next”. After confirming your connection, tap the checkbox and then select “Next”. The App will now look for the device.
  • Page 13 4.When a device is found, select the Bluetooth device, then name the device if you wish.Afterwards, press “Next” and then select the type of device you areconnecting. In this example, we will select Charge Controller.When successful, the App will confirm the product SKU.
  • Page 14 5.In the main interface, you can see the general parameters of the charge controller under “my devices” section.
  • Page 15: Technical Specifications

    Technical Specifications Description Parameter Model BT-2 Standby Power Consumption 0.04W Operating Power Consumption 0.05W Communication Range ≤82ft(25m) Fixed Baud Rate 9600bps Serial Baud Rate Communication Protocol RS485 Port Type RJ45 Cable Length 5.00m (16.4ft) 67.3 X 35 X 14mm Dimensions 2.65 X 1.38 X 0.55in...
  • Page 16: Fcc Compliance Statement

    FCC Compliance Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 17 – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. (3)FCC 20cm Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
  • Page 18 This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2)This device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 19 The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance. Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5 de RSS 102 etla conformité...
  • Page 20 RENOGY.COM Renogy reserves the right to change the contents of this manual without notice. https://ca.renogy.com 2775 E Philadelphia St, Ontario, CA 91761, USA supportca@renogy.com 909-287-7111 www.renogy.com support@renogy.com https://au.renogy.com supportau@renogy.com 苏州高新区科技城培源路1号5号楼-4 400-6636-695 https://uk.renogy.com https://www.renogy.cn supportuk@renogy.com support@renogy.cn https://www.renogy.jp https://de.renogy.com supportjp@renogy.com supportde@renogy.com...
