EASTONTECH EW Series Operation Manual

Wire stripping machine
Hide thumbs Also See for EW Series:
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
Edition No.: 2017 Rev 0
WENZHOU EAST WORLD IMPORT&EXPORT CO., LTD.
(CE, ISO9001)

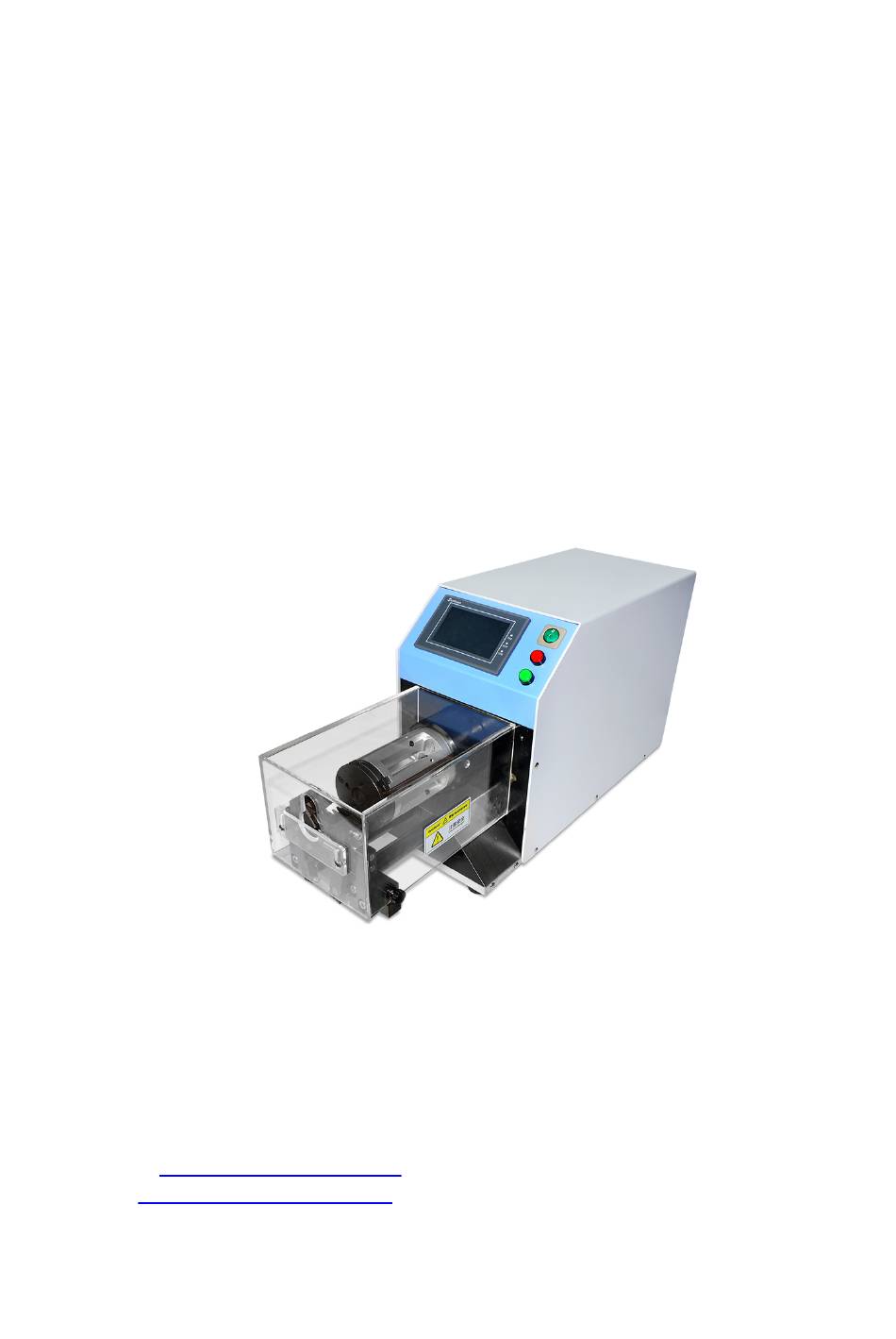

EW Series Wire Stripping Machine
Operation Manual
(FOR EW-06F)
ADDRESS: 701-5 FU QUAN BUILDING JINHU BLOCK RUIAN CITY, ZHEJIANG PROVINCE 325200
P.R.CHINA
Website:
www.ew-wirestripping.com
Email: candy.wuxiaojie@gmail.com; sales@ew-wirestripping.com
TEL/FAX:86-0577-66603688

Advertisement

loading
Need help?

Need help?

Do you have a question about the EW Series and is the answer not in the manual?

Questions and answers

Related Manuals for EASTONTECH EW Series

Summary of Contents for EASTONTECH EW Series

  • Page 1 Edition No.: 2017 Rev 0 WENZHOU EAST WORLD IMPORT&EXPORT CO., LTD. (CE, ISO9001) EW Series Wire Stripping Machine Operation Manual (FOR EW-06F) ADDRESS: 701-5 FU QUAN BUILDING JINHU BLOCK RUIAN CITY, ZHEJIANG PROVINCE 325200 P.R.CHINA Website: www.ew-wirestripping.com Email: candy.wuxiaojie@gmail.com; sales@ew-wirestripping.com...

  • Page 2: Technical Specification

    Technical Specification Model EW-06F Screen ： Touch Screen Wire Coaxial Display English/Chinese 138X86 Power AC220V/50HZ Driving Precision ball screw Stripping Length ： 0.1mm—48mm Size ： 185*280*600mm 0.01mm Weight ： 22kgs ： Stripping Length unit Wire Dia ： Blades: Tungsten Φ0.2mm—Φ6.99mm Cutting Depth: 0.01mm 0-45 ℃...

  • Page 3: Panel Operation

    Panel Operation Main screen 1. Start Stop Reset Count cleared Auto ： Shift from auto /manual mode. 2. Push-on starter ： choose start mode, 0 = press touch screen start; 1= pedal start 3. Program: save data. Continuation: automatic running after 1 program completed without further setting.
  • Page 4 Parameter screen 1. Auto advance speed ： control blades moving forward speed, the larger of the number is , the faster it works. Rotary cutter speed: control blades head rotary speed,the larger of the number is , the faster it rotates. 3.
  • Page 5 Manual Screen Detailed Setting 1. Wire head: the length of the first wire segment to be stripped...
  • Page 6 2. Stripping length: wire insulation length that the blades strip off; half stripping, stripping length ＜ wire head 3. Cutting length ： Blades rotary cutting time. The larger number it sets, the longer it rotates. 4. Rotary direction ：。 Blades head rotary direction, 0=clockwise , 1=counter-clockwise 5.

  • Page 7: Points Of Attention

    Points of Attention 1.Power: AC220 ， 50~60HZ. Please use stable power source. 2.Working environment: Place the machine in a workshop with room temperature 0-45℃ and good air flow, free from powder pressure,corrosion, chemicals,strong electromagnetic field. 3. Don’t share same power with machines of heat electromagnet. 4.

This manual is also suitable for:

Ew-06fEa10mt
