EASTONTECH EW Series Operation Manual

Stripping machine
Hide thumbs Also See for EW Series:

Advertisement

Quick Links

Download this manual
EW-06G OPERATION MANUAL
Edition No.: 2021 Rev 0
WENZHOU EAST WORLD IMPORT&EXPORT CO., LTD.
(CE, ISO9001)

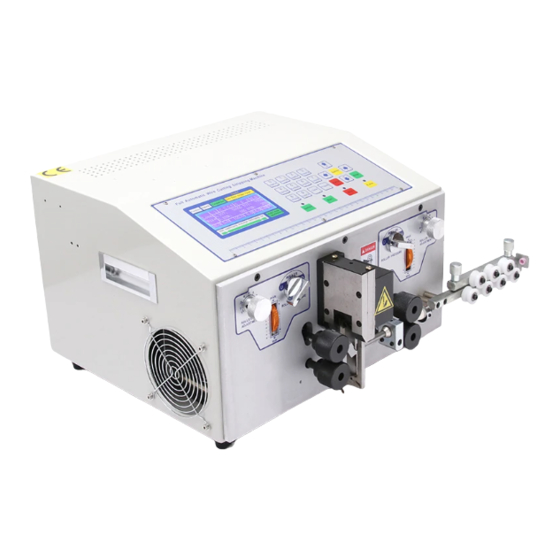

EW Series Wire Stripping Machine
Operation Manual
(FOR EW-06G)
Add:Building No.2 丨 Xingdong Industrial Park 丨 NO.188 Wangxin Road 丨 Dongshan
Street 丨 Ruian 丨 Zhejiang Province 丨 China P.C.-325200
Website: www.ew-wirestripping.com
Email:kitty@ew-wirestripping.com
Tel/Fax:+86-0577-66603688
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the EW Series and is the answer not in the manual?

Questions and answers

Related Manuals for EASTONTECH EW Series

Summary of Contents for EASTONTECH EW Series

  • Page 1 EW-06G OPERATION MANUAL Edition No.: 2021 Rev 0 WENZHOU EAST WORLD IMPORT&EXPORT CO., LTD. (CE, ISO9001) EW Series Wire Stripping Machine Operation Manual (FOR EW-06G) Add:Building No.2 丨 Xingdong Industrial Park 丨 NO.188 Wangxin Road 丨 Dongshan Street 丨 Ruian 丨 Zhejiang Province 丨 China P.C.-325200 Website: www.ew-wirestripping.com...

  • Page 2: Technical Specification

    EW-06G OPERATION MANUAL Technical Specification Model EW-06G Stripping length 90mm Diameter Increments 0.01mm Capacity 400-800pcs/h(depends on wire material) Wire diameter 3.0-18mm Length accuracy ±(0.002*L)mm Max. stripping layer 9 layers Noise level <70dBA Display Touch Screen Knife blade 4, material: Imports Switzerland tungsten steel Centering slab 4, material: Imports tungsten steel Automatically adjust core, the dynamo drives and...

  • Page 3: Panel Operation

    EW-06G OPERATION MANUAL Panel Operation Main screen 1. Start 2. Stop 3. Reset 4. Count cleared 5. Program: save data. Continuation: automatic running after 1 program completed without further setting. Eg. 1 means machine will stop for 1 second for another round of working. 6.
  • Page 4 EW-06G OPERATION MANUAL 11. Start screen: Return to the screen when the power is turned on. 12. Parameter screen: setting parameter. 13. Manual screen: Each action can be observed by entering this screen, which is convenient for manual adjustment, knife change or card line usage.
  • Page 5 EW-06G OPERATION MANUAL number is , the faster it rotates. Normally set it 45-55. 7. Assing time: the time for blowing air to the blades. The larger of the number is , the longer it blow air. 8. Line diameter: It is the outer diameter of the wire, if the OD is 5mm, we set it 4.5mm.
  • Page 6 EW-06G OPERATION MANUAL Name Thread Strip head Wire dia. Retract Cutting time Rotary Layer head strip First Layer Sec. layer Third layer 1. As shown in the figure above, first set the first layer "thread head" setting 6, the second layer "thread head" setting 3, and the third layer "thread head" setting 9, then the machine automatically runs the path: 6,3, 9.
  • Page 7 EW-06G OPERATION MANUAL...
  • Page 8 EW-06G OPERATION MANUAL 1. Wire head: the length of the first wire segment to be stripped 2. Stripping length: wire insulation length that the blades strip off; half stripping, stripping length＜wire head 3. Cutting length：Blades rotary cutting time. The larger number it sets, the longer it rotates.
  • Page 9 EW-06G OPERATION MANUAL How to change blades and blades protectors:...
  • Page 10 EW-06G OPERATION MANUAL Manual Screen : Video reference : https://youtu.be/sQLKfCBOJ44 Step 1 Cutting back -- to open blades backwards as Pos.1. Step 2 Man retreat-- to retreat blades lead screw backwards to leave enough space to unload the blades assembly. Step 3 Marking ---Make a marking in screw area like the red line to make sure correctly loading the blades assembly back after changing blades.

  • Page 11: Maintenance

    EW-06G OPERATION MANUAL Maintenance 15. 1.Maintenance video: https://youtu.be/ewd0_GdvXGE a. Daily cleaning the cable wastes around the blades b. Add grease oil periodically such as SKF brand in attachment. Points of Attention 1.Power: AC220， 50~60HZ.（110V for North America regions）Please use stable power source. 2.Working environment: Place the machine in a workshop with room temperature 0-45℃...

This manual is also suitable for:

Ew-06g
