Cleaning instructions
1) Fill around 700mL Thinner into container, attach container back to sprayer gun, spray into
waste bin and waving gun at same time to clear up the internal paint delivery channel.

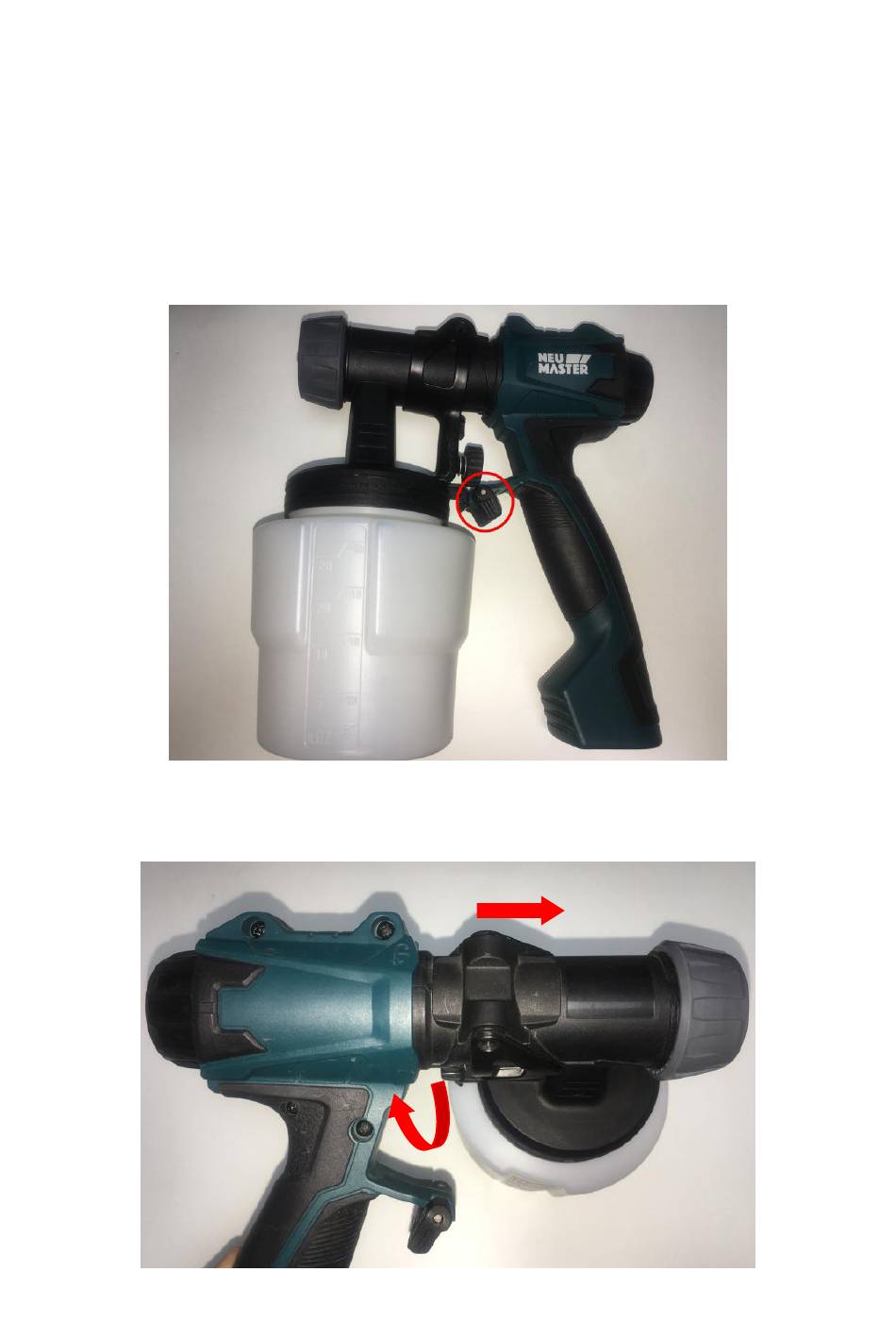

2) Turn to unlock the handle off the container seat as below image shown.
3) Counter clockwise turn handle until unlock mark aligned, pull gun head out for cleaning.
Advertisement
Related Manuals for NEU MASTER N3140
Summary of Contents for NEU MASTER N3140
- Page 1 Cleaning instructions 1) Fill around 700mL Thinner into container, attach container back to sprayer gun, spray into waste bin and waving gun at same time to clear up the internal paint delivery channel. 2) Turn to unlock the handle off the container seat as below image shown. 3) Counter clockwise turn handle until unlock mark aligned, pull gun head out for cleaning.
- Page 2 4) Counter clockwise turn cover as below image shown teardown cover, direction adjustment handle, bracket, nozzle. 5) Below two images shown the components which need be cleaned after each spraying project.
- Page 3 6) The connecting tube between gun head and container need wash with included brush the remove the paint inside, please make use the thinner recommended by the paint manufacturer.
- Page 4 7) And make sure clean all these thread for better sealing of next painting project. 8) Use the needle (included) to remove the remaining paint off these holes before cleaning.
- Page 5 Assembly of cleaning parts After cleaning, dry all components in the air, then put them all back in place ready for next project. Steps as below 1) Put container sealing washer in place. 2) Press tube back in place, make sure it been fit all the way in.
- Page 6 3) Assembly sprayer head components in order as below image shown 4.1) Use the positioning rib on nozzle to align the fit with bracket 4.2) Assembly nozzle with bracket into gun head housing.
- Page 7 4.3) Put direction adjustment handle back. 4.4) Put cover on and clockwise turn until all previous component tightly pressed.
- Page 8 5)Gun assembly 5.1) Align arrow mark on head with the parting line of handle, Pull them against each other until stopped. 5.2) Clockwise turn handle until stopped.
- Page 9 5.3) Lock handle back onto the gun head as below image shown.
