Summary of Contents for NEU MASTER NSG0060-18

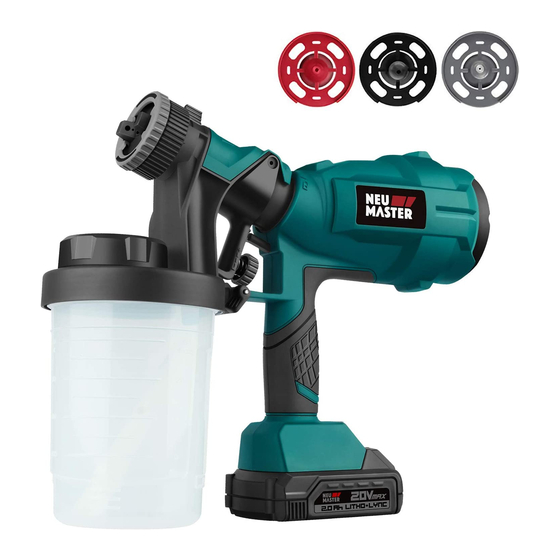

- Page 1 NSG0060-18 Cordless Spray Gun Technical Data Max. Viscosity 60 DIN-s Rated Voltage 20V, DC Max. Rated Power 243W Flow Rate 700ml/min Weight 1.45Kg...
-
Page 2: Important Safety Information
【 Important safety information 】 Please read all safety instructions before using appliance. Save these instructions. Read all safety instructions in the manual to avoid hazards of fire, explosion, electric shock, and personal injury. Familiarize yourself with the correct use of the tool. Danger: Harmful gases This symbol indicates that this may result in death or serious injury. - Page 3 【 Important safety information 】 Please read all safety instructions before using appliance. Save these instructions. Safety instructions of battery pack and charging Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance.
- Page 4 Packing List & Components Fanassembly Air filter Nozzle Pattern size adjust knob Pattern Nozzle Seal ring Adjusting guard knob assembly Trigger Flow regulator Tank Handle Viscosity Lock of tank Battery pack Brush Nozzle + Sealing Wrench Nozzle Charger ring unclogging needle Name Quantity...
- Page 5 Assembly Assembly of spray gun Do not spray flammable liquids. 1. Attach fan assembly to gun head rear part as below fig shown and clockwise rotate fan assembly to lock position. Filling the spraying material 2. Pull the lock of tank up fit with hook as shown below. 1.
- Page 6 Spraying Pretreat the surface to be sprayed 1. By turning the nozzle adjusting knob to get various pattern in between horizontal oval, vertical oval, round. Users can The splash result depends on how smooth and clean the adjust accordingly to achieve the ideal spraying results. surface is before spraying.
- Page 7 Cleaning Cleaning the spray gun 6. Wipe and clean the outside of the tank. Note: Do not immerse the gun in the detergent! 7. Turn nut to remove the pattern adjust knob, nut, nozzle 1. Unlock the fan assembly and remove it from the gun guard, nozzle (sealing ring inside).
-
Page 8: Battery Pack
Battery Pack Charging of battery pack Transportation 1. Recharge only with the charger specified by the manufacture. 1. Lithium-ion battery packs supplied with the appliance 2. Note: Battery is partially charged by shipping from factory, must be subject to the Dangerous Goods regulations. User must fully charge the battery pack to ensure the Users can not transport the battery pack without performance of the spray gun. -
Page 9: Maintenance
Maintenance After using for a period of time, you should check if the 2. Remove the dirty filter and replace it with a new one. filter is dirty or not. If it is excessively dirty, you need to replace the filter with the following steps. 1.
