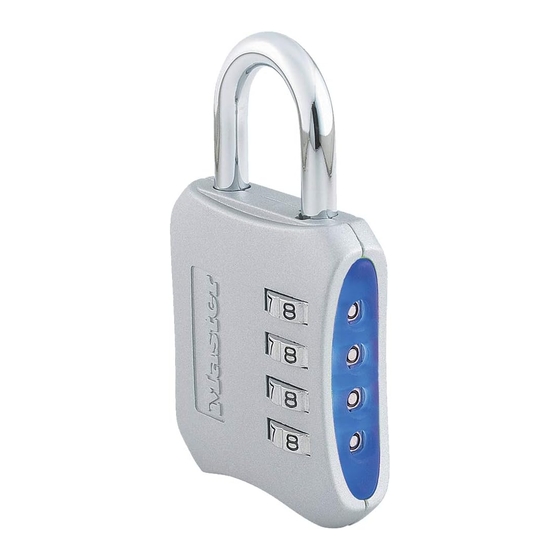

Master Lock 653D Manual

How do I change the combination on a "Set-Your-Own"
combination lock model #653D?
A:
Here are the instructions for changing the combination on you model 653D lock. This lock is preset at the
factory to operate at 0-0-0-0.
1. With dials at 0-0-0-0, pull out the shackle
2. Turn shackle counterclockwise 90 degree (1/4 turn)
3. Continue pressing shackle down and turn another 90 degree (1/4 turn)
4. Set the dials to your own combination
5. Turn shackle clockwise back to the original 90 degree position, lift and return shackle to closed position
Note: Be sure to record your NEW combination as you are the only one that knows it!
Store your combination at
Lock Vault provides a safe & convenient place to store all of your confidential data for quick & easy
access from your PC, iPhone, or any other mobile devices!
Note: The lock may only be reset when it is in the open position. If you do not recall the combination the lock
is set to, you will not be able to reset the combination.
