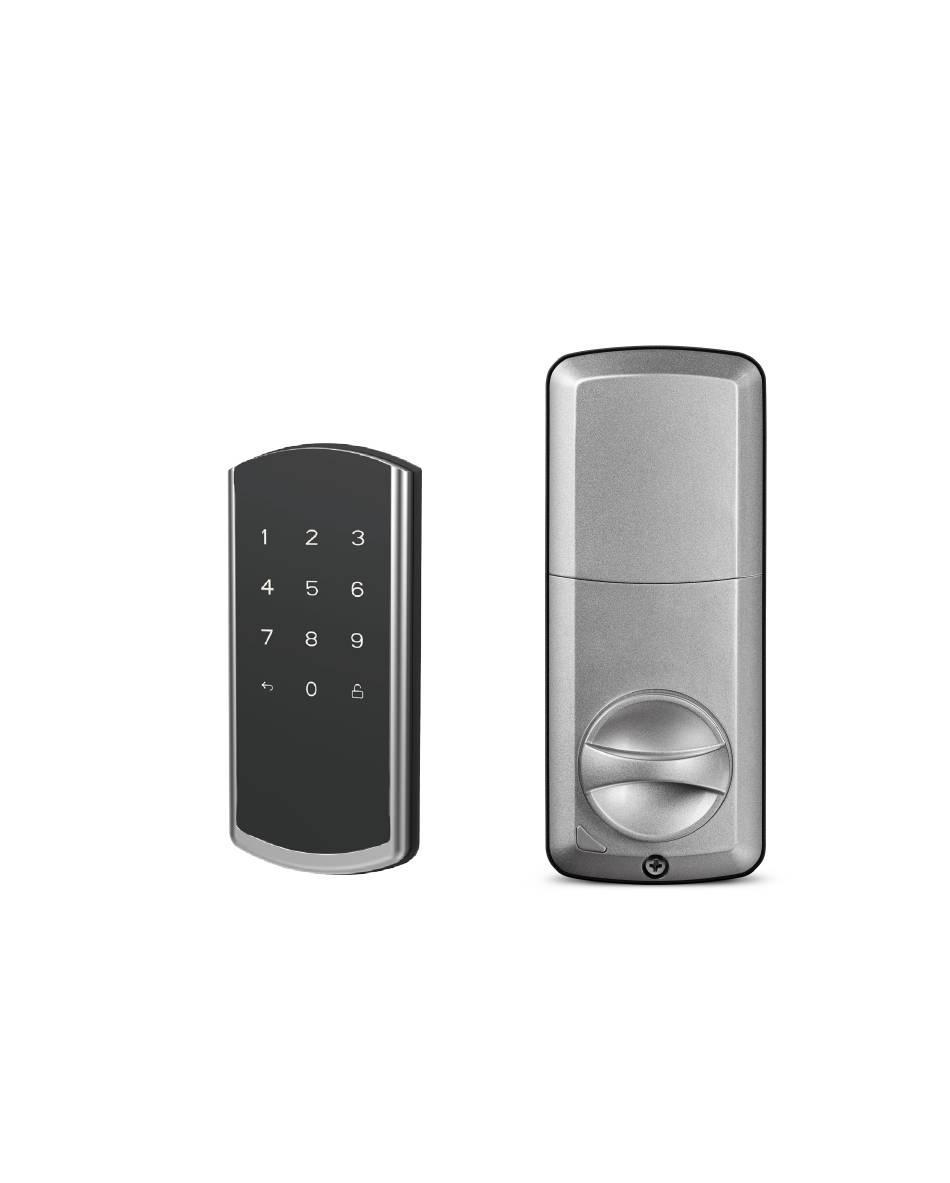

- Page 1 Quick Start Guide Model: D1000 PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT AND KEEP THIS MANUAL FOR FUTURE REFERENCE.
-
Page 2: Kit Content
Kit Content Screw Pack Deadbolt Pack... - Page 3 Kit Content Smart Lock Smart Lock Keypad Mounting Plate Rubber Door Sensor Mounting Plate Tail Piece AA Alkaline Battery *4 Strike Plate Set Deadbolt *1 Screw *4 (Strike Plate & Deadbolt) Template Screwdriver Screw for Mounting Plate M4 *20mm *3 for 35~40mm door thickness M4 *30mm *3 for 40~50mm door thickness M4 *40mm *3 for 50~60mm door thickness Standoff...
-
Page 4: Specification
Specification Number Keypad Backspace * Deletes last entered number Unlock Button * Press to unlock after passcode entered Battery Cover Thumbturn Wake-up Button Male USB-C Emergency Power Port... - Page 5 Master Lock Bluetooth® Deadbolt D1000 Model Name Unlock Options Password/Bluetooth Low Energy Battery Life 10 Unlocks/Day for 1 year AA Alkaline Battery *4 Power Supply USB 5 V+/- 0.2V (not included) Emergency Supply Low Power Alarm 4.8V +/- 0.1V 7 sets...
- Page 6 Preparation Check Points 35mm ~60mm >170mm 1. Confirm the distance of the door handle >50mm either above or below the deadbolt. 2. Confirm the door thickness. Door thickness & Tail piece length Door Thickness (mm) Tail piece (slice) Please adjust the length of tail piece based on the door thickness.
- Page 7 Remove the current lock Skip this step if using original deadbolt. 60mm default Adjust the deadbolt length Please measure the distance from the center of the drilled hole to the door frame. 1. 60 mm 2. 70 mm 70mm optional Rotate...
-
Page 8: Installation
Installation Step 1: Install the deadbolt (Skip this step if using original deadbolt) Adjust the bolt length and make sure the “+” hole of deadbolt in the middle of the door hole. Twist the”+”and ensure the plate line up the bolt. Deadbolt must be in retracted position. - Page 9 Fixing Hole Step 2: Drill the fixing hole on the door (optional) Positioning the template to the deadbolt hole and drill a fixing hole. Step 3: Install the keypad on the outside of the door Back of Smart Lock Keypad Screw the standoff...
- Page 10 Step 4: Install the mounting plate Run the cable through the rectangle hole on the right. Screw: Mounting plate screw *3. NOTE: Screw for Mounting Plate M4 *20mm *3 for 35~40mm door thickness M4 *30mm *3 for 40~50mm door thickness M4 *40mm *3 for 50~60mm door thickness Turn the “+”hole and ensure the deadbolt extend-retract smoothly.
- Page 11 Step 5: Install the door sensor Ensure the sensor is close to the frame. Tape the sensor on the door. Fasten the sensor onto the mounting plate. Step 6: Fit in the mounting plate rubber The door senor cable goes through the hole in the middle. The keypad cable goes through the rectangle hole on the right.
- Page 12 Step 7: Insert the cable connector onto the smart lock Black Step 8: Insert the tail piece Ensure the thumbturn is in vertical position. The deadbolt must be in retracted position.
- Page 13 Step 9: Mount the smart lock onto the door Please screw the smart lock in the following order: Screw the smart lock with 1 smart lock screw. Screw the battery cover with 2 battery cover screws. Step 10: Test the smart lock Step 11: Insert the batteries and put the battery cover back on.
- Page 14 D1000 Features One Touch Lock When the deadbolt is retracted, touching any button while awake will extend the latch Low Power Indication When battery power is low, some prompts remind you to replace batteries: 1. The keypad arrow button lights RED.
