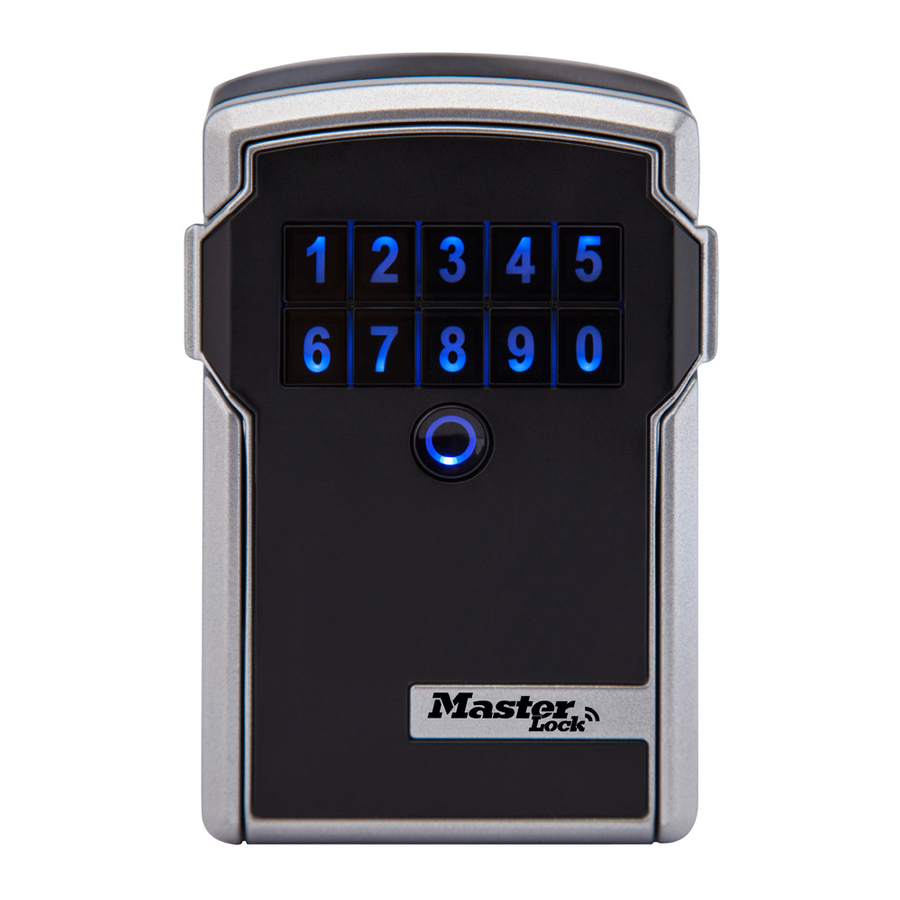

Master Lock 5441EURENT - Key Lock Box Select Access Smart Manual

Table of Contents

Contents

1 QUICK START
- 1.1 UNLOCK WITH MOBILE DEVICE
- 1.2 UNLOCK WITH THE NUMERIC KEYPAD
2 HOW TO REPLACE BATTERY
3 HOW TO UNLOCK WITH EXTERNAL BATTERY
4 Documents / Resources
- 4.1 References
- 4.2 Download manual

QUICK START

UNLOCK WITH MOBILE DEVICE

Remove lock box and instructions from package.
Before you launch the app, you must first set up an account, or have an existing account in order to add a new product. If you do not have an existing Master Lock Vault Enterprise account, you must create one at www.enterprise.masterlockvault.com. If you already have an existing account, please proceed to step 3.
Launch the Master Lock Vault Enterprise app and sign in (1).

In the Master Lock Vault Enterprise app, touch the plus sign (+) in the upper-right corner.
Scan the QR Code, from the gray box located above, on your mobile device to register the Select Access SMART. Once your Select Access SMART is registered, it will display in the Authorized tab inside the app. Touch the name of the Select Access SMART to access the details, manage additional settings, and view the access history.
By default, your Select Access SMART is in Wake Touch mode. To unlock it, press the keypad to wake it. The Select Access SMART will now appear under the Awake tab in the app. Touch the blue key icon to unlock the Select Access SMART. When it lights green, open within 5 seconds or it will relock..

UNLOCK WITH THE NUMERIC KEYPAD

Remove the Select Access SMART & instructions from package.
Enter the PRIMARY CODE, located in the black box above, into the Select Access SMART keypad. (Note: Do not pull on the door when entering the code and do not press the clear button. Entering the Primary Code will erase the Try Me code.)
When lock box light turns green, open within 5 seconds or it will relock.

HOW TO REPLACE BATTERY

Low battery will be indicated through an email notification, the app, or by a yellow light on the lock box.
Unlock and open the Select Access SMART door.
Using a Flat Head screw driver, open the battery compartment door and remove the battery.
Install a new CR123A battery, making sure to position the battery with positive and negative sides facing the proper direction as indicated on the door and battery compartment.
Close the battery door and tighten the screw.

HOW TO UNLOCK WITH EXTERNAL BATTERY

How to unlock with External Battery

Locate the battery jump contacts on the bottom of the Select Access SMART (see illustration 4).
Hold a new 9-volt battery underneath the product with the positive (+) and negative (-) terminals pressed against the jump contacts (see illustration 5), in the orientation indicated on the bottom of the lock box (see illustration 4).
While holding the battery in place, and with an authorized mobile device within range of the lock box and in Touch Unlock mode, press any keypad button on the lock box. If the lock box does not unlock, or an authorized mobile device is not available, enter the Primary Code on the lock box keypad; while holding the 9-volt battery in place.
When lock box is opened, install a new CR123A battery. Please note that after installing a new battery, the low battery icon will no longer display in the app after the lock box and app communicate with each other. However, it will take between 2 and 72 hours for the yellow LED to stop displaying on the lock itself.

Please note that after installing a new battery, the low battery icon will no longer display in the app, after the app and the lock communicate with each other. However, it will take between 2 to 24 hours for the yellow LED to stop displaying on the lock itself.

NOTICE : WEEE Figure 1: In the European Union (EU), this symbol means that electrical and electronic equipment should not be disposed of with general household waste. Please contact your dealer, supplier or local recycling authority for further details regarding appropriate disposal of this product and your nearest designated collection facility.

Simplified EU Declaration of Conformity: 5441 Hereby, Master Lock Company LLC declares that this product complies with the essential requirements and other relevant provisions of Directive 2014/53/EU. The full text of the EU declaration of conformity can be consulted under www.masterlock.eu
FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

this device may not cause harmful interference, and
this device must accept any interference received, including interference that may cause undesired operation.

FCC Part 15.21 Statement: Changes or modifications made to this equipment not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment..
