UnderCover SWING CASE SC205D Installation Manual

Installation Guide
1
2
3
4
5
torx bolt through the truck bracket and the truck, place lock washer and assembly nut on bolt and hand
tighten only. Use a torx bolt on the top hole followed by an alluminum spacer, lock washer and assembly nut
(Note: the spacer should be positioned with the grooves against the truck bed). Do not tighten at this time.
Repeat this proceedure for the bottom hole and tighten all three.
3. STRIKER BRACKET INSTALLATION ( gure 3) - Remove the four(4) T30 torx bolts from the Box Link plate.
Using the existing hardware, install the striker bracket over the top of the Box Link plate (Note: The tie down
can remain attached to the plate). Reinstall the tailight.
1
Form # SC205DII
Created Aug 2016
SC205D - Drivers Side
Ford Super Duty 2017

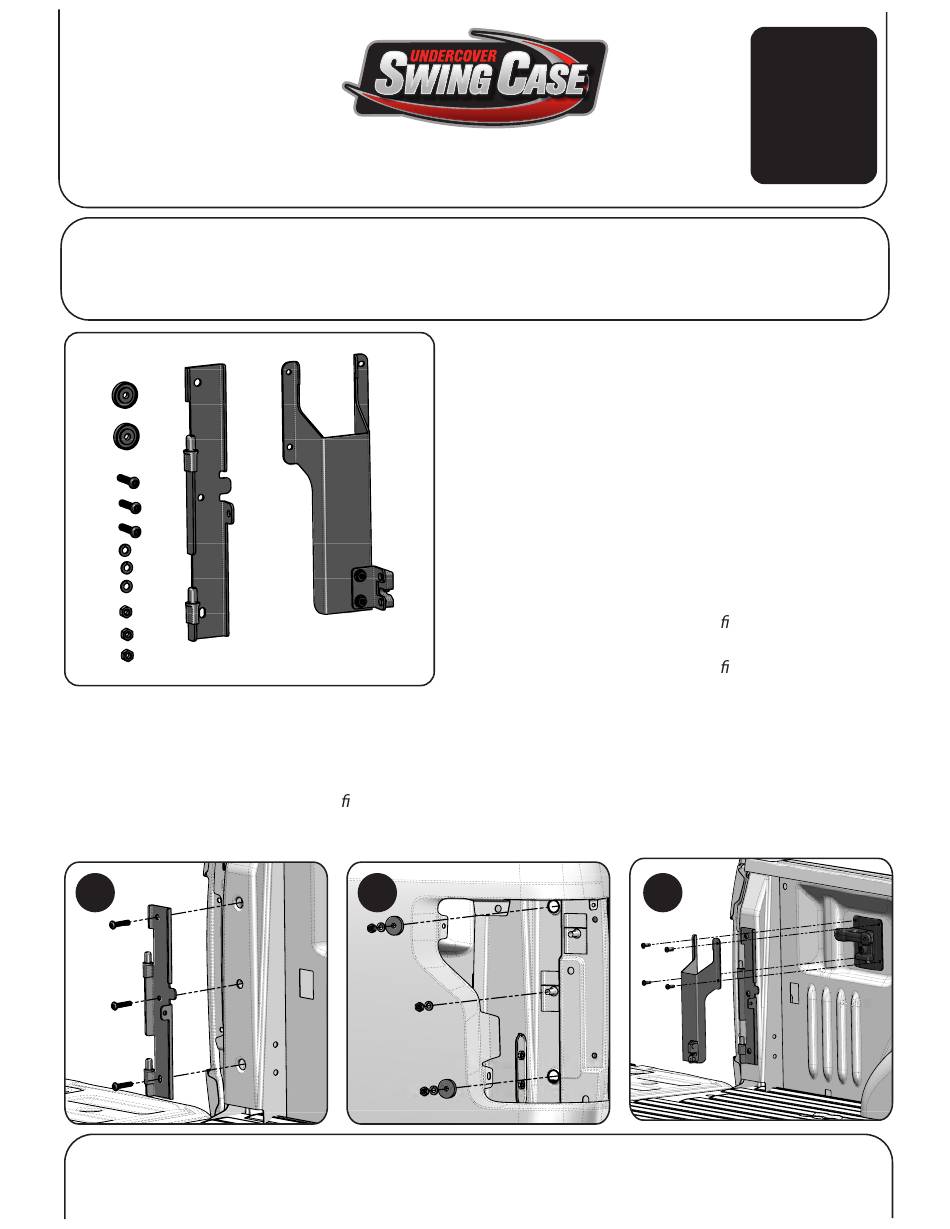

Hardware Included
1. Aluminum Spacers (qty 2)
2. Torx Bolts T40 (qty 3)
3. Lock Washers (qty 3)
4. Assembly Nuts 1/2 Hex" (qty 3)
5. Truck Bracket (qt 1)
6. Striker Bracket (qty 1)
TRUCK BRACKET INSTALLATION - Remove the tailight by
removing the two(2) 8mm hex bolts and pulling the
tailight outwards from the side of the truck. Remove the
wiring harness connector. Set tailight to side.
1. TRUCK BRACKET INSTALLATION ( gure 1)- Line up the
6
truck bracket according to the drawing.
2. TRUCK BRACKET INSTALLATION ( gure 2) - Attach the
bracket to the truck. Starting with the middle hole, insert a
2
For Warranty Issues, Contact UnderCover Directly
(866) 900-8800 www.undercoverinfo.com
D
SC205D
3
