UnderCover Swing Case SC400D Installation Manual

Drivers side for toyota tundra 2007 - current

Advertisement

Quick Links

Installation Guide
1
1

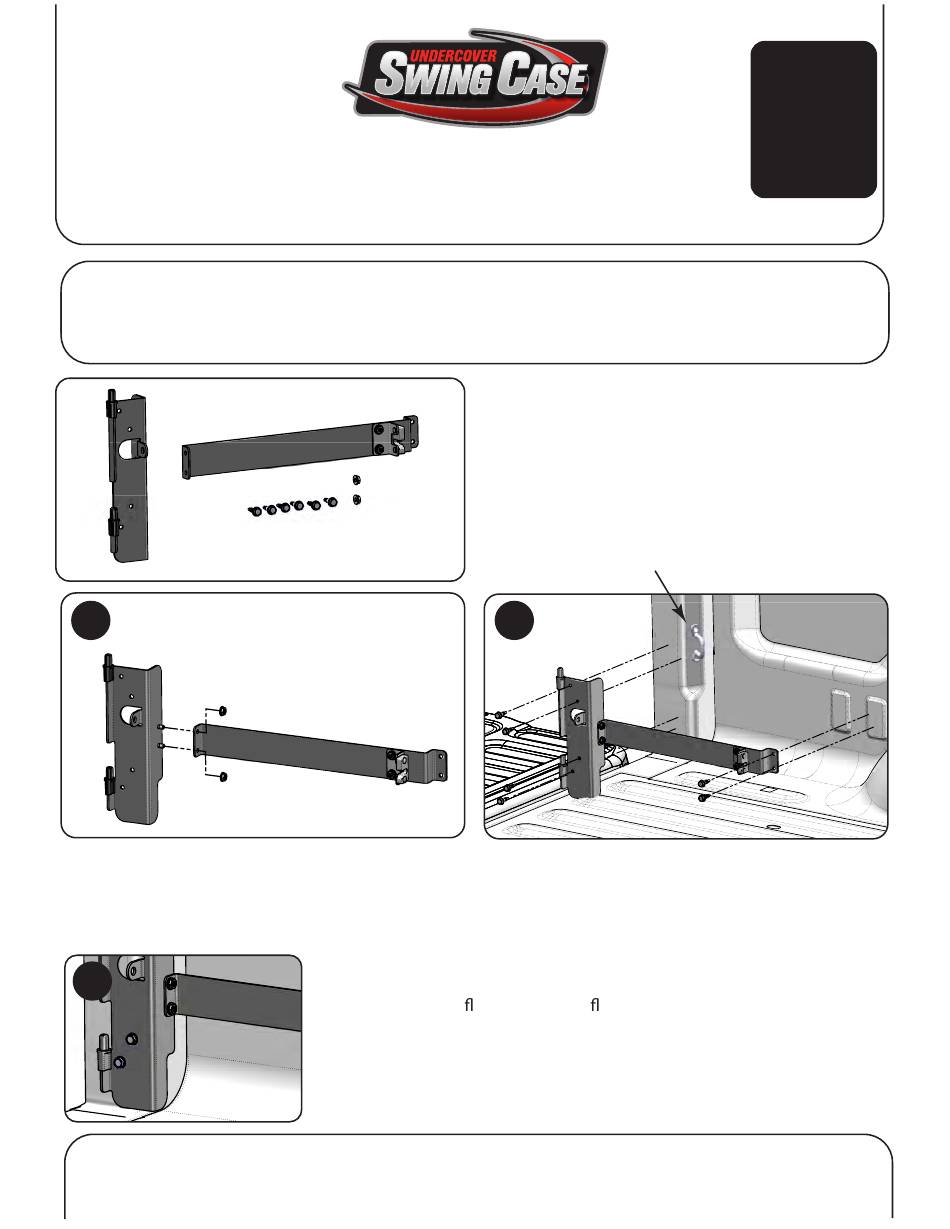

1. BRACKET ASSEMBLY - Attach the striker bracket to the truck bracket using the two (2) assembly nuts.
2. INSTALLING MOUNTING BRACKET ASSEMBLY - Remove the factory Toyota tie down (T40 bit), it will not
be used with this installation. Position the bracket to the light well/wheel well area.
3
Form # SC400DII
Created Aug 2014
SC400D - Drivers Side
Toyota Tundra 2007 - Current
2
4
3
3. INSTALLING MOUNTING BRACKET ASSEMBLY (continued)
Mount the bracket ush to the bed oor, according to the drawing.
Using the six (6) self drilling screws provided, attach the bracket to the
truck . Be careful not to overtighten and strip out the holes.
For Warranty Issues, Contact UnderCover Directly
Hardware Included
Hardware Included
1. Truck Bracket
1. Truck Bracket
2. Striker Bracket
2. Striker Bracket
3. Mounting Screws (qty 6)
3. Mounting Screws (qty 6)
4. Assembly Nuts (qty 2)
4. Assembly Nuts (qty 2)
Note: Must remove tie down.
2
(866) 900-8800 www.undercoverinfo.com
