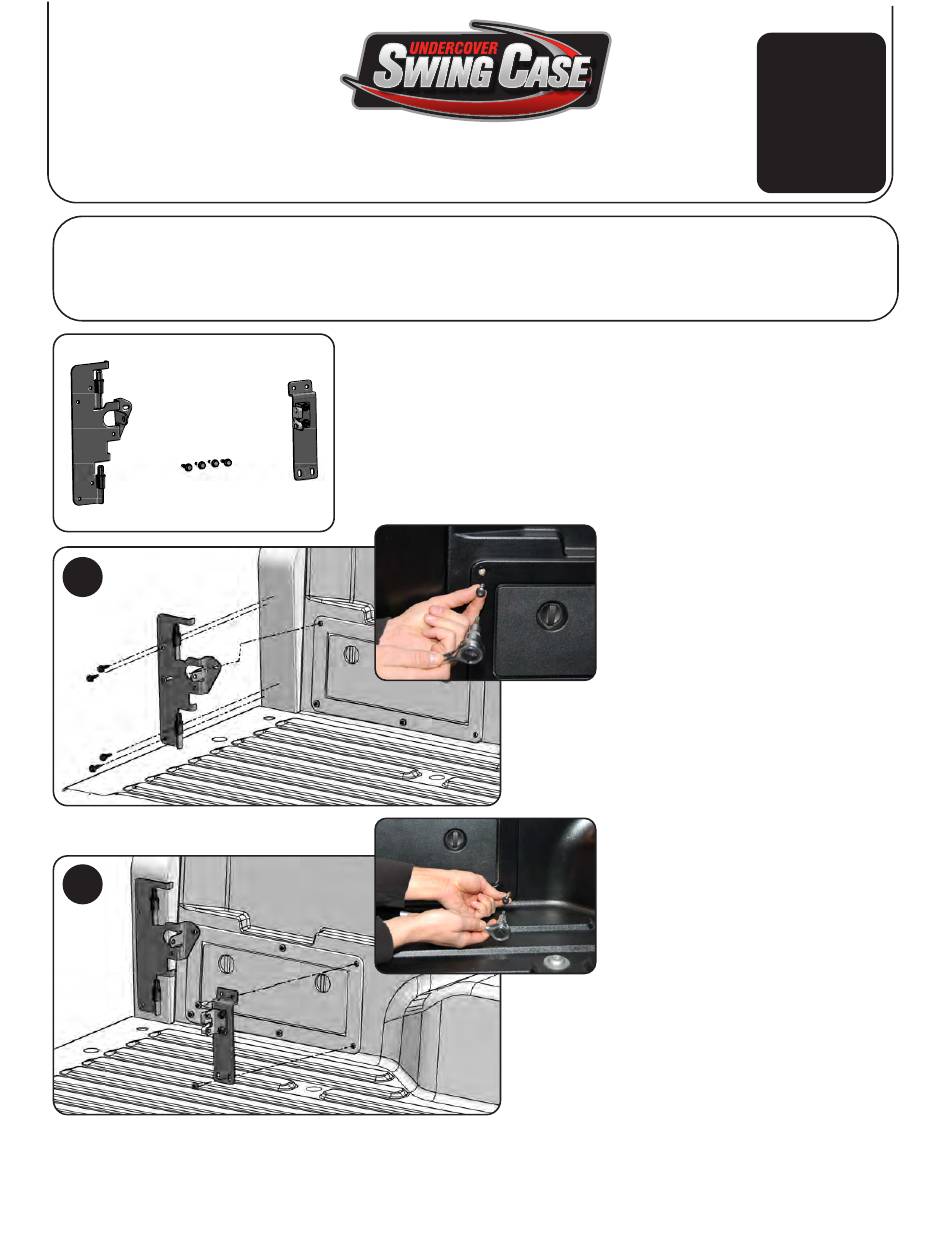

Installation Guide

SC401D - Drivers Side

Toyota Tacoma 2005-Current

Hardware Included

1. Truck Bracket

2. Self Drilling Screws (4)

3. Striker Bracket

1. TRUCK BRACKET INSTALLATION -

Remove the upper bolt from the ring that

attaches the factory tool box (T30 torx).

Position the truck bracket into place and

line up the hole in the truck bracket with

the hole for the torx bolt. Reinstall the

torx bolt, be sure the upper tab on the

truck bracket is tight against the vertical bed support

and tighten the bolt.

Finish attaching the bracket using the four(4)

supplied self drilling screws. Be careful not to over

tighten and strip out the screw holes.

2. STRIKER BRACKET INSTALLATION -

Remove the two rear bolts from the ring

that attaches the factory tool box (T30

torx). Install the striker bracket using the

factory torx bolts, use the two holes on

the right side of the bracket.

SC401D

Need help?

Do you have a question about the SwingCase SC401D and is the answer not in the manual?

Page 1 Installation Guide SC401D SC401D - Drivers Side Toyota Tacoma 2005-Current Hardware Included 1. Truck Bracket 2. Self Drilling Screws (4) 3. Striker Bracket 1. TRUCK BRACKET INSTALLATION - Remove the upper bolt from the ring that attaches the factory tool box (T30 torx). Position the truck bracket into place and line up the hole in the truck bracket with the hole for the torx bolt.
Page 2 Installation Guide - Continued NOTE: This bracket will overlap the factory tool box lid, but it has been designed to allow you to still remove the lid with the SwingCase completely installed. 4. INSTALLING SWING CASE Lower the box onto the hinge pins and gently push the box to the stowed position. 5.
