VEVOR 24x16x10'' JSTCDQX Instruction/Installation Sheet

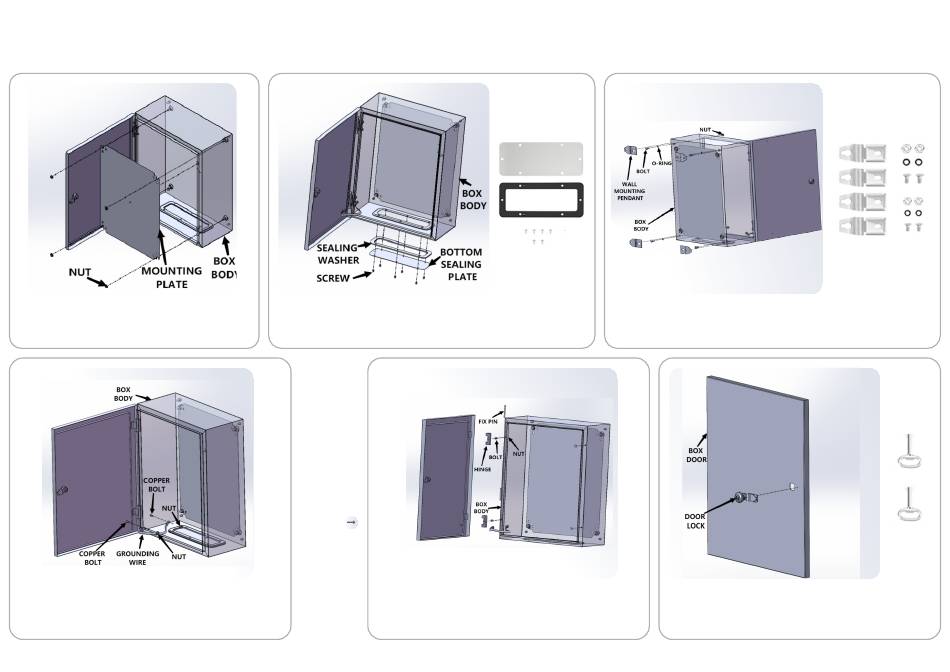

A:Mounting Plate Installation:
Adopts 4pcs M8 hex head flange nut assembly mounting
plate with box body.
Notice:already assembled on box body when ex-factory.
D:Grounding Wire Installation:
Adopts 2pcs M6 hex head flange nut assembly grounding wire
on M6*12mm copper bolt of box door and box body.
Notice:already assembled on box body when ex-factory.
Warning:when lock the box door,please turn lock core 90°from vertical direction to horizontal direction,make sure meet best protection level.
INSTRUCTION/INSTALLATION SHEET
Electric Metal Box
B:Bottom Sealing Plate Installation:
Adopts M5*10mm cross self-tapping screws assembly sealing washer,
bottom sealing plate with box body.
according to your usage requirement to mount it or not.
Please read the
following twosheets
if you need change
box door and
box lock
E:Box Door Installation:
Adopts 1pcs M6*12mm flat head cross screw,M6 O-ring,
M6 hex head flange nut assembly hinge on box body,
Adopts fixed pin assembly box door on hinge.
Notice:box door already assembled on box body when ex-factory.
C:Wall Mounting Pendants Installation:
Adopts 4pcs M8*16mm hex head bolt,M8 O-ring,M8 nuts mounting
4pcs wall mounting pendants on the wall.
F:Door Lock Installation:
Adopts lock nuts assembly box lock on box door.adopts
matched key to meet box door open and close.
Notice:already assembled on box body when ex-factory.
