Installation

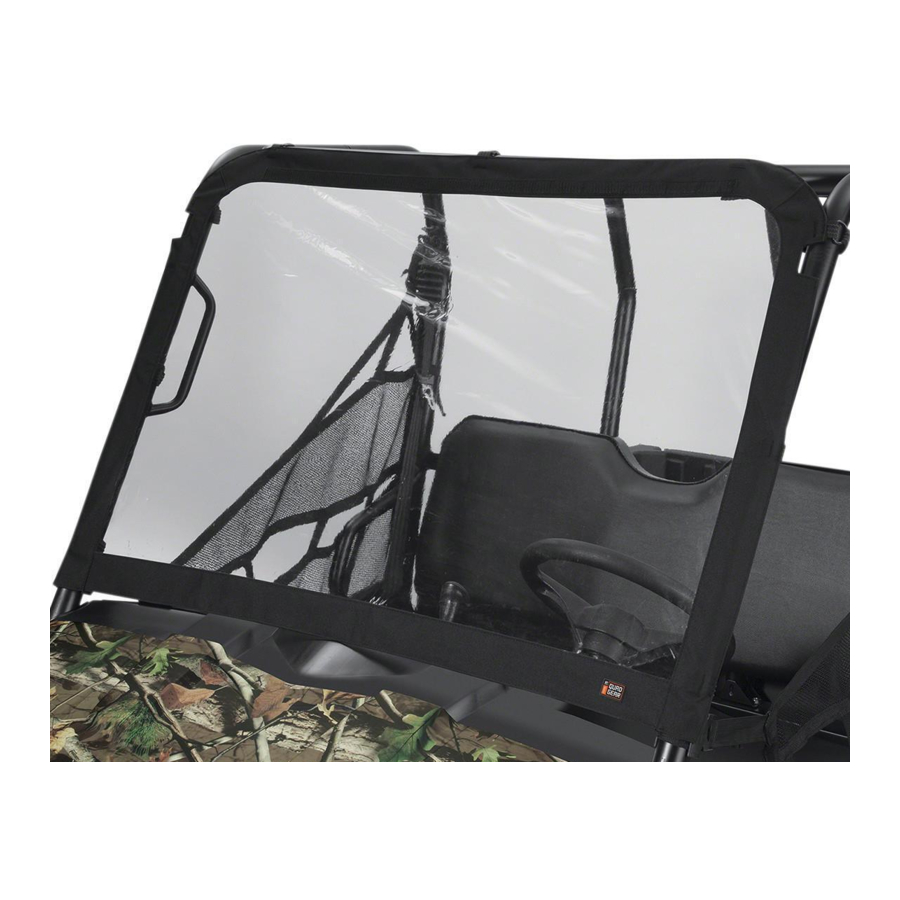

Place your windshield over the front of your roll cage with the QuadGear logo on your windshield facing out and right side up. Loosely attach your windshield to your roll cage first with the top straps and then with the side straps (Fig. 1).

If your cover has additional straps along the top, secure them around the horizontal bar.
NOTE: On most models the underside of the roll cage top is lined with a rip-and-grip panel (front side only) that can be used to combine with the UTV windshield (Fig. 2).

If your windshield has a rip-and-grip strip along the bottom edge, remove the backing and centering the windshield, press firmly to your UTV. Allow 24 hours for the adhesive strip to cure.
Adjust the top straps and then the bottom straps to position your windshield in the center of the roll cage uprights (Fig. 3). When it is centered and level, tighten all the straps.

Cleaning

Don't clean the clear plastic of your windshield when it is dry—you can scratch it. The best way to clean the clear plastic is to hose it with water and rub it with your bare hands or soft cloth. Liquid soap may be used.
Clean the fabric areas of your rear window with a soft brush and warm water. DO NOT USE SOAP as it can damage the protective coatings on the fabric. Air dry.

Storage

To avoid mildew be sure that your windshield is completely dry before you store it for an extended period in an enclosed area.

do not use soap

waterproof not

no bleach

do not iron

do not pack wet

no tools required

line dry

Safety

Make sure your field of view is not obscured after mounting your windshield to your UTV roll cage.

Be sure your windshield is strapped securely and tightly to your UTV roll cage.

Do not transport an installed windshield on an open trailer or truck. The windshield could get damaged, could damage the UTV and/or possibly come off in traffic possibly causing injury and/or damage to other property.

Warranty void if installed windshield is transported on an open trailer or truck.
