The 12" DL 12 BFH high-power
transducer covers the bass and
midrange up to 1.5 kHz, whilst in
the high-frequency range, an
ND-2 neodymium driver is coup-
led with a large-format constant
Q horn with an 80° x 40° coverage
pattern, the integration of which
into the baffle is CAD-optimized.
As with all the D-Lite cabinets,
thanks to the fully electronic Voice
Coil Tracking Protection supported
by halogen protectors, extremely
high, distortion-free peak sound
levels can be generated, and profes-
sional power amplifiers can be
used the rated outputs of which
are the same as the peak values
of the enclosures they are driving
without the reliability of either
being compromised. When used
in active satellite systems, such as
for example the active 3-channel
PowerSub 315 from DYNACORD,
the D 12 or D 12-3 cabinets are
simply connected to the left and
right satellite outputs of the
PowerSub 315.
Whether used solo as a full-range
box or in combination with passive
subwoofers, power amplifiers from
the SL or LX series are recom-
mended, as is the PowerMate.
The Voice Coil Tracking Protection

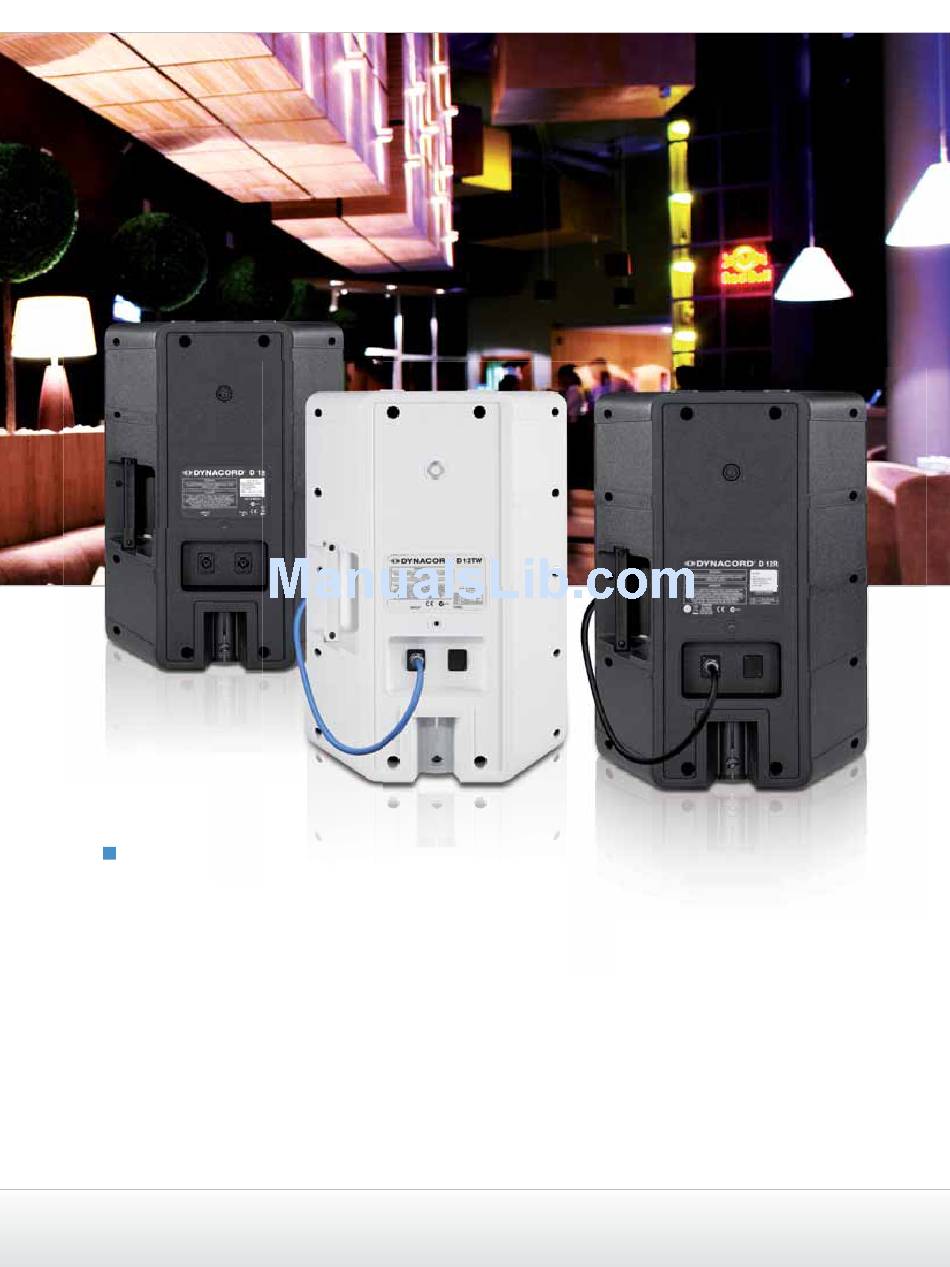

D 12 · D 12W · D 12T · D 12TW · D12R · D12RW
system together with the halogen
protectors guard against thermal
overloading of the loudspeakers.
With its ultra-low-distortion toroidal
core transformer, the D 12T is
designed for 100V audio networks,
whilst the D 12R is a low-impedance,
weather-resistant installation version
with an integrated PG cable.
Like the D 12, the D 12T and D 12R
are available in both black and
white. The extensive range of
optional accessories allows their
virtually unlimited use in fi xed instal-
lations or flown configurations.
