VariLine APPLICATION GUIDE
VariLine HI-POWER PA SYSTEM
PowerMax 5 APPLICATION GUIDE
PowerMax 5 COMPACT PA SYSTEM, MEDIUM CLUBS
114

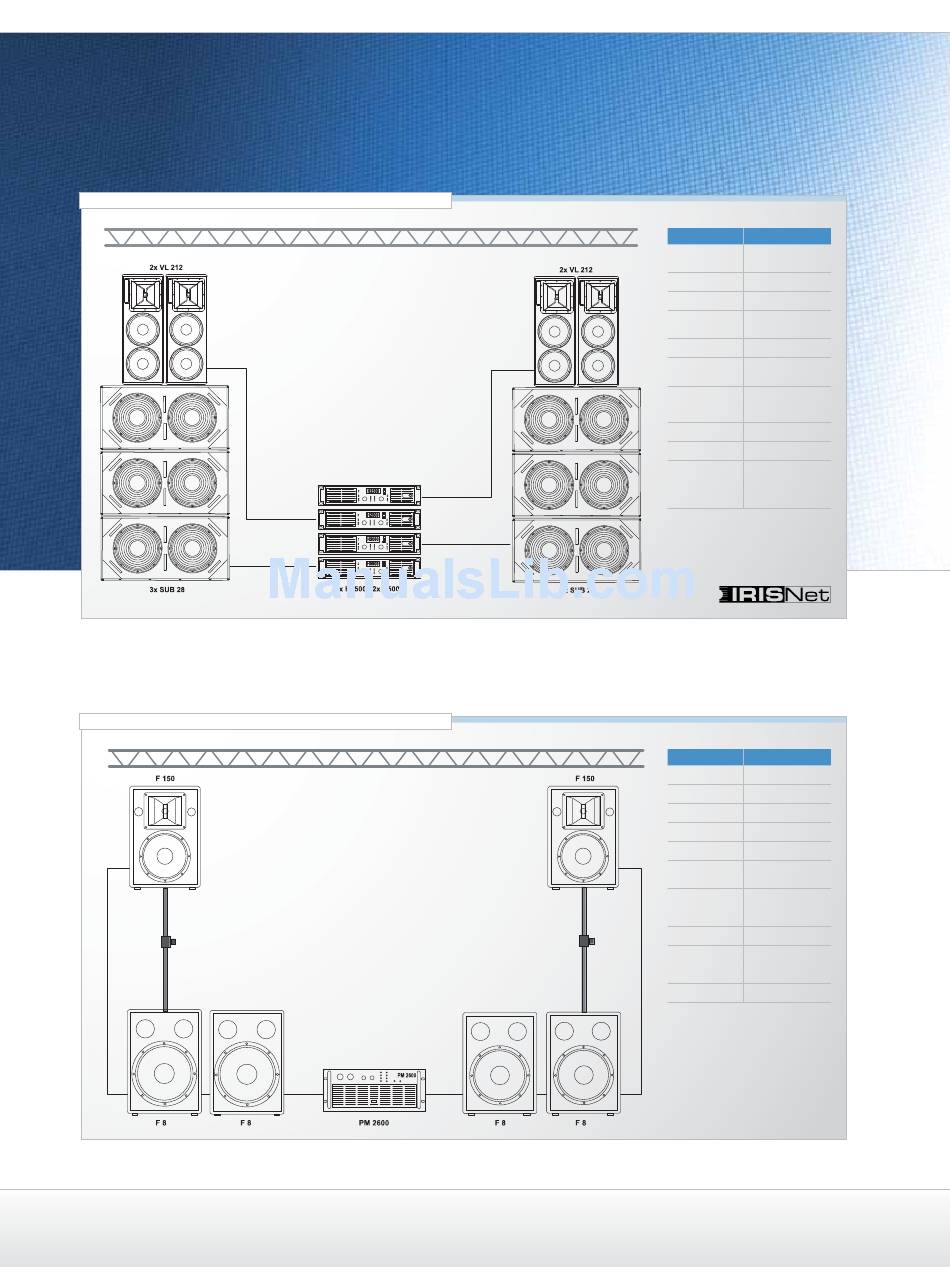

Confi guration Active 3-Way
4x VL 212,
Cabinet Types
6x Sub 28
Amplifi ers 2x H5000, 2x H2500
Controllers 4x RCM 26 Module
Cables 6x 8-pole lomg,
8x 8-pole short
Accessories ---
Horizontal 80° or 180°
Coverage (rotable Horns)
Total Amp Power 4x 3000 W Sub (2,7 Ohms)
2x 2500 W Mid (2 Ohms)
2x 1450 W High (4 Ohms)
Typical Distance ----
Options ---
each Sub is switched to
Comments
2x 8 Ohms, all cables
4-pole, conn. to Amp
Output Ch. A
Confi guration Active 2-Way
2x F 150, 4x F 8
Cabinet Types
1x PM 2600
Amplifi ers
integrated
Controllers
Cables
2x VPM 1500
Accessories
2x 90°
Horizontal
Coverage
Total Amp Power 2x 600 W
+ 2x 700 W Sub
= 2600 W
Typical Distance 15 - 20m
Options PM 2600 can drive
3x Top and 3x Sub on
each side
