EVM User's Guide: TDP142Q1-EVM

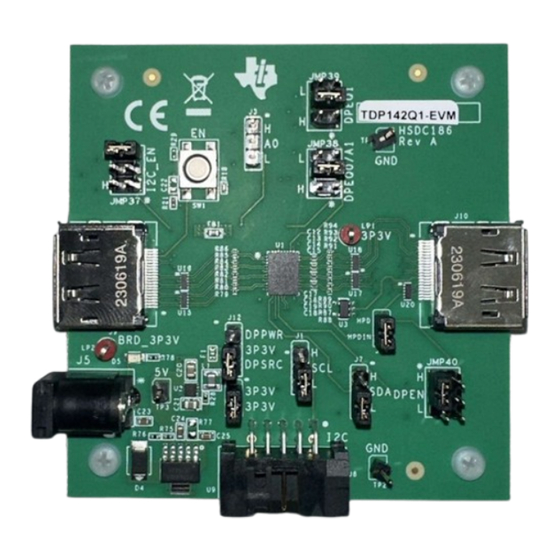

TDP142-Q1 Evaluation Model
Description
The TDP142-Q1 is a linear DisplayPort
capable of speeds up to 8.1Gbps (HBR3). The
TDP142Q1-EVM is an evaluation module used to test
the signal conditioning capabilities of the TDP142-Q1.
2
This EVM provides I
C and GPIO control to configure
the equalization of the device. Signal integrity can
be tested using the DisplayPort
EVM.
Get Started
1. Order the EVM on TI.com. No software is required
to use this EVM
2. Follow the default jumper settings found in the
Device Configuration Table.
3. Connect DisplayPort™ source to J9.
4. Connect DisplayPort™ sink to J10.
5. Power EVM using 5V barrel jack.
6. EVM provides a signal conditioned DisplayPort™
video stream to the DisplayPort™ sink.
SLLU391 – NOVEMBER 2024
Submit Document Feedback
1.4 redriver
connectors on the
Copyright © 2024 Texas Instruments Incorporated
Features
DisplayPort™ 1.4 up to 8.1Gbps (HBR3)
Ultra-low-power architecture
Linear redriver with up to 12dB at 4.05GHz
equalization
Transparent to DisplayPort™ link training
Configurable through GPIO or I
Supports DisplayPort™ dual-mode standard
version 1.1 (AC-coupled HDMI)
Applications
Automotive head unit
Rear seat entertainment
Automotive infotainment and cluster
Active cables
Description
2
C
TDP142-Q1 Evaluation Model
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDP142-Q1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments TDP142-Q1

  • Page 1 • Ultra-low-power architecture TDP142Q1-EVM is an evaluation module used to test • Linear redriver with up to 12dB at 4.05GHz the signal conditioning capabilities of the TDP142-Q1. equalization This EVM provides I C and GPIO control to configure • Transparent to DisplayPort™ link training the equalization of the device.
  • Page 2: Kit Contents

    DisplayPort™ source or sink system to evaluate the TDP142-Q1 performance. PCB design files can be provided, upon request, to aid in PCB design with the TDP142-Q1 device. The layout files can be used as a guideline to implement the device, with illustrations of the routing and placement rules. The EVM design may include test components for evaluation purposes, but not applicable for production.
  • Page 3: Jumper Information

    2-2. 2.2.1 Configuration Jumper Levels The TDP142-Q1 EVM has 4-level inputs pins (I2C_EN, A0, and DPEQ[1:0]) that are used to control the equalization gain and place the TDP142-Q1 into different modes of operation. These 4-level inputs use a resistor divider to help set the four valid levels and provide a wider range of control settings. There are internal pullup...
  • Page 4: Best Practices

    Use J7 and J1 to program this device. 2.3 Best Practices When handling this EVM, best practice is to use an ESD strap and maintain an ESD safe environment. TDP142-Q1 Evaluation Model SLLU391 – NOVEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 5 Hardware Design Files 3 Hardware Design Files 3.1 Schematics Figure 3-1. TDP142-Q1 EVM Schematic 1 SLLU391 – NOVEMBER 2024 TDP142-Q1 Evaluation Model Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 6 Hardware Design Files www.ti.com Figure 3-2. TDP142-Q1 EVM Schematic 2 TDP142-Q1 Evaluation Model SLLU391 – NOVEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 7: Pcb Layouts

    Hardware Design Files 3.2 PCB Layouts Figure 3-3. TDP142-Q1 EVM Layer 1 (Top Side) Figure 3-4. TDP142-Q1 EVM Layer 2 (GND Plane) SLLU391 – NOVEMBER 2024 TDP142-Q1 Evaluation Model Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 8 Hardware Design Files www.ti.com Figure 3-5. TDP142-Q1 EVM Layer 3 (PWR Plane) Figure 3-6. TDP142-Q1 EVM Layer 4 (Bottom Side) TDP142-Q1 Evaluation Model SLLU391 – NOVEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 9 THT-14-423-10 LP1,LP2 Keystone Electronics 36-5000-ND Murata LQM21PZ1R0NGRD PCB1 HSDC186 HSDC069 R1,R2,R10 Yageo RC0402JR-0720KL R3,R4 4.7k Yageo RC0402JR-074K7L R5,R6,R7,R8,R9,R12,R13,R14,R15, Yageo RC0402JR-071KL R16,R18 R11,R17 Yageo RC0402JR-0710KL SLLU391 – NOVEMBER 2024 TDP142-Q1 Evaluation Model Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 10 TEST POINT Samtec HTSW-101-07-G-S TDP142Q1 Texas Instruments TDP142Q1 TPS62082DSGT Texas Instruments TPS62082DSGT SN74AHC1G125DBVR Texas Instruments SN74AHC1G125DBVR TPS7A4501 Texas Instruments TPS7A4501DCQR U15,U17,U18,U19,U20 PUSB3FR4 Nexperia USA PUSB3FR4Z TDP142-Q1 Evaluation Model SLLU391 – NOVEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 11: Additional Information

    All trademarks are the property of their respective owners. 4.2 Related Documentation For related documentation, see the following: • Texas Instruments, TDP142-Q1 DisplayPort™ 8.1Gbps Linear Redriver data sheet SLLU391 – NOVEMBER 2024 TDP142-Q1 Evaluation Model Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
