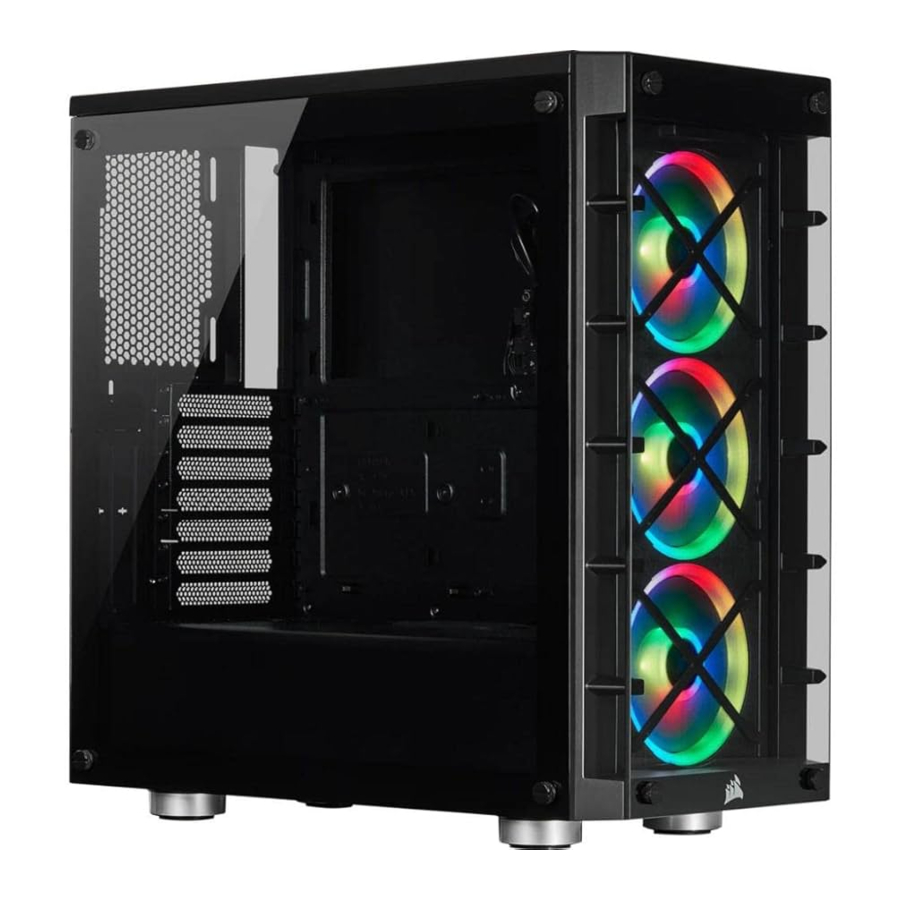

Corsair iCUE 465X RGB Manual
CASE SPECIFICATIONS
Length: 467mm
Width: 216mm
Height: 455mm
Maximum GPU length: 370mm
Maximum CPU height: 170mm
Maximum PSU length: 180mm
Fan locations:
Front: 3x120mm / 2x140mm (3x120mm included)
Top: 2x120mm / 1x140mm
Rear: 120mm
Radiator compatibility:
Front: 360mm / 280mm
Top: 240mm
Rear: 120mm
ACCESSORY KIT CONTENTS
CASE FEATURES
- TEMPERED GLASS SIDE PANEL
- DUST FILTERS
- 3x 120mm RGB FANS
- REMOVABLE SSD TRAYS
- HDD TRAYS
- SOLID SIDE PANEL
- FRONT BEZEL
- iCUE LIGHTING NODE CORE
REMOVING THE SIDE PANELS
INSTALLING THE MOTHERBOARD
INSTALLING HDDS
INSTALLING SSDS
INSTALLING PSU
INSTALLING PCI-e CARDS
REMOVING THE FRONT BEZEL
INSTALLING THE FRONT I/O CONNECTORS
CHANGING LOCATION OF THE iCUE LIGHTING NODE CORE
FREQUENTLY ASKED QUESTIONS
- Does the polarity matter with the I/O panel's power and reset header?
No, only the LED headers. - Who should I contact if I received my case damaged or one of the fans is no longer working?
Please go to support corsair.com and request an RMA so that we can replace the damaged part(s). - Where can I mount a fan?
| Fan mount locations | |
| Front | 3x120mm / 2x140mm |
| Top | 2x120mm / 1x140mm |
| Rear | 120mm |
To learn more about this case visit the product page at corsair.com.
