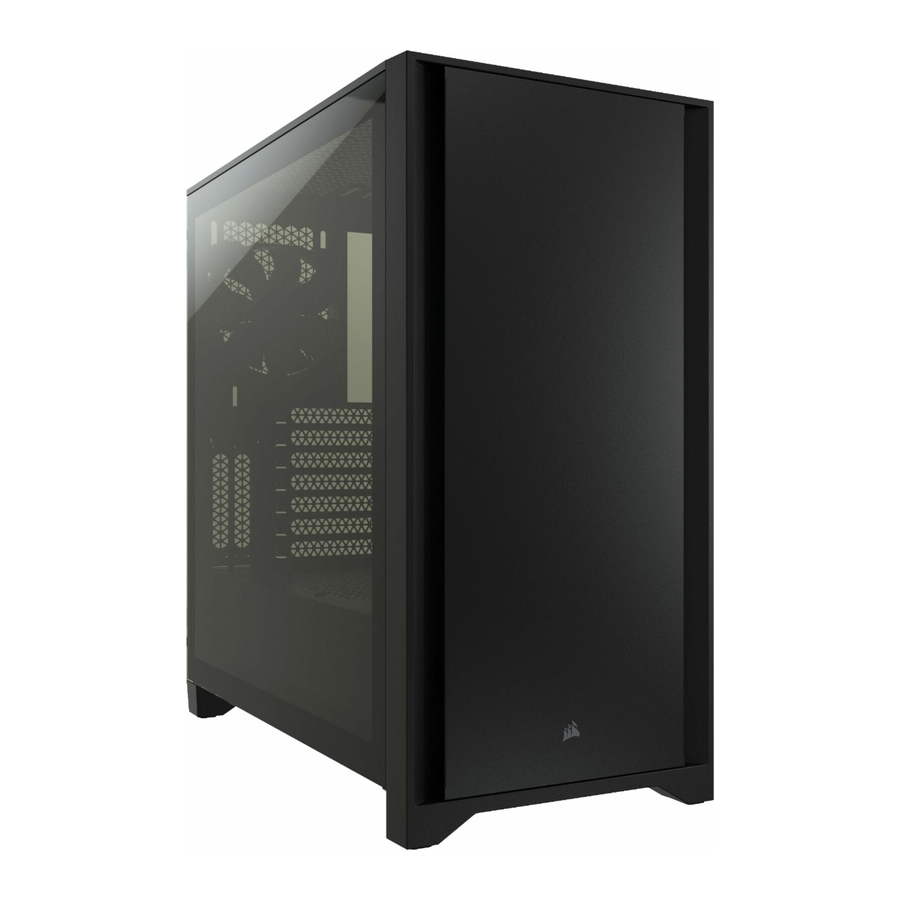

Corsair 4000D, 4000D AIRFLOW Manual

CASE SPECIFICATIONS

Length 453mm

Width 230mm

Height 466mm

Maximum GPU length 360mm

Maximum CPU height 170mm

Maximum PSU length 220mm

Fan locations:
Front 3x 120mm / 2x 140mm (1x 120mm included)
Top 2x 120mm / 2x 140mm
Rear 120mm (1x 120mm included)

Radiator compatibility:
Front 360mm / 280mm
Top 280mm with CORSAIR LPX DRAM / 240mm with all CORSAIR DRAM
Rear 120mm

ACCESSORY KIT CONTENTS

CASE FEATURES

CASE FEATURES

  1. TEMPERED GLASS SIDE PANEL
  2. 3x DUST FILTERS
  3. 2x 120MM FANS
  4. 2x SSD TRAYS
  5. 2x HDD TRAYS
  6. SOLID SIDE PANEL
  7. FRONT BEZEL

INTERCHANGEABLE SIDE PANELS

INTERCHANGEABLE SIDE PANELS

REMOVING THE SIDE PANELS

REMOVING THE SIDE PANELS

MOVING THE CABLE BAR

 MOVING THE CABLE BAR

INSTALLING THE MOTHERBOARD

INSTALLING THE MOTHERBOARD

INSTALLING HDDS

INSTALLING HDDS

MOVING THE HDD CAGE

MOVING THE HDD CAGE

INSTALLING SSDS

INSTALLING SSDS

INSTALLING PSU

INSTALLING PSU

INSTALLING PCI-e CARDS

 INSTALLING PCI-e CARDS

REMOVING THE FRONT BEZEL

REMOVING THE FRONT BEZEL

INSTALLING THE FRONT I/O CONNECTORS

INSTALLING THE FRONT I/O CONNECTORS

ACCESSORIES AVAILABLE FOR PURCHASE

FREQUENTLY ASKED QUESTIONS

  1. Does the polarity matter with the I/O panel's power and reset header?
    No, only the LED headers.
  2. Who should I contact if I received my case damaged or one of the fans is no longer working?
    Please go to support.corsair.com and request an RMA so that we can replace the damaged part(s).
  3. Where can I mount a fan?
Fan mount locations
Front 3x 120mm / 2x 140mm
Top 2x 120mm / 2x 140mm
Rear 120mm

To learn more about this case visit the product page at corsair.com.
