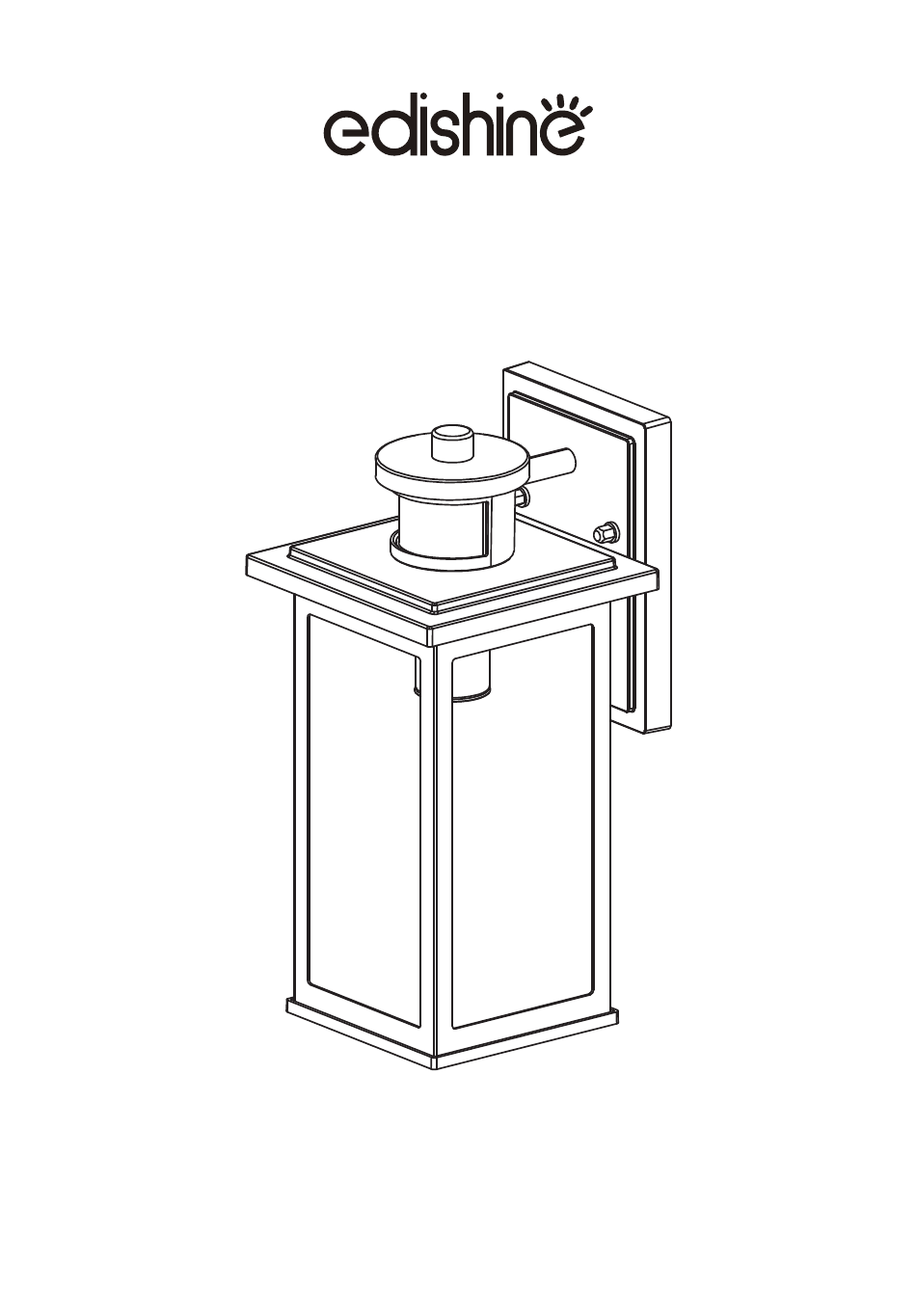

- Page 1 Outdoor Wall Light SKU: HOWL07E [Instruction Manual] Please pay attention to the warning signs Read the instructions with caution before operating and keep it properly V31013...
-
Page 2: Packing List
WARNING: Risk of fire. Min 75°C supply conductors. Consult a qualified electrician to ensure correct installation.Before installation, please turn off the main power of the circuit breaker to prevent possible electric shock. Packing List Part Description Quantity 2pcs Wall light 12”x6.5”x5.7”... - Page 3 FIG.3 FUSE BOX STEP 01: POWER OFF FIG.1. Turn the wall switch to the “OFF” position. Depending on which type of fuse box in your home: FIG.2. Either turn the main (Master) switch to the "OFF" position to cut off the power supply of the entire home, or turn off the individual switch that supplies power to the fixture installation location.
-
Page 4: Step 05: Power On
STEP 05: POWER ON Turn on the main (Master) switch to get the power back, the light will turn on automatically. The lamp structure is described as following picture: bulb not included... -
Page 5: Operation Description
Operation description 1.Turn on the light, wait 30 seconds for the sensor to warm up, then select one function. 2.Unscrew the top knob and top cover, then you can adjust different modes, sensitivity and delay time. Reinstall the top knob and cover after completing the setting to ensure waterproofing reliability, as shown in Figure 1~4. -
Page 6: Auto Mode
3.AUTO MODE - Set the slide switch to AUTO. The fixture will stay off at daytime and automatically turn on when human body activity is sensed at night. It automatically turns off when the person leaves or remains stationary for 20-180 seconds(according to the time you set). The factory preset time is 20s and the brightness is 100%. - Page 7 SENS - Adjust Sensing Distance: Adjust the “Sens” knob with a flat head screwdriver(Not Included). Turn clockwise to increase sensing distance, and counterclockwise to decrease the sensing distance. The factory preset distance is 10M(Maximum), you can adjust the “Sens” knob to set it in the range of 3-10 meters.
- Page 8 4.AUTO+ MODE: Set the slide switch to AUTO+.The fixture will stay OFF at daytime and stay low-level brightness (20%-50% brightness to be manually adjusted)at night if no motion is detected within 20-180 seconds，and automatically adjust the brightness to 100% when human body activity is sensed at night.
- Page 9 SENS - Adjust Sensing Distance: Adjust the “Sens” knob with a flat head screwdriver(Not Included). Turn clockwise to increase sensing distance, and counterclockwise to decrease the sensing distance. The factory preset distance is 10M(Maximum), you can adjust the “Sens” knob to set it in the range of 3-10 meters Fig.8 Flathead Screwdriver...
- Page 10 Fig.9 Flathead Screwdriver (not included) Slide Switch (Set to AUTO+ ) Detail A View 5.PC MODE:Lights off during the day and on at dusk. Other functions are out of work Fig.10 Slide Switch (Set to PC) Detail A View...
- Page 11 NOTE: 1. The sensitivity of the motion sensor will increase as the environmental temperature drops. For best performance, gently clean the lens with a soft cloth every 1 or 2 months to ensure maximum sensitivity. 2. The magnitude of adjustment for sensitivity and time may not precisely correspond to the amount of the knob being turned.
-
Page 12: Specifications
Specifications: - Input Voltage: 120VAC 60HZ - Max Load Power for Bulb : Incandescent Bulb 60W - Socket Type: Standard medium E26 ( bulb not included) - Materal: Die-casting Aluminum and Glass - Comply With: ETL One Year Limited Warranty Supported by our professional R&D team and QC team, we provide One Year Warranty for materials and workmanship from the purchase date.
