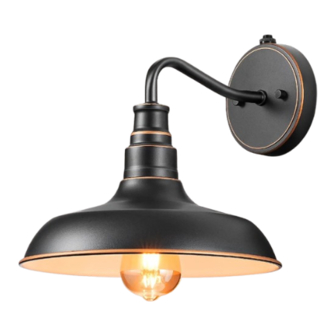

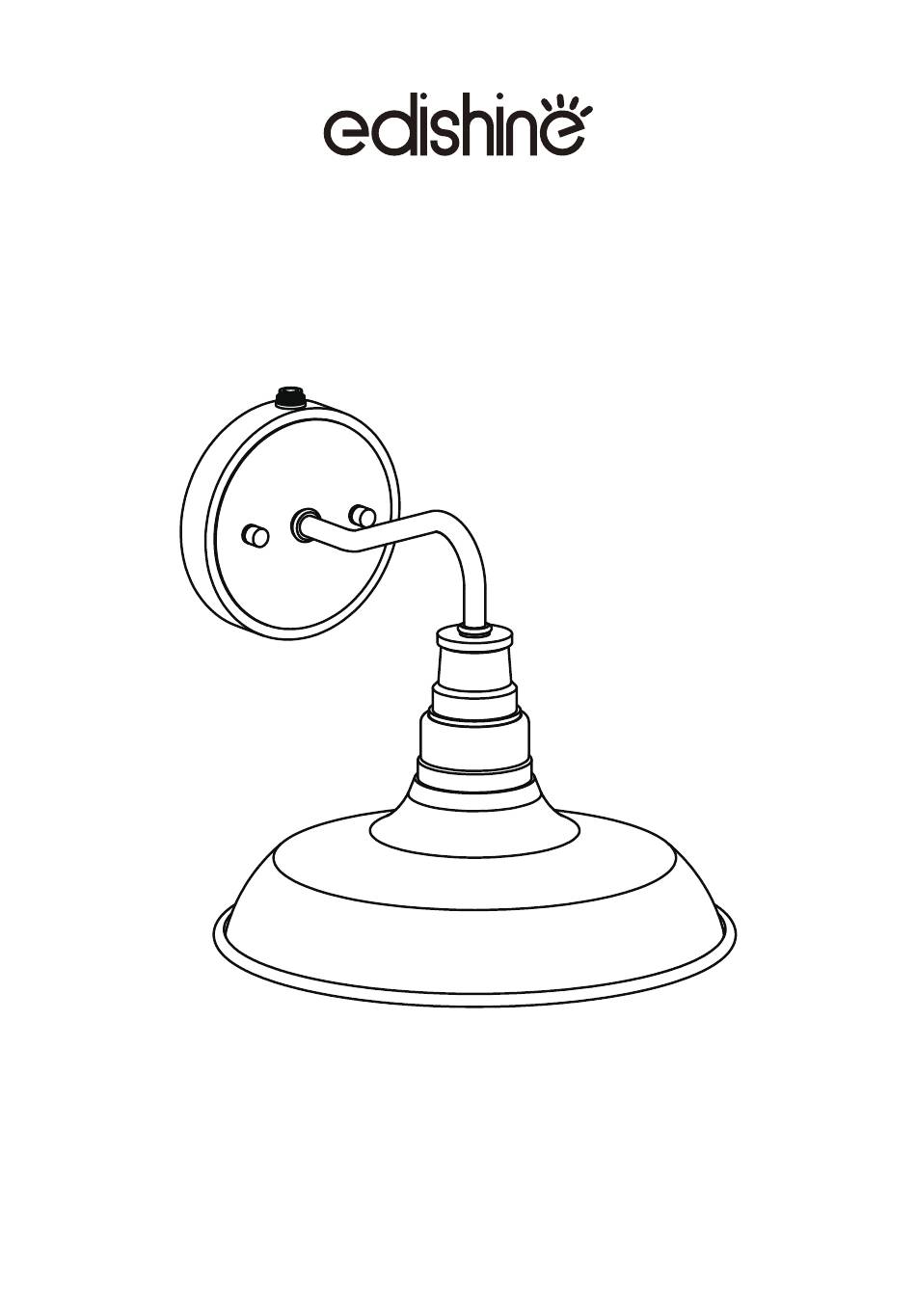

- Page 1 Outdoor Wall Light [Instruction Manual] Please pay attention to the warning signs Read the instructions with caution before operating and keep it properly V31110...
-
Page 2: Packing List
WARNING: Risk of fire. Min 75°C supply conductors. Consult a qualified electrician to ensure correct installation.Before installation, please turn off the main power of the circuit breaker to prevent possible electric shock. Mounting screw Packing List Part Description Quantity Wall light 10.73"(H)X10.95"(W)X12.69"(D) 2pcs Wire connectors... -
Page 3: Step 01: Power Off
FIG.3 FUSE BOX STEP 01: POWER OFF FIG.1. Turn the wall switch to the “OFF” position. Depending on which type of fuse box in your home: FIG.2. Either turn the main (Master) switch to the "OFF" position to cut off the power supply of the entire home, or turn off the individual switch that supplies power to the fixture installation location. - Page 4 STEP 04: FIX THE LIGHT (1)Take out all the parts in the package and place them on a clean surface. (2)Unscrew the BALL NUTS from the FIXTURE SCREWS,and use OUTLET BOX SCREWS to connect MOUNTING BAR to OUTLET BOX. (3)Use CONNECTORS to connect the BLACK WIRE of the FIXTURE to the BLACK WIRE of the OUTLET BOX, connect WHITE WIRE of FIXTURE to WHITE WIRE of OUTLET BOX, and connect the GROUND WIRE of the FIXTURE to the GROUND WIRE of the OUTLET BOX.
-
Page 6: Specifications
Specifications: - Input Voltage: 120VAC 60HZ - Max load Power for Bulb : Incandescent Bulb 60W( bulb not included) - Socket Type: Standard medium E26 - Material: Steel - Function : Dusk to Dawn Sensor - Comply With: ETL One Year Limited Warranty Supported by our professional R&D team and QC team, we provide One Year Warranty for materials and workmanship from the purchase date.
