Summary of Contents for edishine HOPL01A4

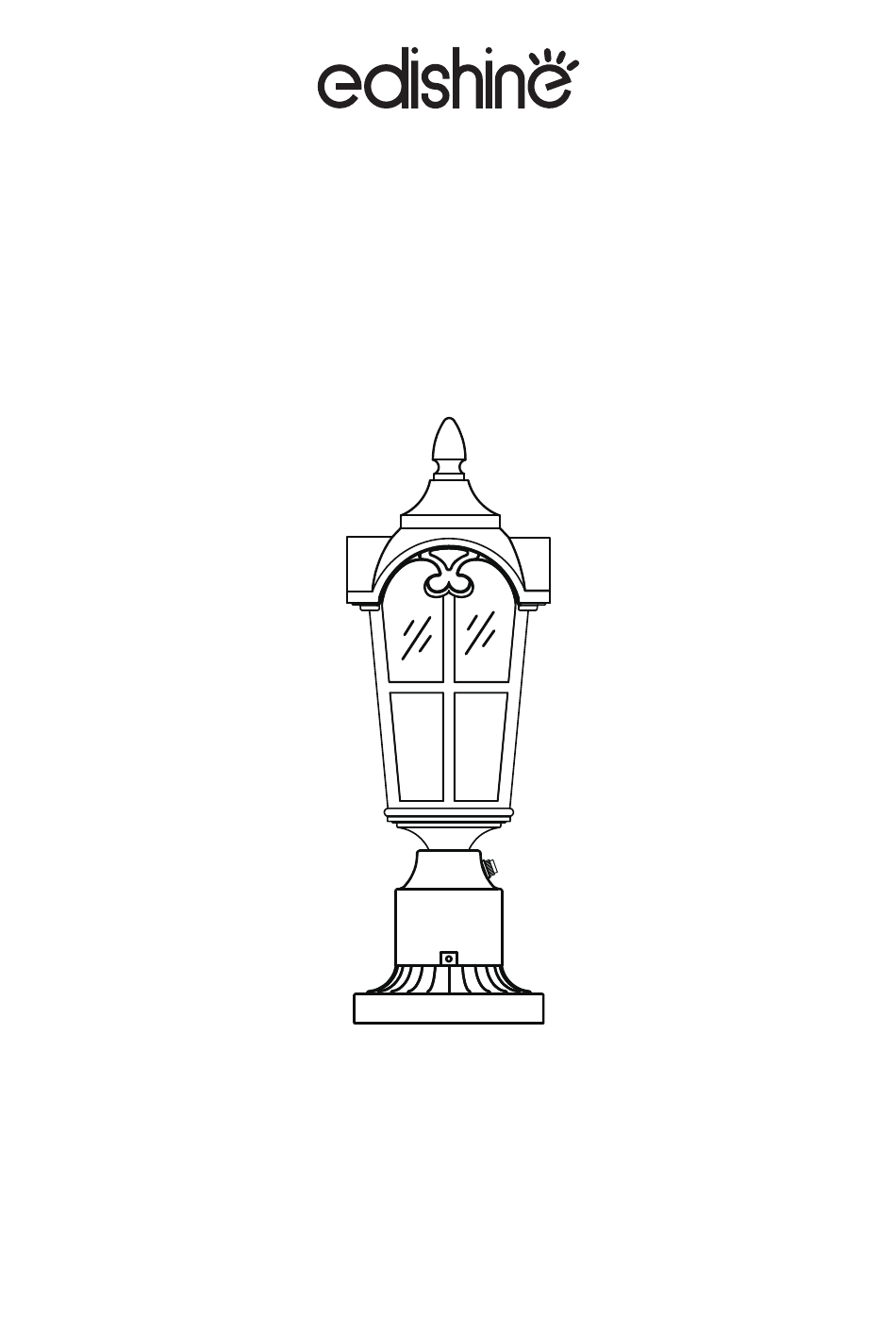

- Page 1 Outdoor Post light SKU: HOPL01A4 [Instruction Manual] Thank you for your purchase. Please contact us if you have any questions. We will get back to you within 24 hours. Please attach your Order ID so that we can serve you better.
- Page 2 Warning: Risk of fire. Min 75℃ supply conductors. Consult a qualified electrician to ensure correct installation.Before installation, please turn off the main power of the circuit breaker to prevent possible electric shock. 1.Packling list ITEM NAME SPEC. QUANTITY NOTE Bulb Not Post light 18.5”x6.3”x6.3”...
- Page 3 3.Installation Instructions FIG.1 WALL SWITCH FIG.2 BREAKER PANEL FIG.3 FUSE BOX STEP 01: POWER OFF FIG.1. Turn the wall switch to the “OFF” position. Depending on which type of fuse box in your home: FIG.2. Either turn the main (Master) switch to the "OFF" position to cut off the power supply of the entire home, or turn off the individual switch that supplies power to where the fixture will be installed.
- Page 4 STEP 02: CLEAN THE LIGHT Cleaning: Cleaning the glass and photocell sensor surface of the post light, with a soft and damp cloth.Dust will affect the sensitivity of photocell and brightness of the post light. STEP 03: CONNECT THE WIRE Connect black live wire, white neutral wire and ground wire with wire connectors,be sure that the wires are connected together sturdily.
- Page 5 TOP COVER BULB (NOT INCLUDED) GLASS SHADES PHOTOCELL SENSOR MOUNTING SCREWS PIER MOUNT BASE BLACK LIVE WIRE WHITE NEUTRAL WIRE GROUND WIRE EXPANSION BOLT...
- Page 6 4.Aftersales service EDISHINE warrants this product to be free from defects in material and workmanship for a period of one year from the date of purchase. Warranty is void if damage is caused by misuse or improper installation. Our dedicated customer service team will get back to you within 24 hours.
- Page 7 (6)Can this lamp be used outdoors in rainy and snowy weather? Yes. With a rubber pad at the top and a drainage hole at the bottom, the post light can discharge condensed water and other accidental water effectively.
