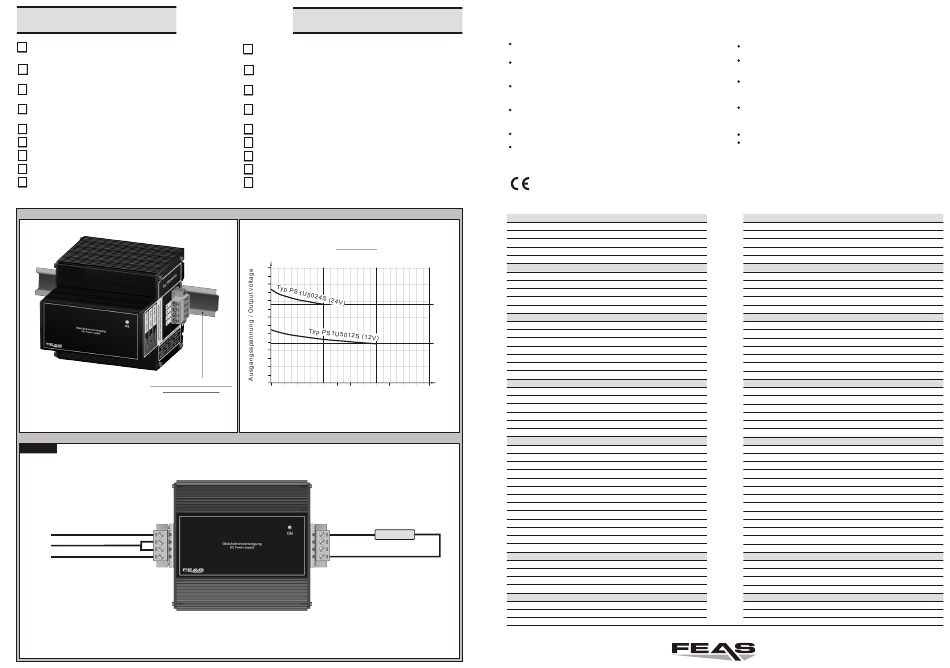

FEAS PS1U50S Operating Instructions

Advertisement

Quick Links

Betriebsanleitung
PS1U50S
Bitte sorgfältig beachten!
Technische Daten können dem Produkt zugehörigen
Datenblatt entnommen werden.
Die Geräte vom Typ PS1U50S sind anschlußfertige,
ungeregelte Netzgeräte.
Die Geräte sind für Netzspannungen von 115V~ geeignet.
Details siehe Zeichnung "Klemmenbelegung"
Die Geräte sind für sinusförmige Eingangsspannungen
ausgelegt.
Ausgang Potentialfrei nach VDE 0551
Tropentauglich - Gießharzvollverguß
Kurzschlußfest, überlast- und leerlaufsicher
Die grüne LED signalisiert den Betrieb des Gerätes.
Die Geräte eignen sich zur Montage auf 35mm Hutprofil-
schienen und zum anschrauben auf Montagefläche
Montage auf Hutschiene / Mounting on rail
Montage auf Hutschiene:
Mounting on rail:
Geeignet für
Hutschienenprofil
nach DIN 46277
Suitable for rail
acc. to DIN 46277
Klemmenbelegung / Terminal disposition
115 V~ :
AC-Eingang
Netzspannung
AC-input
line-voltage
115 V~
L1
PE
N
Operating instructions
Please observe carefully!
Technical data can be taken by the relevant product affilated
data-sheet.
The power supply units of the series PS1U50S are ready for
installation on delivery.
The units are constructed for 115V~ input voltage Details are
shown by "Terminal disposition".
The units are constructed for sinus-oidal input voltage.
Output separated according to VDE 0551
Suitable for the tropics - Epoxy resin casted
Short- circuit proof and no-load safe
The correct operation of the unit is indicated by the green LED.
The power supplies are suitable to be fitted on 35mm DIN-rail
as well to be screwed on any mounting-surface
Laststromdiagramm / Load-current diagram
PS1U50S
Volt DC
bei nominaler Eingangsspannung
at nominal input voltage
35
30
25
20
15
10
5
0
0,5
1,0 1,5
2,5 3,0
3,5
4,0 4,5
5,0 5,5
0
2,0
6,0
Ausgangsstrom / Output current
DC-Ausgang
DC-output
Verbraucher
consumer
+
-
+
U
out
-
Allgemeine Sicherheitsvorschriften :
Beim Umgang mit Produkten, die mit elektrischen Spannungen in Berührung kommen, müssen die
gültigen VDE / IEC / EN Vorschriften beachtet werden. Besonders sei auf folgende Vorschriften
hingewiesen:
VDE 0100, VDE 0550 / 0551, VDE 0711, VDE 0860, IEC 664, IEC 742, IEC 570, IEC 65
Bei Nichtbeachtung der Bedienungsanleitung oder der Anschlußvorschrift, z.B. bei
Vertauschen der Anschlußklemmen, kann das Gerät oder die Anlage beschädigt werden und
der Betreiber verliert seinen möglichen Haftungsanspruch.
Werkzeuge dürfen an Geräten, Bauteilen oder Baugruppen nur benutzt werden, wenn
sichergestellt ist, daß die Geräte von der Versorgungsspannung getrennt
sind und elektrische Ladungen die in im Gerät befindlichen Bauteile gespeichert
sind, vorher entladen wurden.
Vor dem Öffnen des Gerätes den Netzstecker ziehen oder sicherstellen, daß das Gerät
stromlos ist. Bauteile, Baugruppen oder Geräte dürfen nur in Betrieb genommen werden,
wenn sie vorher in ein berührungssicheres Gehäuse eingebaut wurden. Während des
Einbaus müssen sie stromlos sein.
Spannungsführende Kabel oder Leitungen mit denen das Gerät, das Bauteil oder die
Baugruppe verbunden sind müssen stets auf Isolationsfehler oder Bruchstellen untersucht
werden. Bei Feststellen eines Fehlers in der Zuleitung muß das Gerät unverzüglich aus dem
Verkehr genommen werden, bis die defekte Leitung ausgewechselt worden ist.
Der Anwender hat dafür Sorge zu tragen, daß die angegebenen Gerätedaten nicht
überschritten werden.
Wenn aus den vorgelegten Beschreibungen für den Anwender oder Erwerber nicht eindeutig
hervorgeht, welche Kennwerte für ein Gerät oder Bauteil gelten, so muß stets ein Fachmann
um Auskunft ersucht werden.
Im übrigen unterliegt die Einhaltung von Bau- und Sicherheitsvorschriften aller Art ( VDE, TÜV,
Berufsgenossenschaften ) dem Anwender / Käufer.
- konform
Technische Daten
Eingangsgrößen
Eingangsspannung
115Vac
Frequenz
45 - 66 Hz
Eingangsspannungstoleranz
+15% und -15%
Eingangsstrom
V - max. 500 mAmp.
115
Verbrauch
max. 48 VA
Ausgangsgrößen
Ausgangsspannungen U
Siehe Gehäuseaufdruck des Gerätes
Nenn
Einstellbereich
-
Ausgangsstrom I
Siehe Gehäuseaufdruck des Gerätes
Nenn
Einsatz der Strombegrenzung
-
24V
Restwelligkeit
< 2%
Betriebsdaten
Einschaltdauer (ED)
100%
Arbeitstemperatur
- 30°C bis +80°C
Temperaturkoeffizient
< 500ppm / K
12V
Lagertemperaturbereich
-30°C...+105°C
Wirkungsgrad
ca. 92%
Leistungsabweichung bei Temp.
-
Kühlung
natürliche Konvektion (S)
Schutzeinrichtungen
Amp.
Vorsicherung
bei 115 Volt - 0,65 Amp. träge
Strombegrenzung
-
Ausgangssicherung
Im Gerät integriert
Überlastschutz
-
Netzausfallüberbrückung
20 mSek. typ.
MTBF
>400.000 h
Sicherheitsdaten
Prüfspannung Trafo
5 kVac gemäß VDE 0551
Hochspannungsfestigkeit
Eingang / Ausgang 3,75 kVac
nach VDE 0806 / IEC 380
Luft- und Kriechstrecken
Primärkreis - Sekundärkreis >8mm
nach VDE 0110
Funkenentstörgrad
< K nach VDE 0875 und VDE 0877
Anwendungsklasse
KSE nach DIN 40040
Umgebungsfeuchte
95% relative Feuchte im Jahresdurchschnitt,
Betauung möglich - tropentauglich
Schutzart Gehäuse
IP 40
Schutzart Klemmen
IP 20 (VGB4)
Rüttelfestigkeit
>30g bei 33Hz in X, Y und Z,
nach IEC 68 und DIN 41640
Angewandte Bauvorschriften
gemäß VDE
VDE 0100, 0110, 0113, 0551, 0160, 804-8
IEC
IEC 380, 742, 950
EN
EN 60950, EN50081, EN50082
CSA / UL
CSA 22.2 UL1012
Mechanik
Befestigung
Auf Schiene nach DIN 46277 oder aufschraubbar
Maße
105mm x 90mm x 75mm (BxHxT)
Gewicht
ca. 1,54 kg
General safety rules :
When working with products which are in contact to dangerous electrical voltages, attention must
be payed to the relevant valid VDE / IEC / EN regulations. Especialy with refrence to the following
rules:
VDE 0100, VDE 0550 / 0551, VDE 0711, VDE 0860, IEC 664, IEC 742, IEC 570, IEC 65
In case of non-observance of this instructions, the unit or other equipment might be damaged
and no warranty or liability could be accepted.
When it is necessary to use tools with the units, components parts or subassemblies make it
sure, that the power is disconnected from the units and all electric charge which is stored in
components inside the unit are discharged.
Before opening the equipment disconnect the power cord or make sure, that the power is off
and the unit is currentless. It is only allowed to set components parts, subassemblies or units
into operation, if they are mounted in a shockproof housing. During the installation the unit
has to be currentless and the power has to be off.
Lifeparts (power cords and leads) which are connected to the units, components or
subassemblies have to be inspected for damage insulation or breaking. If a failure at the
power cord is detected the unit or the subassembly has to be put out of service at once. It is not
allowed to reopen the unit or the subassembly before replacing the damaged power cord.
It is the user's responsibility to see that the marginal values of the equipment are not exeeded.
If it is not to distinguished for the not industrial ultimate user by the presented operating
instruction, which electrical data are the correct for the unit or the subassembly, a technical
adviser has always to be asked for technical information.
The observance of construction requirements and safety rules (VDE, IEC, employers liability
insurenance i.e.) is subject to the user/customer.
Technical Data
Input data
Input voltage
115Vac
Frequency
45 - 66 Hz
Input voltage tolerance
+15% and -15%
V - max. 500 mAmp.
Input current
115
Consumption
max. 48 VA
Output data
Output voltage U
see face plate
nomnal
Rang of adjustment
-
Output current
see face plate
Start of current limiting
-
Residual ripple (100Hz)
< 2%
Operating data
Starting time
100%
Operating temperature
-30°C to +80°C
Temperature coefficient
< 500 ppm / K
Storage temperature range
-30°C...+105°C
Efficiency
ca. 92%
Derating
-
Cooling
selfcooling (S)
Safety devices
Fuse recomended for input
for 115 Volt - 0,65 Amp. delayed
Current limiting
-
Output fuse
integrated into device
Overload protection
-
Hold-up time
20 msec. typical
MTBF
> 400.000 h
Safety data
Test voltage transformer
5 kVac in accordance to VDE 0551
High-voltage resistance
Primary circuit - secondary circuit 3,75 kVac
acc. to VDE 0806 / IEC 380
Air gaps and leakage paths
Primary circuit - secondary circuit >8mm
acc. to VDE 0110
Degree of EMI suppression
< K in accordance to VDE 0875 and VDE 0877
Class of application
KSE according to DIN 40040
Ambient humidity
95% rel. humidity, yearly average dewing
allowed for use in tropical ambient
Protective class enclosure
IP 40
Protective class terminals
IP 20 (VGB4)
Vibration proof
>30g at 33Hz in X, Y and Z,
acc. to IEC 68 and DIN 41640
Applied construction regulations
according to VDE
VDE 0100, 0110, 0113, 0551, 0160, 804-8
IEC
IEC 380, 742, 950
EN
EN 60950, EN50081, EN50082
CSA / UL
CSA 22.2 UL1012
Mechanics
Mounting
on rail acc. to DIN 46277 or with screws
Dimensions
105mm x 90mm x 75mm (W x H x D)
Weight
ca. 1,54 kg
Postfach 1521
Telefon: 04102 - 42082
Telefax: 04102 - 40930
GmbH
D - 22905 AHRENSBURG
www.feas.de
