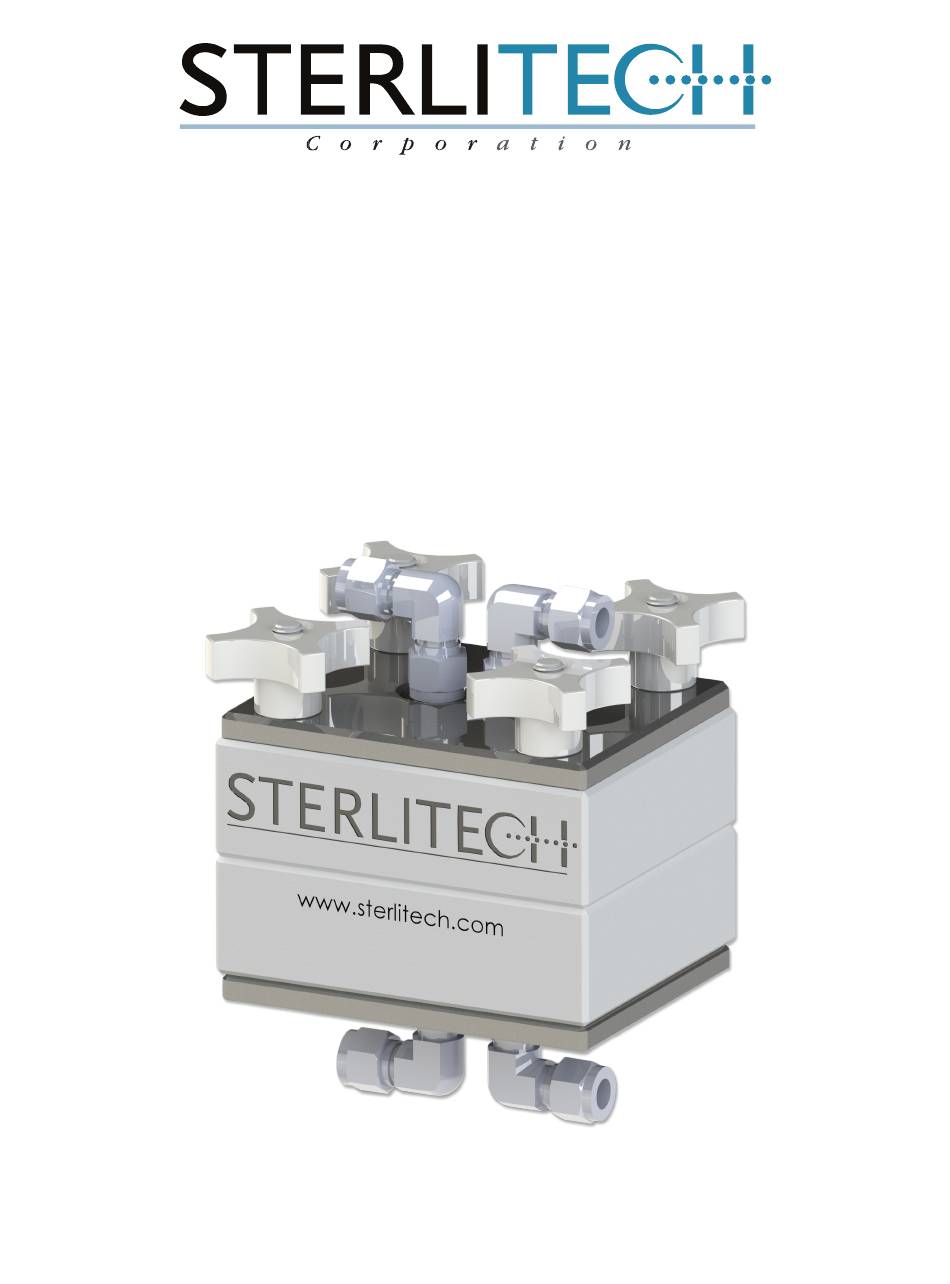

- Page 1 CF016D-FO CELL ASSEMBLY & OPERATION MANUAL...
-
Page 3: Table Of Contents
2. CF016D-FO CELL COMPONENTS ............1 3. CF016D-FO CELL ASSEMBLY ............... 2 4. CF016D-FO CELL CONNECTIONS AND PARTS ........4 5. OPERATION OF THE CF016D-FO CELL ..........5 6. SUPPLEMENTARY OPERATING INFORMATION ......6 7. ACCESSORY AND SPARE PART ORDERING INFORMATION ...7 8. -
Page 4: Introduction
1. INTRODUCTION The CF016D-FO Cell is a laboratory-scale filtration unit that is designed to evaluate a variety of engineered osmosis processes, including Forward Osmosis (FO), and Pressure Retarded Osmosis (PRO). It simulates the flow dynamics of larger, commercially available membrane elements such as industrial spiral wound membrane elements. Users can vary the operating conditions and fluid dynamics over broad ranges. -
Page 5: Cf016D-Fo Cell Assembly
3. CF016D-FO CELL ASSEMBLY Figure 1: CF016D-FO Cell Body Assembly Legend: 1. Tightening Knobs 2. Top Plate 3. Cell Top 4. O-Rings 5. Cell Bottom 6. Bottom Plate CF016D-FO Cell Manual | Sterlitech Corporation... - Page 6 4. Secure the cell top by inserting and tightening the provided tightening knobs into each of the corner holes. The CF016D-FO Cell is now assembled and ready to be connected to a feed pump for operation. Sterlitech Corporation | CF016D-FO Cell Manual...
-
Page 7: Cf016D-Fo Cell Connections And Parts
4. CF016D-FO CELL CONNECTIONS AND PARTS Figure 2: Example CF016D-FO Flow Diagram CF016P/ CF016D FO FLOW DIAGRAM Item No. Part Description Feed Tank Feed Pump Draw Solution Tank Draw Solution Pump Concentrate Pressure Control Valve Draw Solution Pressure Control Valve... -
Page 8: Operation Of The Cf016D-Fo Cell
5. OPERATION OF THE CF016D-FO CELL Once the CF016D-FO Cell has been assembled and connected to a feed system, it can be used in variety of applications that includes forward osmosis and pressure retarded osmosis. -
Page 9: Supplementary Operating Information
6.1 MEMBRANE PERFORMANCE Parameters such as viscosity, pressure, and suspended solids may also affect performance/operation. Experimentation with the CF016D-FO Cell can help predict the best operating parameters. If your pump is delivering too much flow, a portion of the flow can be diverted back to the feed container before entering the feed inlet of the cell body. -
Page 10: Accessory And Spare Part Ordering Information
7. ACCESSORY AND SPARE PART ORDERING INFORMATION Accessories and spare parts for the CF016D-FO Cell can be ordered by calling Sterlitech Corporation at 1-877-544-4420 or by visiting www.sterlitech.com. Table 3: Accessory and Spare Part Ordering Information Product Shipping Weight Ordering Number... -
Page 11: Return Material Authorization
8. RETURN MATERIAL AUTHORIZATION If materials are to be returned to Sterlitech for repair, evaluation, or warranty consideration, a Return Material Authorization (RMA) number and form must be obtained from Sterlitech prior to the return. Contact Sterlitech’s Customer Service Department for these forms. -
Page 12: Appendix 1: Cf016D-Fo Cell Applications
APPENDIX 1: CF016D-FO CELL APPLICATIONS The following studies utilized the CF042 Cell in their method and are listed here to illustrate the potential applications for the CF016-FO. These studies are good references for understanding the operation of the CF016D-FO Cell. APPLICATION STUDY CITATION Forward Osmosis and Low Yangali-Quintanilla, Victor, Zhenyu Li, et al. -
Page 13: Appendix 2: Sterlitech Bench Scale Filtration Products
APPENDIX 2: STERLITECH BENCH SCALE FILTRATION PRODUCTS CF016D-FO Cell Manual | Sterlitech Corporation... - Page 14 NOTES:...
- Page 15 Sterlitech’s bench scale test equipment provides the versatility required to innovate. Sterlitech’s comprehensive line of products is supported by the expertise of its technical specialists who can assist with application-specific product selection, and provide customized solutions where necessary. Unique problem-solving approaches, flexibility, and consistent quality have made Sterlitech Corporation a renowned global provider of filtration products and equipment.
- Page 16 © 2018 Sterlitech Corporation 22027 70th Ave. S Kent, WA 98032-1911 USA Phone: (253) 437-0844 Fax: (253) 437-0845 Email: sales@sterlitech.com...
