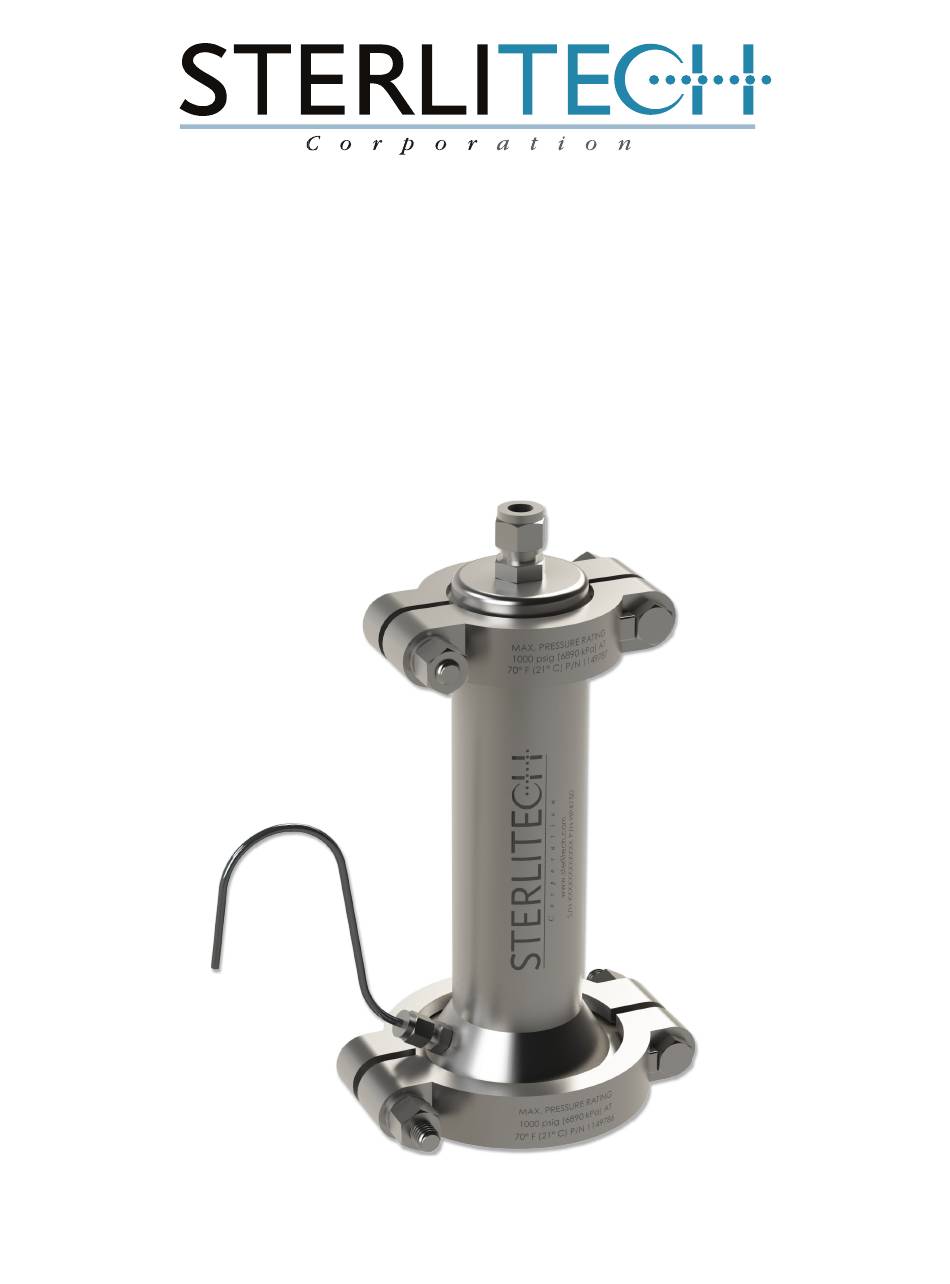

  • Page 1 HP4750 ASSEMBLY & OPERATION MANUAL...

  • Page 3: Table Of Contents

    1. INTRODUCTION ..................1 2. BEFORE ASSEMBLY ................2 3. STIRRED CELL ASSEMBLY ..............3 4. OPERATION OF THE HP4750 STIRRED CELL ........6 5. HP4750 EXAMPLE SYSTEM CONFIGURATION ....... 8 6. ACCESSORY AND SPARE PART ORDERING INFORMATION ..9 7. O-RING CHEMICAL COMPATIBILITY ........... 10 8.

  • Page 4: Introduction

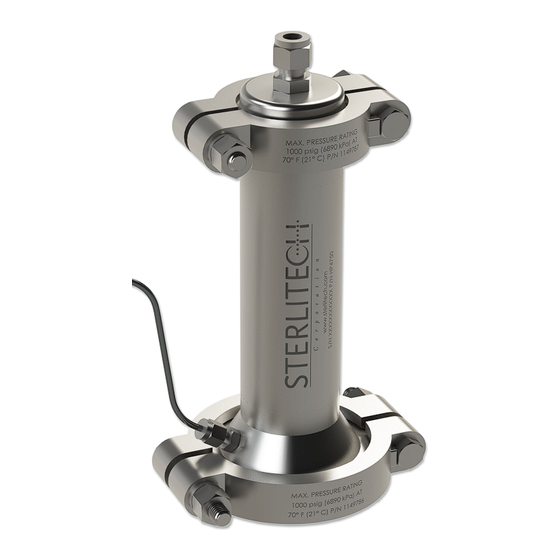

    The HP4750 Stirred Cell is a high-pressure, chemically resistant stirred cell that performs a wide variety of membrane separations. With a maximum pressure rating of 1000 psig (69 bar), the HP4750 Stirred Cell is ideally suited for reverse osmosis (RO) filtration, nanofiltration (NF), ultrafiltration (UF), and microfiltration (MF) separations. Stainless steel (316L) construction and chemically resistant components make the HP4750 Stirred Cell an ideal choice to filter aqueous and non-aqueous solutions.

  • Page 5: Before Assembly

    4. Cell Top Coupling 5. Cell Bottom Coupling 6. Porous Stainless Steel Membrane Support Disk 7. 2 O-rings 8. Top Gasket 9. Permeate Tube 10. Stir Bar Assembly 11. Stir Bar Retriever Figure 1: HP4750 Components HP4750 Cell Manual | Sterlitech Corporation...

  • Page 6: Stirred Cell Assembly

    After verifying that all of the necessary components were shipped and present, you can begin the assembly of the stirred cell. To assemble the HP4750 stirred cell: 1. Wet the O-rings with a small amount of water or the fluid to be processed.
  • Page 7 Photo 5: Cell Bottom Assembly 7. Insert Permeate Tube into side of cell body, tighten using a wrench (Photo 7). Note: The HP4750 uses Swagelok connection fittings. More detailed instructions, information and images of the fittings can be found in Appendix 1.
  • Page 8 10). Tighten the high pressure coupling with 16 foot pounds of torque for 1000 psig (69 bar) operation (Photo 11). After both clamps are properly attached, the HP4750 Stirred Cell should be centered on top of a magnetic stirrer. Photo 10: Cell Top Attachment...

  • Page 9: Operation Of The Hp4750 Stirred Cell

    4. OPERATION OF THE HP4750 STIRRED CELL 1. Attach a high pressure hose (sold separately, Sterlitech Part Number: 1151427) to the fitting on the Cell Top (Photo 12). 2. Connect the other end of the hose to the pressure regulator assembly on the inert gas supply or the compressed air supply.
  • Page 10 Do not depressurize the HP4750 Stirred Cell by loosening the couplings. Photo 16: Pressure Relief Valve 7. Once it is depressurized and empty, the HP4750 Stirred Cell can be cleaned with a variety of cleaners, including detergents, solvents, caustic, acid, enzyme cleaners, etc.

  • Page 11: Hp4750 Example System Configuration

    5. HP4750 EXAMPLE SYSTEM CONFIGURATION Figure 3 illustrates the typical configuration of a standard HP4750 Stirred Cell System. The drawing shows the three major components of the system: the Cell Body with removable top and bottom, Stir Bar Assembly, and Standard Coupling.

  • Page 12: Accessory And Spare Part Ordering Information

    6. ACCESSORY AND SPARE PART ORDERING INFORMATION Accessories and spare parts for the HP4750 can be ordered by calling Sterlitech Corporation at 1-877-544-4420 or by visiting www.sterlitech.com. Table 2: Accessory and Spare Part Ordering Information Product Shipping Weight Ordering Number HP4750 Stirred Cell, for operation to 69 3.8 kg (8 lbs)

  • Page 13: O-Ring Chemical Compatibility

    Operating conditions and environment must also be considered in determining the media suitability. For recommendations regarding fluids not listed, consult Sterlitech. The recommendations represent compatibility of materials only and do not necessarily constitute a recommendation for use in a specific application.

  • Page 14: Return Material Order Procedure

    8. RETURN MATERIAL AUTHORIZATION If materials are to be returned to Sterlitech for repair, evaluation, or warranty consideration, a Return Material Authorization (RMA) number and form must be obtained from Sterlitech prior to the return. Contact Sterlitech’s Customer Service Department for these forms.

  • Page 15: Appendix 1: Compression Connections

    3. Tighten the nut by hand. Rotate nut to the original position with a wrench. An increase in resistance will be encountered at the original position. Then tighten slightly with the wrench. HP4750 Cell Manual | Sterlitech Corporation...

  • Page 16: Appendix 2: Membrane Cutting And Conditioning

    APPENDIX 2: MEMBRANE CUTTING AND CONDITIONING Sterlitech offers a wide variety of membranes that have been pre-cut for use with the HP4750. However, if you need cut your own membrane for use with the HP4750 Stirred Cell, then you will need the following items: •...

  • Page 17: Appendix 3: Preconditioning Membrane Disc Filters

    APPENDIX 3: PRECONDITIONING MEMBRANE DISC FILTERS To precondition the membrane: 1. Load the membrane into the HP4750 Stirred Cell. 2. Fill the stirred cell with deionized water and pressurize the cell. The temperature of the water and the pressure used should be the same as the temperature and pressure that will be used in the actual trials.

  • Page 18: Appendix 4: Hp4750 Bibliography

    APPENDIX 4: HP4750 BIBLIOGRAPHY The following studies utilized the HP4750 Stirred Cell in their method and are listed here to illustrate the potential applications for the HP4750. These studies are good references for understanding the operation of the HP4750 Stirred Cell.

  • Page 19: Appendix 5: Bench Scale Filtration Products

    APPENDIX 5: STERLITECH BENCH SCALE FILTRATION PRODUCTS HP4750 Cell Manual | Sterlitech Corporation...
