Summary of Contents for Sterlitech CF042D Cell

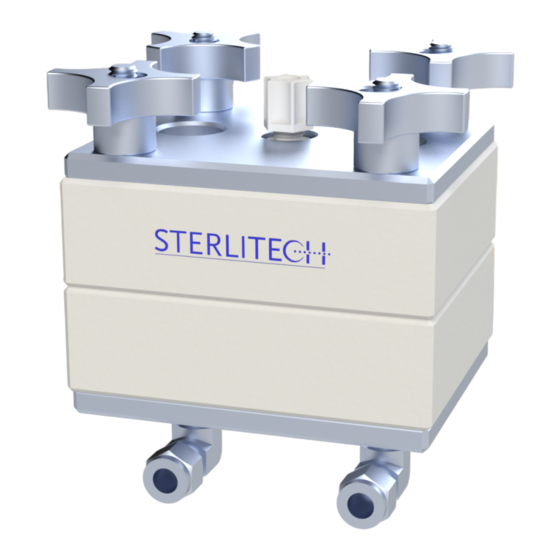

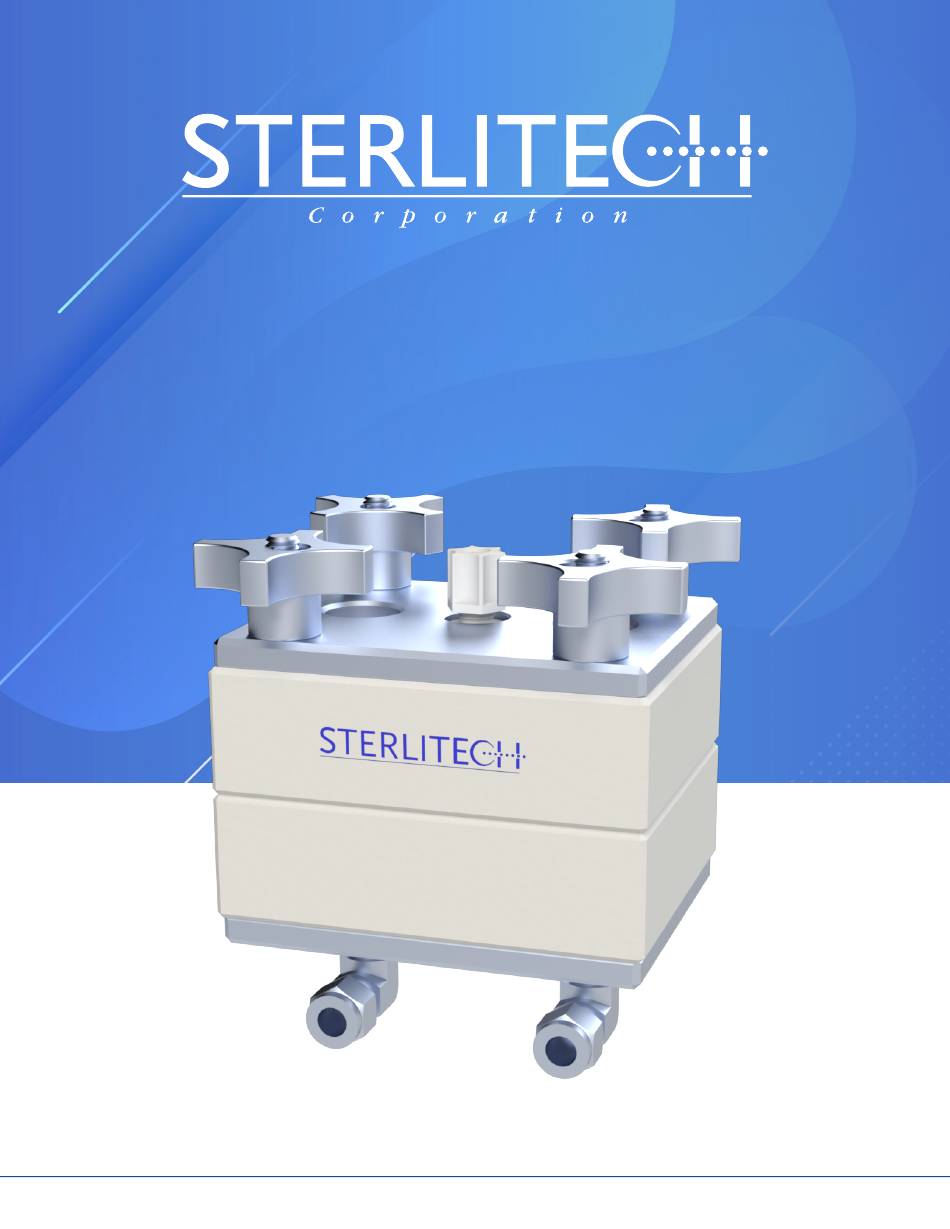

- Page 1 CF042D Cell Assembly & Operation Manual www.sterlitech.com info@sterlitech.com 1-877-544-4420 Copyright © 2024...
- Page 2 Contents Table of Contents ....................Introduction ................CF042D Cell Components ................. CF042D Cell Assembly ..............CF042D Cell Connections and Parts ..................Operation of the Cell ............Supplementary Operating Information Accessory and Spare Part Ordering Information ........................Return Material Authorization ....................
- Page 3 CF042D Cell Components Figure 1 (see Page 4) illustrates a typical assembly of the CF042D Cell. The cell is also packaged with a length of permeate tubing and membrane cutting template.
- Page 4 Membrane Various Spacers** Polypropylene Shims** 316 Stainless Steel O-Rings Buna-N* Cell Bottom Acetal Copolymer (Delrin) Inlet/Outlet Fittings 316 Stainless Steel Permeate Tubing Polypropylene Standard, Other Materials Available Not Included, Available for purchase CF042D Cell www.sterlitech.com info@sterlitech.com 1-877-544-4420 Copyright © 2024...
- Page 5 0.09”. Note: Shims and Spacers are not included with a CF042D Cell purchase. Place a piece of pre-cut membrane onto the cell bottom using the two alignment pins to hold the membrane in position. The membrane should be installed with the shiny side (active side) down, toward the cavity in the cell bottom.
- Page 6 The CF042D Cell requires a cross flow system to operate, such as a Benchtop System Skid System. Alternatively, Figure 2 lists the key components required to operate a CF042D cell. These components are sold separately and can be found here. Figure 2: Cross Flow System Diagram for CF042D Cell...
- Page 7 Operation of the Cell Operation of the CF042D Cell To operate the CF042D Cell: Open all the valves in the system to relieve any pressure build-up before turning on the feed pump. Turn the system ON and set the feed pump to desired flow rate.
- Page 8 Experimentation with the CF042D Cell can help predict the best operating parameters. Cell and Membrane Cleaning The CF042D Cell can be cleaned with or without the membrane installed. Leave the membrane installed to simulate the cleaning conditions of Clean-In-Place (CIP), a common practice in larger systems with spiral-wound or tubular membranes.
- Page 9 This information is not intended as a license to operate under, or a recommendation to infringe upon, any patent of Sterlitech or others covering any material or use.The foregoing may not be altered except by a written agreement signed by officers of the manufacturer.
- Page 10 Sterlitech’s benchtop cross flow membrane test system provides the versatility required to innovate. Sterlitech’s comprehensive line of products is supported by the expertise of its technical specialists who can assist with application-specific product selection, and provide customized solutions where necessary. Unique problem-solving approaches, flexibility, and consistent quality have made Sterlitech Corporation a renowned global provider of filtration products and equipment.
