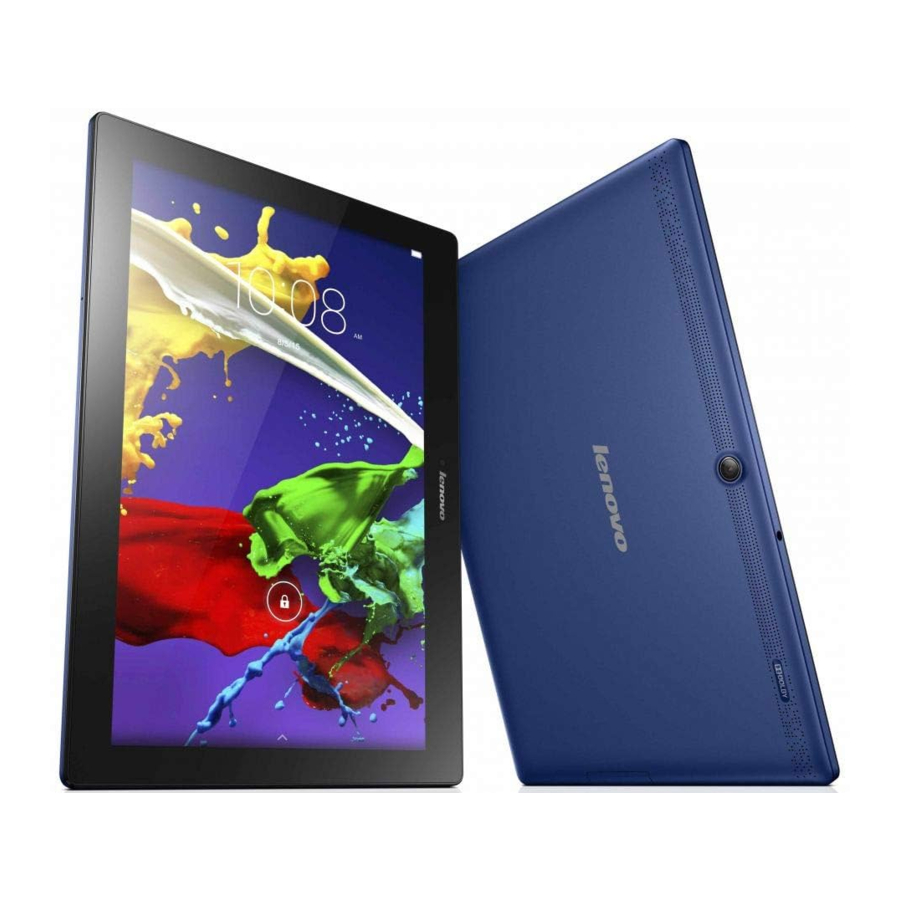

Lenovo TAB 2 A10-70 / A10-70L / A10-70F Manual

First glance

1. Front camera
2. Earphone jack
3. On/Off button
4. Volume key
5. Micro USB
6. Microphone
7. *Micro SIM card slot
8. microSD card slot
9. Speaker
10. Back camera

The WLAN model (Lenovo TAB 2 A10-70F) does not have a Micro SIM card slot.

Preparing your Lenovo TAB 2 A10-70

You can use cellular services with the WLAN + LTE model (Lenovo TAB 2 A10-70L) by inserting the Micro SIM card provided by your carrier.

Install the Micro SIM card and the microSD card as shown.

Step 1. Open the card slot cover.

Step 2. Place the SIM card into the SIM card slot and the microSD card into the microSD card slot.

Step 3. Carefully replace the slot cover.

Only Micro SIM card works with your Lenovo TAB 2 A10-70L.

!!! DO not insert or remove the Micro SIM card while your Lenovo TAB 2 A10-70L is turned on. Doing so can permanently damage your Micro SIM card or Lenovo TAB 2 A10-70L.

Starting to use your Lenovo TAB 2 A10-70

Before using your Lenovo TAB 2 A10-70, you might need to charge the battery. Charge the battery as shown.

Connect your Lenovo TAB 2 A10-70 to a power outlet using the included cable and USB power adapter.

Low battery
Fully charged
Charging

Read before using your tablet

The following sections provide critical safety and regulatory information for Lenovo tablets and instructions on how to access electronic versions of the publications developed for your tablet.

Service and Support information

The following information describes the technical support that is available for your product, during the warranty period or throughout the life of your product. Refer to the

Lenovo Limited Warranty for a full explanation of Lenovo warranty terms. See "Lenovo Limited Warranty notice" later in this document for details on accessing the full warranty.

Online technical support
Online technical support is available during the lifetime of a product at http://www.lenovo.com/support.

Telephone technical support
You can get help and information from the Customer Support Center by telephone. Before contacting a Lenovo technical support representative, please have the following information available: model and serial number, the exact wording of any error message, and a description of the problem.

Your technical support representative might want to walk you through the problem while you are at your device during the call.

Worldwide Lenovo Support telephone list

Telephone numbers are subject to change without notice. The most up-to-date telephone list for the Customer Support Center is always available at http://www.lenovo.com/support/phone.

If the telephone number for your country or region is not listed, contact your Lenovo reseller or Lenovo marketing representative.

Important safety and handling information

Plastic bag notice

Plastic bags can be dangerous. Keep plastic bags away from babies and children to avoid danger of suffocation.

Built-in rechargeable battery notice

Do not attempt to replace the internal rechargeable lithium ion battery. Contact Lenovo Support for factory replacement.

Polyvinyl Chloride (PVC) cable and cord notice

Handling the cord on this product or cords associated with accessories sold with this product will expose you to lead, a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling.

Prevent hearing damage
Your device has a headphone connector. Always use the headphone connector for headphones (also called a headset) or earphones.

Excessive sound pressure from earphones and headphones can cause hearing loss. Adjustment of the equalizer to maximum increases the earphone and headphone output voltage and the sound pressure level. Therefore, to protect your hearing, adjust the equalizer to an appropriate level.

Excessive use of headphones or earphones for a long period of time at high volume can be dangerous if the output of the headphone or earphone connectors do not comply with specifications of EN 50332-2.

The headphone output connector of your device complies with EN 50332-2 Sub clause 7. This specification limits the device's maximum wide band true RMS output voltage to 150 mV. To help protect against hearing loss, ensure that the headphones or earphones you use also comply with EN 50332-2 (Clause 7 limits) for a wide band characteristic voltage of 75 mV. Using headphones that do not comply with EN 50332-2 can be dangerous due to excessive sound pressure levels.

If your device came with headphones or earphones in the package, as a set, the combination of the headphones or earphones and the device already complies with the specifications of EN 50332-1. If different headphones or earphones are used, ensure that they comply with EN 50332-1 (Clause 6.5 Limitation Values). Using headphones that do not comply with EN 50332-1 can be dangerous due to excessive sound pressure levels.

Sound pressure warning statement
For the device that is tested in accordance with EN 60950-1:

2006+A11:2009+A1:2010+A12:2011, it is mandatory to perform audio tests for EN50332.

This device has been tested to comply with the Sound Pressure Level requirement laid down in the applicable EN 50332-1 and/or EN 50332-2 standards. Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time.

Warranty period and type of Warranty service

* Excludes some components. 90-day limited warranty for power adapters, keyboards, plastics and hinges.
