Lenovo Tab P11 2nd Gen Manual

Device overview

1. Volume buttons
2. Microphone
3. Light/Proximity sensor
4. Front-facing camera
5. Card tray
6. Headset connector
7. Speaker
8. USB-C connector
9. Touch screen
10. 4-point pogo-pin smart connector (for the compatible keyboard and Smart Charging Station)
11. Power button
12. Flashlight
13. Rear camera

All pictures and illustrations in this document are for your reference only and may differ from the final product.

Preparing your device

Installing cards
Install the cards as shown in the figure.

• Power off the device before inserting or removing a card.
• The WLAN version does not have a Nano-SIM card slot.

Charging your device
Connect your device to a power outlet using the USB cable and power adapter provided.

Turning on
Press and hold the Power button until the Lenovo logo appears.

Accessories (optional)

The accessories do not come with all models, and are sold separately.

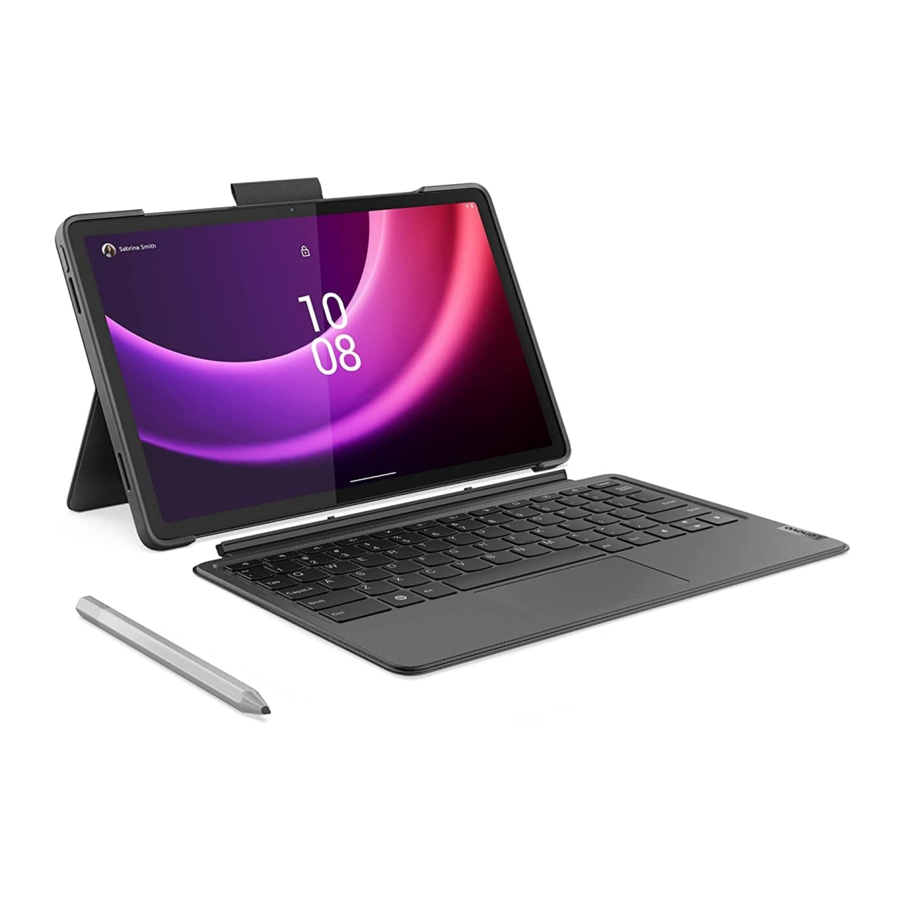

Keyboard pack

1. Keyboard connector
2. Trackpad
3. Pen case
4. Hinge
5. Kickstand

The keyboard layout may vary by country or region, please refer to the actual product.

Attaching the Keyboard Pack
Make sure that the camera hole is aligned with the Tablet's rear camera when attaching the Stand Cover to the Tablet.

Opening and adjusting the Kickstand
You can adjust the Tablet angle by using the Stand Cover. Grasp either side of the Kickstand and gently open it until you reach the desired angle.

To prevent damage, do not apply excessive pressure to the Stand Cover or force the Kickstand beyond its natural range of motion.

Using the device
You can use your device in these two modes:

Storing the pen
Push up to open the pen case and then store the pen in the pen case.

• Do not overtilt or apply excessive pressure to the Stand Cover, doing so may damage the hinges.
• The Tablet, Keyboard and Stand Cover all contain magnetic materials. To avoid loss of magnetism, avoid exposing the Tablet, Keyboard and Stand Cover to high temperatures or direct sunlight.
• To prevent demagnetization of credit cards and other items with magnetic data, keep them away from the Tablet, Keyboard and Stand Cover.
• Don't use your device in temperatures below 0°C or above 40°C.
• Don't store or transport your device in temperatures below -20°C or above 60°C.

Lenovo Precision Pen 2 (2023)
You can use Lenovo Precision Pen 2 (2023) in place of your fingers for a better experience, such as working with specific applications to write or draw on the screen.

Overview

1. Pen cap
2. Indicator LED
3. Upper button
4. Lower button
5. Tip

Charging the pen

1. Remove the pen cap in the direction shown in the figure.

2. Connect the pen to a charger with a USB-C cable.

3. Replace the pen cap on the pen. You can start to use the pen after charging.


• The indicator light will have an amber glow while charging the pen and a white glow after it is fully charged.
• Please be cautious when using the pen. The pen contains sensitive electronic components. Dropping it may cause damage.

Replacing the tip

1. Pinch the tip with tweezers or another suitable tool.
2. Remove the tip.
3. Install the stand-by tip (supplied).

Using the Pen

1. Hold the pen close to the tablet until a white dot appears on the screen.
2. Use the upper and lower button functions of the pen.


Using the pen on a coated screen may interfere with the pen-writing experience. If your pen is not responsive, please try switching pen protocols. Hold both buttons consecutively for 25 seconds to switch between pen protocols (WGP& AES).

Smart Charging Station

1. Removable back support
2. Smart connector
3. USB-C connector

As shown in the picture, you can charge the battery through the Smart Charging Station.

• Frequent insertion and removal of back support may result in looseness or damage.
• This product is designed to work only with bundled adaptor and charging cable, please use them in order to make the product work correctly.

Important safety and handling information

Plastic bag notice

Plastic bags can be dangerous. Keep plastic bags away from babies and children to avoid danger of suffocation.

Caution about high volume usage

Exposure to loud noise from any source for extended periods of time may affect your hearing. The louder the sound, the less time is required before your hearing could be affected. To protect your hearing:

• Limit the amount of time you use headsets or headphones at high volume.
• Avoid turning up the volume to block out noisy surroundings.
• Turn the volume down if you can't hear people speaking near you.

If you experience hearing discomfort, including the sensation of pressure or fullness in your ears, ringing in your ears or muffled speech, you should stop listening to the device through your headset or headphones and have your hearing checked.

To prevent possible hearing damage, do not listen at high volume levels for long periods.

Safety instructions for parents and adult supervisors
The device is not a toy. As with all electrical products, precautions should be observed during handling and using of electrical products to reduce the risk of electric shock. If parents choose to allow children to use the device, they should caution his or her child about the potential hazard while using and handling the mobile device.
Parents should inspect the mobile device (including the ac power adapter and the small part, as applicable) periodically for damage. Routinely check this mobile device to ensure that the device is working properly and is safe for children to use.

Internal rechargeable battery warning

Do not attempt to replace the internal rechargeable lithium ion battery. Replacing the original battery with an incompatible type may result in an increased risk of personal injury or property damage due to explosion, excessive heat, or other risks. Do not attempt to disassemble or modify the battery pack. Attempting to do so can cause a harmful explosion or battery fluid leakage.
When disposing of the battery, comply with all relevant local ordinances or regulations. Do not dispose the battery pack in municipal waste. Dispose used batteries according to the instructions.
The battery pack contains a small amount of harmful substances.
To avoid injury:

• Keep the battery pack away from open flames or other heat sources.
• Do not expose the battery pack to water, rain, or other corrosive liquids.
• Do not leave the battery in an environment with extremely high temperature.
• Avoid short-circuiting the battery pack.
• Keep the battery pack out of reach of small children and pets.
• Do not leave the battery in an environment with extremely low air pressure. It may result in an explosion or the leakage of flammable liquid or gas from the battery.

To extend battery life, we recommend charging the battery to at least 30% to 50% capacity each time, and recharging it every three months to prevent over discharge.

Eye Protection and Safety Information
While concentrating on the performance capabilities of its screens, Lenovo also places importance on user's eye health. This product has received TÜV Rheinland's "Low Blue Light" certification and can be used with confidence.
For further information, please visit https://support.lenovo.com.

Service and support information

Get support
To download Lenovo service tool - Rescue and Smart Assistant (RSA): https://support.lenovo.com/downloads/ds101291
Visit the website above for the information on devices compatible with RSA.
Visit Lenovo's support website (https://support.lenovo.com) with the device serial number to get more Lenovo support options, or scan the QR code, and then follow the on-screen instructions.

Consult Lenovo Community by visiting http://forums.lenovo.com.
Scan the QR code below to download the Lenovo app, a one-stop application to quickly find support and solutions to your Lenovo devices, view your warranty or repair status, find nearest service provider, and more.
Android

IOS
