Lenovo TAB3 7 Essential Manual

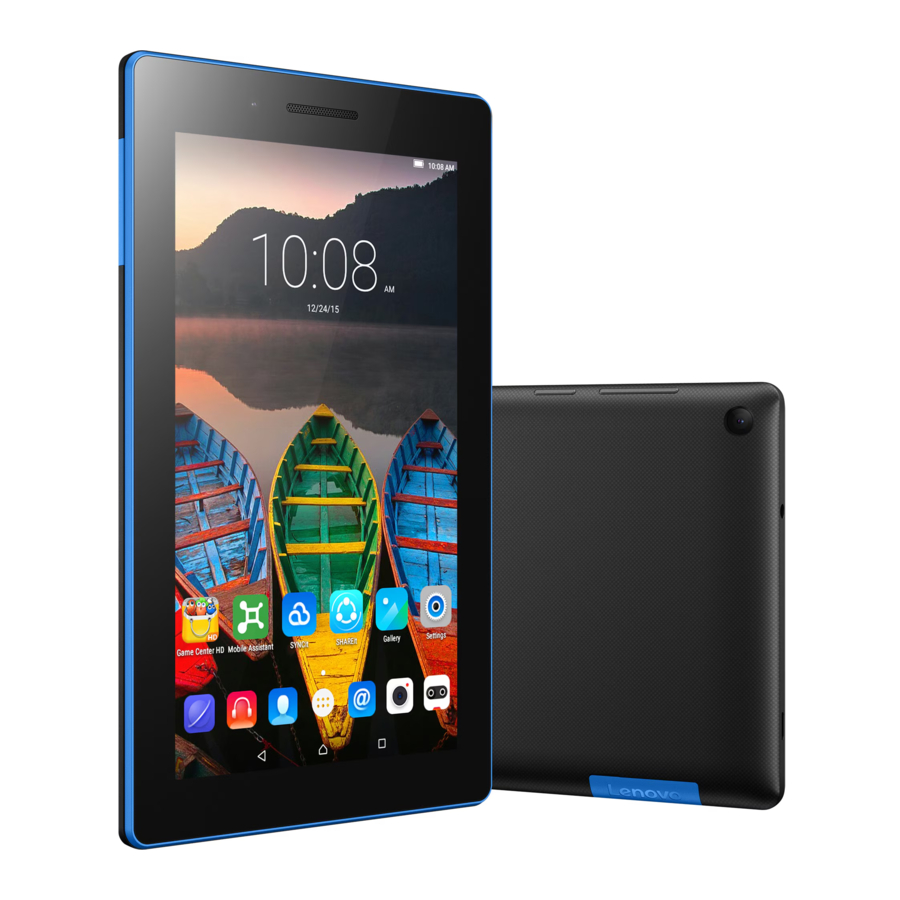

Lenovo TAB3 7 Essential overview

1. Front camera
2. Speaker/*Receiver
3. On/Off button
4. Volume button
5. Rear camera
6. Earphone jack
7. Micro USB connector
8. *Micro SIM card slot
9. microSD card slot
10. Microphone

Only WCDMA model (Lenovo TB3-710I) has a receiver. The WLAN model (Lenovo TB3-710F) does not have a Micro SIM card slot.

Preparing your tablet

You can use cellular services with the WCDMA model (Lenovo TB3-710I) by inserting the Micro SIM card provided by your carrier.
Install the Micro SIM and microSD cards as shown.

1. Open the card slot cover.
2. Insert the Micro SIM and microSD cards as shown.
3. Replace the card slot cover.

Only Micro SIM card works with your tablet.
!!! DO not insert or remove the Micro SIM card while your tablet is turned on. Doing so can permanently damage your Micro SIM card or tablet.
To remove the microSD card, press the card until it ejects and then pull it out.

Starting to use your tablet

You might need to charge the battery before using your tablet. Charge the battery as shown.

Connect your tablet to a power outlet using the included cable and USB power adapter. *When the WCDMA model (Lenovo TB3-710I) is charging, the indicator light of it will light up.

Low battery

Fully charged

Charging

Turning on/off

Turn on: Press and hold the On/Off button until the Lenovo logo appears.
Turn off: Press and hold the On/Off button for a few seconds, then tap Power off.
Restart: Press and hold the On/Off button for about 10 seconds.

Taking screenshots
Press and hold the On/Off button and the volume down button at the same time.
