Yamaha R-S202 Manual

About this manual

• indicates a tip for your operation.
• The instructions in this manual describe the operation of this unit with the supplied remote control. You can also use the buttons or knobs on the front panel if they have the same or similar names as those on the remote control.

USEFUL FEATURES

SUPPLIED ACCESSORIES

Please check that you received all of the following parts.

CONTROLS AND FUNCTIONS

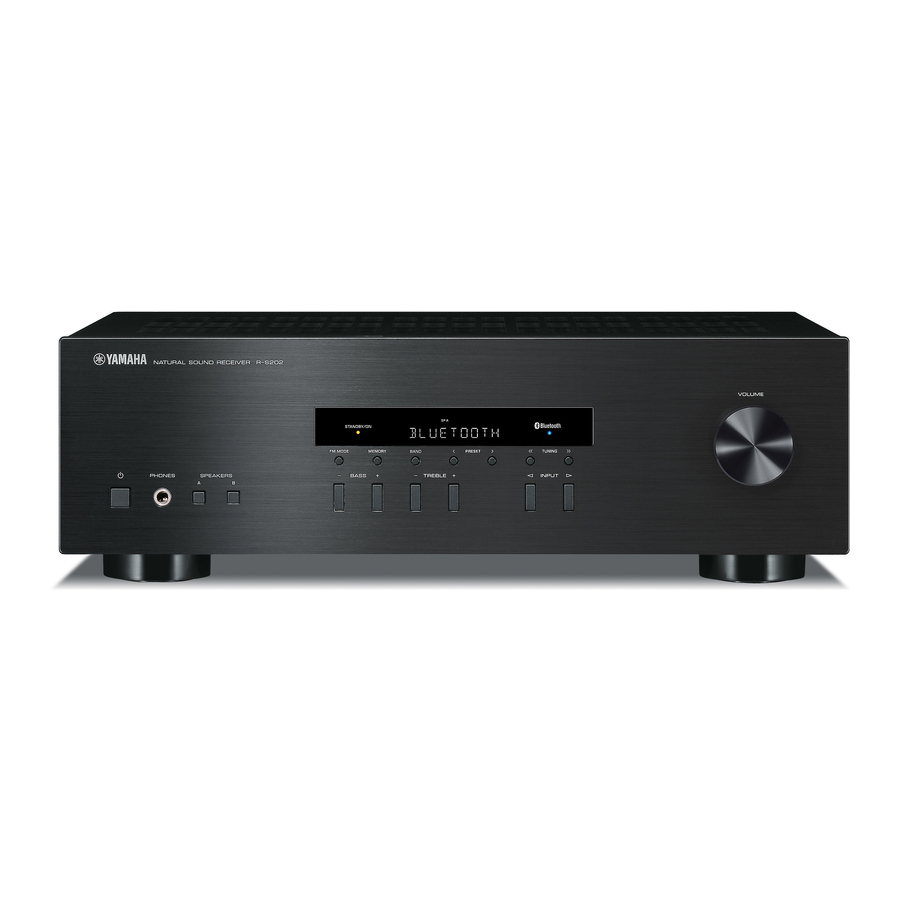

Front panel

1. (power)
   Turns this unit on, or sets it to standby mode.
2. FM MODE
   Changes the FM radio wave reception mode (stereo or monaural) when TUNER is selected as the input source.
3. Remote control sensor
   Receives infrared signals from the remote control.
4. STANDBY/ON indicator

5. MEMORY
   Stores the current radio station as a preset when TUNER is selected as the input source.
6. BAND
   Sets the radio tuner band when TUNER is selected as the input source.
7. PRESET
   Selects a preset radio station when TUNER is selected as the input source.
8. TUNING
   Selects the tuning frequency when TUNER is selected as the input source.
9. Bluetooth indicator
   Indicates the status of the connection with the Bluetooth device.
10. Front panel display
    Shows information about the operational status of this unit.
11. PHONES jack
    For connecting headphones.

    Press SPEAKERS A/B so that the SP A/B indicators turn off before you connect your headphones to the PHONES jack.
12. SPEAKERS A/B
    Turns on or off the speaker set connected to the SPEAKERS A and/or SPEAKERS B terminals on the rear panel each time the corresponding button is pressed.
13. BASS –/+
    Increases or decreases the low frequency response. Control range: –10 dB to +10 dB
14. TREBLE –/+
    Increases or decreases the high frequency response. Control range: –10 dB to +10 dB
15. INPUT
    Selects the input source you want to listen to.
16. VOLUME control
    Increases or decreases the sound output level.

1. PRESET indicator
   Lights up or blinks when using the preset function.
2. MEMORY indicator
   Lights up or blinks when registering radio stations as presets.
3. SP (SPEAKERS) A/B indicators
   Light up according to the set of speakers selected. Both indicators light up when both sets of speakers are selected.
4. TUNED indicator
   Lights up when this unit is tuned in to an FM or AM station with a strong signal.
5. SLEEP indicator
   Lights up when the sleep timer is turned on.
6. ST indicator
   Lights up when this unit is in stereo mode and tuning in an FM station with a stereo broadcast.
7. kHz/MHz indicators
   Lights up according to the current broadcast frequency.
   kHz: AM
   MHz: FM
8. Multi-information display
   Shows information when adjusting or changing settings.

Rear panel

1. ANTENNA terminals
   Used to connect the radio antennas.
2. Power cable
   For connecting this unit to an AC wall outlet.
3. CD jacks
   Used to connect a CD player.
4. LINE 1-2 jacks
   Used to connect audio components.
5. LINE 3 jacks
   IN jacks
   Used to connect to audio output jacks of an audio component.
   OUT jacks
   Used to connect to audio input jacks of an audio component.
6. SPEAKERS terminals
   Used to connect speakers.
7. VOLTAGE SELECTOR
   (Only for General model)

Remote control

■ Common controls
The following parts and controls can be used no matter which input source is selected.

1. Infrared signal transmitter
   Sends infrared signals.
2. (power)
   Turns this unit on, or sets it to standby mode.
3. SLEEP
   Sets the sleep timer.
4. Input selector buttons
   Select the input source you want to listen to.

   The input source names correspond to the names of the connection jacks on the rear panel.
5. TREBLE –/+
   Increases or decreases the high frequency response. Control range: –10 dB to +10 dB
6. BASS –/+
   Increases or decreases the low frequency response. Control range: –10 dB to +10 dB
7. BALANCE L/R
   Adjusts the sound output balance of the left and right speakers to compensate for sound imbalances. Control range:

8. ENTER
   Selects and confirms items in the Option menu.
9. MENU
   Turns the Option menu on and off.
10. VOLUME +/–
    Increases or decreases the sound output level.
11. SPEAKERS A/B
    Turns on or off the speaker set connected to the SPEAKERS A and/or SPEAKERS B terminals on the rear panel each time the corresponding button is pressed.
12. DIMMER
    Select the brightness level of the front panel display from 3 levels by pressing this button repeatedly.


• This setting is retained even if you turn off this unit.
• The default setting is the brightest.

13. MUTE
    Mutes the sound output. Press again to restore the sound output to the previous volume level.

■ Radio function controls
The following buttons can be used when TUNER is selected as the input source.

14. TUNING
    Selects the tuning frequency.
    PRESET
    Selects a preset radio station.
    BAND
    Switches the radio tuner band.
    MEMORY
    Stores the current radio station as a preset.
    INFO
    Only for Europe model:
    Switches information shown on the front panel display.

■ Yamaha CD player controls
The following buttons can be used to control a Yamaha CD player.

15. Yamaha CD player control buttons
    Stops playback
    Pauses playback
    Starts playback
    DISC SKIP Skips to the next disc in a CD changer
    Skips backward
    Skips forward
    Ejects the disc
    Rewinds playback
    Fast-forwards playback

Note
Even when using a Yamaha CD player, certain components and features may not be available. Refer to your component's owner's manual for more information.

■ Bluetooth controls
The following buttons can be used to control a Bluetooth device.

8. Bluetooth control buttons
   Bluetooth Switches the audio source to Bluetooth
   Skips backward
   Skips forward
   Starts/pauses playback

Note
Yamaha does not guarantee the operation of all Bluetooth devices.

Using the remote control

■ Installing batteries

Change all batteries if you notice the operation range of the remote control narrows. Before inserting new batteries, wipe the battery compartment clean.

■ Operation range

Point the remote control at the remote control sensor on this unit and remain within the operating range shown below. The area between the remote control and this unit must be clear of large obstacles.

• Be careful not to drop the remote control.
• If the batteries run out, immediately remove them from the remote control to prevent an explosion or acid leak.
• If you find leaking batteries, discard the batteries immediately, taking care not to touch the leaked material. If the leaked material comes into contact with your skin or gets into your eyes or mouth, rinse it away immediately and consult a doctor. Clean the battery compartment thoroughly before installing new batteries.
• Do not use old batteries together with new ones. This may shorten the life of the new batteries or cause old batteries to leak.
• Do not use different types of batteries (such as alkaline and manganese batteries) together. Batteries that look the same may have a different specification.
• Dispose of batteries according to your regional regulations.
• Keep the batteries in a location out of reach of children. Batteries can be dangerous if a child were to put in his or her mouth.
• If you plan not to use this unit for a long period of time, remove the batteries from this unit. Otherwise, the batteries will wear out, possibly resulting in a leakage of battery liquid that may damage this unit.

CONNECTIONS

Connecting speakers and source components

Make sure to connect L (left) to L, R (right) to R, "+" to "+" and "–" to "–". If the connections are faulty, no sound will be heard from the speakers, and if the polarity of the speaker connections is incorrect, the sound will be unnatural and lack bass. Refer to the owner's manual for each of your components.

Make sure to use RCA cables to connect audio components.

• Do not connect this unit or other components to the main power until all connections between components are complete.
• Do not let bare speaker wires touch each other or any metal part of this unit. This could damage this unit and/or the speakers.

■ OUT jacks

• The OUT jacks output audio signals of the currently selected input (except when LINE 3 is selected).
• Volume level, tone control and balance settings do not affect the OUT jacks.

■ Connecting speaker cables

Remove approximately 10 mm (3/8 in) of insulation from the end of each speaker cable.

Note
When inserting speaker cables into the speaker terminals, insert only the bare speaker wire. If insulated cable is inserted, the connection may be poor and sound may not be heard.

Connect the speakers with an impedance as shown below. If you connect speakers with an excessively low impedance, this unit may overheat.

■ Bi-wire connection
Bi-wire connection separates the woofer from the combined midrange and tweeter section. A bi-wire compatible speaker has four binding post terminals. These two sets of terminals allow the speaker to be split into two independent sections. With these connections, the mid and high frequency drivers are connected to one set of terminals and the low frequency driver to another set of terminals.

Connect the other speaker to the other set of terminals in the same way.

Note
When making bi-wire connections, remove the shorting bridges or cables on the speaker.

To use the bi-wire connections, press SPEAKERS A and SPEAKERS B so that both SPA and B light up on the front panel display.

Connecting the FM/AM antennas

Connect the supplied FM/AM antenna to this unit. Fix the end of the FM antenna to a wall, and place the AM antenna.

Notes

• If you experience poor reception quality, install an outdoor antenna.
• Unwind only the length of cable needed from the AM antenna unit.
• The wires of the AM antenna have no polarity.

■ Assembling the AM antenna

■ Connecting the wire of the AM antenna

Connecting power cable

Plug the power cable into an AC wall outlet after all other connections are complete.

Only for General model:
Before connecting the power cable, make sure you set VOLTAGE SELECTOR of this unit according to your local voltage. Improper setting of VOLTAGE SELECTOR may cause fire and damage to this unit.

PLAYBACK

Playing a source

1. Press (power) to turn on this unit.
2. Press one of the Input selector buttons to select the desired input source.
3. Press SPEAKERS A and/or SPEAKERS B to select the desired speaker(s).

• When one set of speakers is connected using bi-wire connections, or when using two sets of speakers simultaneously (A and B), make sure SP A and SP B are displayed on the front panel display.
• When listening with headphones, turn off the speakers.

4. Play the source.
5. Press VOLUME +/– to adjust the sound output level.

You can adjust the tonal quality by using BASS –/+ and TREBLE –/+, and the left/right sound balance of speakers by using BALANCE L/R.

6. When finished listening, press (power) to set this unit to standby mode. Press (power) to turn this unit on again.

• You can also use the buttons or knobs on the front panel if they have the same or similar names as those on the remote control.
• For recording, see Rear panel.

Using the sleep timer

Use this feature to automatically set this unit to standby mode after a certain amount of time. The sleep timer is useful when you are going to sleep while this unit is playing or recording a source.

Press SLEEP repeatedly to set the time duration until the unit enters standby mode.

Each time you press SLEEP, the time duration indicated on the front panel display changes cyclically as shown below.

The SLEEP indicator blinks while setting the amount of time for the sleep timer.

If the sleep timer is set, the SLEEP indicator on the front panel display lights up.

To cancel the sleep timer, do one of the following:

• Select "SLEEP OFF".
• Press (power) to set this unit to standby mode.

LISTENING TO MUSIC FROM YOUR Bluetooth® DEVICE

Playing back from your Bluetooth device

You'll need to perform the pairing operation the first time you use your Bluetooth device with this unit, or if the pairing settings have been deleted. Pairing is an operation that registers the Bluetooth device with this unit. If pairing is not successful, refer to the item "Bluetooth" in "TROUBLESHOOTING".

Notes

• Yamaha does not guarantee all connections between this unit and Bluetooth device.
• This unit can be paired with up to 8 Bluetooth devices. When pairing with the 9th device has succeeded, pairing data for the device with the oldest connection date will be deleted.
• While connecting to the Bluetooth device and perform the pairing with another device, the current Bluetooth connection will be canceled.


1. Press the Bluetooth source button for more than 3 seconds to enter pairing mode.

• Pairing mode lasts for 5 minutes.
• In pairing mode, the front panel display of this unit will indicate "PAIRING," and the Bluetooth indicator will blink.

You can also enter pairing mode in either of the following two ways:

• Press and hold down INPUT on this unit for three seconds.
• Select "PAIRING" from the Option menu, and then press ENTER).

2. Turn on the Bluetooth function on the Bluetooth device. For details refer to the owner's manual of the Bluetooth device.
3. From the Bluetooth connection list of the Bluetooth device, choose this unit (R-S202 Yamaha).

• When pairing has been completed, the front panel display of this unit will indicate "COMPLETED".
• When the Bluetooth device is connected, the front panel display of this unit will indicate "CONNECTED" and the Bluetooth indicator will light up.

If you are asked to enter a password, enter the numerals "0000".

4. Play back music from the Bluetooth device.

Notes

• Take care that the volume setting of this unit is not too high. We recommend that you adjust the volume on the Bluetooth device.
• If Bluetooth is selected as the audio source, this unit will automatically turn off when 20 minutes have elapsed without any Bluetooth connection nor any operation performed.

You can use the Bluetooth control buttons on the remote control to control playback.

Connecting an already-paired device via Bluetooth

Once pairing has been completed, connecting a Bluetooth will be easy the next time.

■ Connecting from the Bluetooth device

1. In the Bluetooth settings of the Bluetooth device, turn Bluetooth on.
2. From the Bluetooth connection list of the Bluetooth device, choose this unit (R-S202 Yamaha).

The Bluetooth connection will be established, and the front panel display of this unit will indicate "CONNECTED".

Note
Bluetooth connections cannot be established from the Bluetooth device when this unit is in standby.

You can use the Bluetooth control buttons on the remote control to control playback.

Disconnecting a Bluetooth connection

If any of the following operations are performed while a Bluetooth connection is being used, the Bluetooth connection will be disconnected.

• Switch the audio source other than Bluetooth.
• Press (power) to set this unit to standby mode.
• Turn off the Bluetooth setting of the Bluetooth device.

FM/AM TUNING

You can tune in to a radio station by specifying its frequency or selecting from registered radio stations.

Notes

• The radio frequencies differ depending on the country or region where this unit is being used. Front panel display illustrations shown in this section are based on Europe model.
• Only for Asia and General models:

Be sure to set the tuner frequency step according to the frequency spacing in your area before you tune in to a radio station.

1. Press TUNER to select the tuner as the input source.
2. Press BAND to select the FM/AM band.
3. Press and hold TUNING to begin tuning.

Press to tune in to a higher frequency.

Press to tune in to a lower frequency. When this unit tunes in to a station, the TUNED indicator lights up on the front panel display.

Note
If the tuning search does not stop at the desired station because the station signals are weak, press TUNING repeatedly to tune in to the desired station.

You can also use the buttons on the front panel if they have the same or similar names as those on the remote control.

■ Improving FM reception
If the signal from the station is weak and the sound quality is not good, set the FM band reception mode to monaural mode to improve reception.

Front panel
Press FM MODE, and then make sure the ST indicator is turned off.

Remote control
Enter FM MODE from the Option menu to select MONO (monaural mode).

Using preset functions

You can register up to 40 radio stations as presets. Once you have registered stations, you can easily tune in to them by recalling the presets. You can automatically register FM stations that have strong signals. If the FM stations you want to store have weak signals, you can register them manually.

■ Presetting stations automatically (Only for FM stations)

Notes

• If a station is registered to a preset number that already has a station registered to it, the previously registered station is overwritten.
• Only for Europe model:

Only Radio Data System broadcasting stations can be preset automatically.

FM stations registered as presets using the automatic preset registration feature will be heard in stereo.

FM/AM TUNING

1. Press TUNER to select the tuner as the input source.
2. Press BAND to select the FM band.
3. Press MENU to enter the Option menu. The Option menu for TUNER is displayed.
4. Press to select "AUTO PRESET", and then press ENTER.

   This unit starts scanning the FM band about 3 seconds later from the lowest frequency upwards.

• Before scanning begins, you can specify the first preset number to be used by pressing PRESET or .
• To cancel scanning, press .

When a station to preset is found, information is displayed on the front panel display as shown in the illustration above.

When scanning is complete, "FINISH" is displayed, and then the display returns to the Option menu. To return the display to the original state, press MENU.

■ Presetting stations manually
You can manually register the desired radio stations.

1. Tune in to the desired FM/AM station. See tuning instructions.
2. Press MEMORY.
   "MANUAL PRESET" is displayed briefly on the front panel display, and then the preset number to which the station will be registered is displayed.


By holding down MEMORY for more than 2 seconds, you can skip the following steps and automatically register the selected station to an empty preset number (i.e., the preset number following the last preset number used).

3. Press PRESET to select the preset number to which the station will be registered.
   When you select a preset number to which no station is registered, "EMPTY" is displayed. When you select a preset number to which a station has already been registered, the frequency of the station is displayed.

4. Press MEMORY.
   When registration is complete, the display returns to the original state.

• To cancel registration, switch input or band or do not perform any operations for about 30 seconds.
• You can also preset stations manually by pressing buttons on the front panel with the same names as remote control.

■ Recalling a preset station
You can recall preset stations that were registered by presetting automatically or manually.

1. Press TUNER to select the tuner as the input source.
2. Press BAND to select the FM/AM band.
3. Press PRESET to select a preset number.

• Preset numbers to which no stations are registered are skipped.
• If this unit does not have any preset stations, "NO PRESET" is displayed.
• If the station signals that you want to recall are weak, try tuning in to a station manually.
• You can also recall a preset station by pressing PRESET on the front panel.

■ Clearing a preset station
Follow the steps below to clear a preset station.

1. Press TUNER to select the tuner as the input source.
2. Press BAND to select the FM/AM band.
3. Press MENU to enter the Option menu. The Option menu for TUNER is displayed.
4. Press to select "CLEAR PRESET", and then press ENTER.
5. Select the desired preset station number by pressing repeatedly.
   The selected preset number blinks on the front panel display.


• You can also use PRESET instead.
• To cancel clearing the preset station, press or leave this unit without any operations for about 30 seconds.

6. Press ENTER again to confirm.
   "CLEARED" is displayed on the front panel display. Then, another preset station is shown on the front panel display. When there is no more preset station, "NO PRESET" is displayed, and then the display returns to the Option menu.
   To return the display to the original state, press MENU.

■ Clearing all preset stations
Follow the steps below to clear all preset stations.

1. Press TUNER to select the tuner as the input source.
2. Press BAND to select the FM/AM band.
3. Press MENU to enter the Option menu. The Option menu for TUNER is displayed.
4. Press to select "CLEAR ALL PRESET", and then press ENTER.


To cancel the operation and return to the Option menu, press .

5. Press to select "CLEAR OK", and then press ENTER.


To cancel without clearing the presets, select "CLEAR NO".

When all presets have been cleared, "CLEARED" is displayed, and then the display returns to the Option menu.

To return the display to the original state, press MENU.

SETTING THE OPTION MENU FOR EACH INPUT SOURCE

The Option menu allows you to configure various settings for each input source and recall those settings automatically when an input source is selected.

1. Press one of the Input selector buttons to select the desired input source.
2. Press MENU.

Input selector buttons

3. Press to select the desired menu item, and then press ENTER.
4. Press to change the settings, and then press ENTER.

To return to the screen where you can select menu items, press .

5. To exit the Option menu, press MENU.

Option menu items
Available menu items vary depending on the selected input source.

The default settings are marked with "*".

TROUBLESHOOTING

Refer to the chart below if this unit does not function properly. If the problem you are experiencing is not listed below or if the instructions below do not help, set this unit to standby mode, disconnect the power cable, and then contact the nearest authorized Yamaha dealer or service center.

General

Bluetooth

FM reception

AM reception

AUDIO SECTION

• Minimum RMS output power
  (8 Ω, 40 Hz to 20 kHz, 0.2% THD)
  [North America, General, China, Korea, Australia and Europe models] 100 W + 100 W
  [Asia model] 85 W + 85 W
• Dynamic power per channel (8 Ω/6 Ω/4 Ω/2 Ω, IHF) 125 W/150 W/165 W/180 W
• Maximum power per channel (4 Ω, 1 kHz, 0.7%, THD)
  [Europe model] 115 W
• Maximum effective output power (8 Ω, 1 kHz, 10%, THD)
  [General model] 140 W
  [Asia model] 125 W
• Input sensitivity/Input impedance (1 kHz, 100 W/8 Ω)
  CD, etc. 500 mV/47 kΩ
• Output level/Output impedance CD, etc. (Input 1 kHz, 500 mV)
  LINE3 OUT 500 mV/2.2 kΩ CD, etc. (Input 1 kHz, 500 mV, 8 Ω)
  PHONES 470 mV/470 Ω
• Frequency response
  CD, etc. (20 Hz to 20 kHz) 0 ± 0.5 dB
  CD, etc. (10 Hz to 100 kHz) 0 ± 3.0 dB
• Total harmonic distortion
  CD, etc. to SPEAKERS
  (20 Hz to 20 kHz, 50 W/8 Ω) 0.2% or less
• Signal to noise ratio (IHF-A)
  CD, etc. (500 mV input shorted) 100 dB or more
• Residual noise (IHF-A) 70 µV
• Tone control characteristics
  BASS
  Boost/Cut (50 Hz) ± 10 dB
  Turnover frequency 170 Hz
  TREBLE
  Boost/Cut (20 kHz) ± 10 dB
  Turnover frequency 3.0 kHz

BluetoothSECTION

• Bluetooth version Ver. 4.1+EDR
• Supported profile A2DP, AVRCP
• Compatible codec SBC, AAC
• Maximum communication distance 10m (without interference)
• Wireless output Bluetooth Class 2
• Supported contents protection SCMS-T method

FM SECTION

• Tuning range
  [North America model] 87.5 to 107.9 MHz
  [General and Asia models] 87.5 to 107.9 MHz/87.50 to 108.00 MHz
  [China, Korea, Australia and Europe models] 87.50 to 108.00 MHz
• 50 dB quieting sensitivity (IHF-A, 1 kHz, 100% MOD.)
  Mono 3 µV (20.8 dBf)
• Signal to noise ratio (IHF-A)
  Mono/Stereo 71 dB/70 dB
• Harmonic distortion (1 kHz)
  Mono/Stereo 0.4%/0.4%
• Antenna Input 75 Ω, unbalanced

AM SECTION

• Tuning range
  [North America model] 530 to 1710 kHz [General and Asia models] 530 to 1710 kHz/531 to 1611 kHz
  [China, Korea, Australia and Europe models] 531 to 1611 kHz

GENERAL

• Power supply
  [North America model] AC 120 V, 60 Hz
  [General model] AC 110-120/220-240 V, 50/60 Hz
  [China model] AC 220 V, 50 Hz
  [Korea model] AC 220 V, 60 Hz
  [Australia model] AC 240 V, 50 Hz
  [Europe model] AC 230 V, 50 Hz
  [Asia model] AC 220-240 V, 50/60 Hz
• Power consumption
  [North America, General, China, Korea, Australia and Europe models] 175 W
  [Asia model] 140 W
• Standby power consumption
  [North America, China, Korea, Australia, Europe and Asia models] 0.3% or less
• Dimensions (W × H × D) 435 × 141 × 322 mm (17'1/8" × 5'1/2" × 12'5/8")
• Weight 6.7 kg (14.8 lb)

* The contents of this manual apply to the latest specifications as of the publishing date. To obtain the latest manual, access the Yamaha website then download the manual file.

Handling Bluetooth communications

• The 2.4 GHz band used by Bluetooth compatible devices is a radio band shared by many types of equipment. While Bluetooth compatible devices use a technology minimizing the influence of other components using the same radio band, such influence may reduce the speed or distance of communications and in some cases interrupt communications.
• The speed of signal transfer and the distance at which communication is possible differs according to the distance between the communicating devices, the presence of obstacles, radio wave conditions and the type of equipment.
• Yamaha does not guarantee all wireless connections between this unit and devices compatible with Bluetooth function.

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

The above warning is located on the rear of the unit.

Explanation of Graphical Symbols
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

• Contact the following customer center for inspection or repair.
  • The store you purchased the product
  • Yamaha dealer
• This product is intended for use as a general household device. Do not use it in any field or activity requiring a high degree of reliability in relation to human lives or valuable assets.
• Please note that Yamaha cannot accept any liability for any losses resulting from improper use or unauthorized modification of the product.
