Honeywell TC810N1013 Installation And Maintenance Instructions

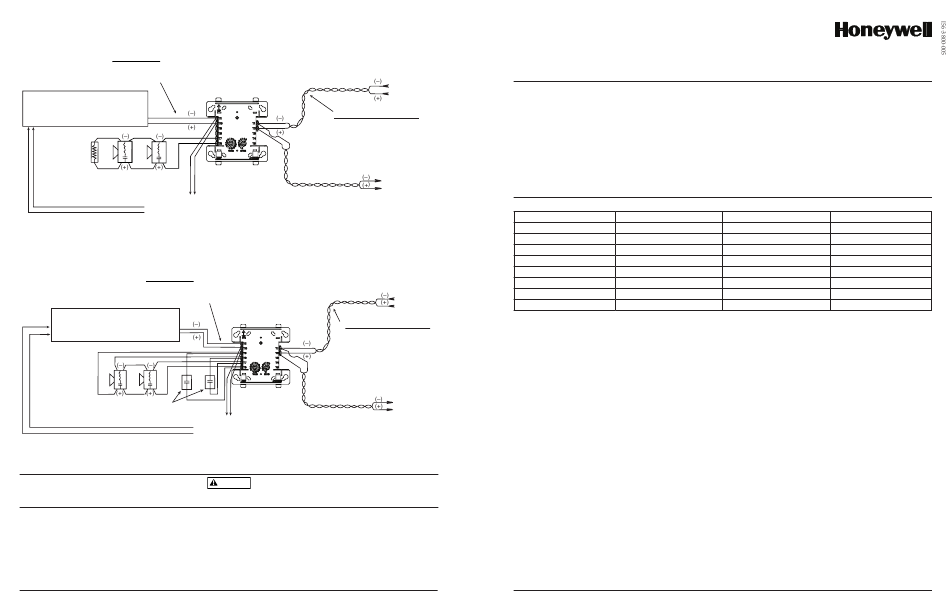

FIGURE 5. TYPICAL WIRING FOR SPEAKER SUPERVISION AND SWITCHING, NFPA STYLE Y:
AUDIO CIRCUIT WIRING MUST BE TWISTED PAIR AS A MINIMUM.
SEE NOTIFIER INSTALLATION MANUAL FOR DETAILED INFORMATION.
AUDIO CIRCUIT
DO NOT LOOP WIRE AROUND TERMINALS 10 & 11.
BREAK WIRE TO ENSURE
SUPERVISION OF CONNECTIONS.
AUDIO AMPLIFIER, 70.7 Vrms MAX.
USE ONLY MODELS AA-30, AA100 OR
AA-120. AMPLIFIER MUST PROVIDE
WIRING SUPERVISION PER NFPA.
47K EOL
RESISTOR
ELR-47K
MODULE POLARITIES ARE
SHOWN IN ALARM
SUPERVISION TO NEXT CONTROL MODULE
LAST MODULE MUST RETURN
WIRES FOR SUPERVISION
*NOTE: ANY FAULT IN THE POWER SUPPLY IS LIMITED TO THAT ZONE AND DOES NOT RESULT IN A FAULT IN A SEPARATE ZONE.
FIGURE 6. TYPICAL FAULT TOLERANT WIRING FOR SPEAKER SUPERVISION AND SWITCHING, NFPA STYLE Z:
AUDIO CIRCUIT WIRING MUST BE TWISTED PAIR AS A MINIMUM.
SEE NOTIFIER INSTALLATION MANUAL FOR DETAILED INFORMATION.
AUDIO CIRCUIT
DO NOT LOOP WIRE AROUND TERMINALS 10 & 11.
BREAK WIRE TO ENSURE
SUPERVISION OF CONNECTIONS.
AUDIO AMPLIFIER, 70.7 Vrms MAX.
USE ONLY MODELS AA-30, AA100 OR
AA-120. AMPLIFIER MUST PROVIDE
WIRING SUPERVISION PER NFPA.
47K EOL RESISTOR
IS INTERNAL AT
TERMINALS 8 & 9
BYPASS CAPACITORS: 100µ
A2143-20 NONPOLARIZED
<10µA LEAKAGE
SUPERVISION
TO NEXT CONTROL
MODULE LAST MODULE
MUST RETURN WIRES FOR
MODULE POLARITIES ARE SHOWN IN ALARM
SUPERVISION
*NOTE: ANY FAULT IN THE POWER SUPPLY IS LIMITED TO THAT ZONE AND DOES NOT RESULT IN A FAULT IN A SEPARATE ZONE.
All relay switch contacts are shipped in the standby state (open) state, but may have transferred to the activated (closed) state during shipping. To ensure that
the switch contacts are in their correct state, modules must be made to communicate with the panel before connecting circuits controlled by the module.
HW-460-000
WIRES MUST BE SUPERVISED PER NFPA
CONNECT MODULES TO LISTED COMPATIBLE
CONTROL PANELS ONLY
CONTROL PANEL OR
MODULE PREVIOUS
DEVICE
SIGNAL LINE CIRCUIT (SLC)
32 VDC MAX.
TWISTED PAIR
IS RECOMMENDED
ALL WIRING SHOWN IS
SUPERVISED AND POWER LIMITED
TO NEXT
DEVICE
SPEAKERS MUST BE LISTED FOR FIRE PROTECTION.
WIRES MUST BE SUPERVISED PER NFPA
CONNECT MODULES TO LISTED COMPATIBLE
CONTROL PANELS ONLY
CONTROL
MODULE
SIGNAL LINE CIRCUIT (SLC)
32 VDC MAX.
TWISTED PAIR
IS RECOMMENDED
ALL WIRING SHOWN IS SUPERVISED
AND POWER LIMITED
TO NEXT
SPEAKERS MUST BE LISTED FOR
FIRE PROTECTION.
WARNING
4
©2013 Honeywell
INSTALLATION AND MAINTENANCE INSTRUCTIONS
Model TC810N1013 Supervised Control Module
FROM
SPECIFICATIONS
Normal Operating Voltage:
Maximum Current Draw:
Operating Current:
Maximum NAC Line Loss:
External Supply Voltage (between Terminals T10 and T11)
Maximum (NAC):
Maximum (Speakers):
Drain on External Supply:
Max. NAC Current Ratings:
Temperature Range:
Humidity:
Dimensions:
Accessories:
RELAY CONTACT RATINGS:
CURRENT RATING
2 A
3 A
C0949-01
2 A
0.46 A
0.7 A
0.9 A
FROM
0.5 A
PANEL OR
PREVIOUS
0.3 A
DEVICE
BEFORE INSTALLING
This information is included as a quick reference installation guide. Refer to
the control panel installation manual for detailed system information. If the
modules will be installed in an existing operational system, inform the opera-
tor and local authority that the system will be temporarily out of service. Dis-
connect power to the control panel before installing the modules.
NOTICE: This manual should be left with the owner/user of this equipment.
GENERAL DESCRIPTION
TC810N1013 Supervised Control Modules are intended for use in intelligent,
DEVICE
two-wire systems, where the individual address of each module is selected
using the built-in rotary decade switches. This module is used to switch an
external power supply, which can be a DC power supply or an audio amplifier
(up to 80 VRMS), to notification appliances. It also supervises the wiring to
the connected loads and reports their status to the panel as NORMAL, OPEN,
or SHORT CIRCUIT. The TC810N1013 has two pairs of output termination
points available for fault-tolerant wiring and a panel-controlled LED indica-
C0950-01 tor. This module can be used to replace a TC810A1056 module that has been
configured for supervised wiring operation. TC810N1013 is also UL listed as a
commercial proprietary burglar alarm accessory.
COMPATIBILITY REQUIREMENTS
To ensure proper operation, these modules shall be connected to listed com-
patible system control panels only.
I56-3800-005 HW-460-000
15 to 32VDC
6.5 mA (LED on)
375μA (LED flashing, Group Poll); 350μA (LED flashing, Direct Poll); 485μA (LED flashing, NAC Shorted)
4 VDC
Regulated 24VDC
70.7 V RMS, 50 W
1.7 mA max. using 24 VDC supply; 2.2 mA max. using 80V rms supply
For class B wiring system, the current rating is 3A; For class A wiring system, the current rating is 2A
32˚F to 120˚F (0˚C to 49˚C)
10% to 93% Non-condensing
4.675˝ H x 4.275˝ W x 1.4˝ D (Mounts to a 4˝ square by 2 1 / ˝ deep box.)
8
SMB500 Electrical Box; CB500 Barrier
MAXIMUM VOLTAGE LOAD DESCRIPTION
25 VAC PF = 0.35
30 VDC Resistive
30 VDC Resistive
30 VDC (L/R = 20ms)
70.7 VAC PF = 0.35
125 VDC Resistive
125 VAC PF = 0.75
125 VAC PF = 0.35
MOUNTING
The TC810N1013 mounts directly to 4-inch square electrical boxes (see Figure
2A). The box must have a minimum depth of 2
electrical boxes (SMB500) are available. The module can also mount to the
DNR(W) duct housing.
WIRING
NOTE: All wiring must conform to applicable local codes, ordinances, and reg-
ulations. When using control modules in nonpower limited applications, the
CB500 Module Barrier must be used to meet UL requirements for the separa-
tion of power-limited and nonpower-limited terminals and wiring. The barrier
must be inserted into a 4˝ x 4˝ x 2
must be placed into the barrier and attached to the junction box (Figure 2A).
The power-limited wiring must be placed into the isolated quadrant of the
module barrier (Figure 2B).
1. Install module wiring in accordance with the job drawings and appropri-
ate wiring diagrams.
2. Set the address on the module per job drawings.
3. Secure module to electrical box (supplied by installer), see Figure 2A.
Wire should be stripped to the appropriate length (recommended strip length
is 1 / " to 3 / "). Exposed conductor should be secured under the clamping plate
4 8
and should not protrude beyond the terminal block area. Caution: Do not loop
wire under terminals. Break wire run to provide supervision of connections.
IMPORTANT: When using the TC810N1013 supervised control module for
audio applications, remove Jumper (J1) and discard. The Jumper is located on
the back as shown in Figure 1B.
J1 must be removed whenever power supply monitoring feature is not required.
NOTE: All references to power limited represent "Power Limited (Class 2)".
All references to Class A also include Class X.
1
1985 Douglas Drive North
Golden Valley, MN 55422
customer.honeywell.com
APPLICATION
Non-coded
Non-coded
Coded
Non-coded
Non-coded
Non-coded
Non-coded
Non-coded
1 / inches. Surface mounted
8
1 / ˝ junction box, and the control module
8
I56-3800-005
