InstallatIon anD maIntenance InstructIons
model tc810t1000cDn firephone control module
specIfIcatIons
Normal Operating Voltage:
Maximum Current Draw:
Average Operating Current:
SLC Wiring Resistance:
Supervisory Wiring Resistance:
Handset Offhook Resistance:
External Supply Voltage (between Terminals T3 and T4):
Temperature Range:
Humidity:
Dimensions:
Accessories:
Before InstallIng
This information is included as a quick reference installation guide. Refer to
the control panel installation manual for detailed system information. If the
modules will be installed in an existing operational system, inform the opera-
tor and local authority that the system will be temporarily out of service. Dis-
connect power to the control panel before installing the modules.
NOTICE: This manual should be left with the owner/user of this equipment.
general DescrIptIon
Firephone Control Modules are intended for use in Honeywell intelligent,
two-wire systems, where the individual address of each module is selected
using the built-in rotary switches. This module is used to connect a remote
firefighter telephone to a centralized telephone console. A ringing sound is
provided at each off-hook handset until it is connected to the console. Wir-
ing to individual telephone jacks and handsets is supervised, and status is
reported to the panel as NORMAL, TROUBLE, or TELEPHONE. This module
has two pairs of output termination points available for fault-tolerant wiring,
and includes a panel-controlled LED indicator.
compatIBIlIty requIrements
To ensure proper operation, this module shall be connected to compatible
Honeywell system control panels only.

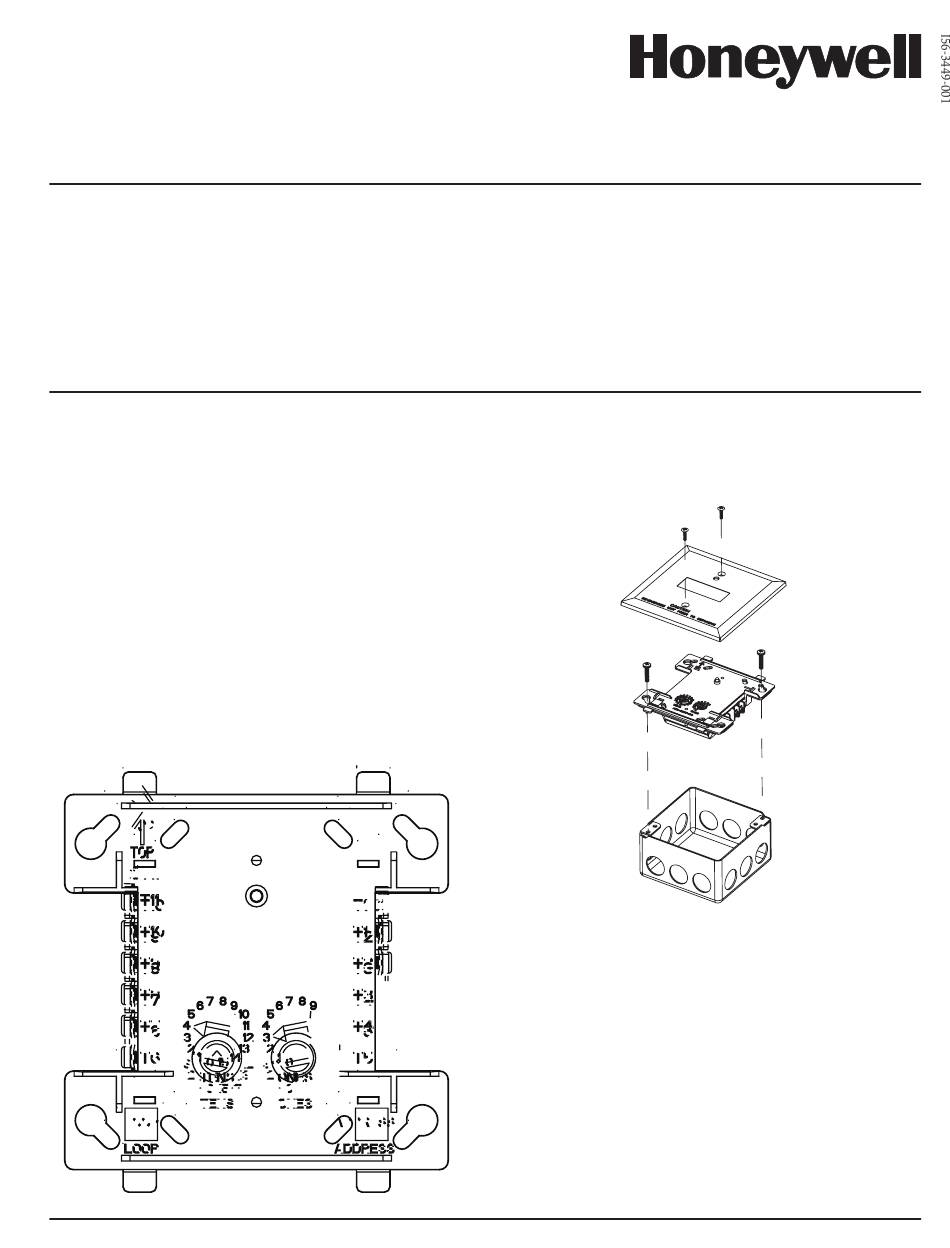

fIgure 1. controls anD InDIcators:
15 to 32 VDC
7.5 mA (LED on)
2.4mA (LED flashing)
40 Ohms
50 Ohms
400 to 1500 Ohms
Regulated 24 VDC
32°F to 120°F (0°C to 49°C)
10% to 93% Non-condensing
4 1 / ˝ H × 4˝ W × 1 1 / ˝ D (Mounts to a 4˝ square by 2
2 4
SMB500 Electrical Box; CB500 Barrier
mountIng
This module mounts directly to 4-inch square electrical boxes (see Figure
2A). The box must have a minimum depth of 2
trical boxes (SMB500) are available.
fIgure 2. moDule mountIng:
WIrIng
NOTE: All wiring must conform to applicable local codes, ordinances and
regulations.
1. Install module wiring in accordance with the job drawings and appropri-
ate wiring diagrams (Figures 3-4).
2. Set the address on the module per job drawings.
3. Secure module to electrical box (supplied by installer), Figure 2.
