www.ti.com
EVM User's Guide: ADC32RF55EVM, TRF1305EVM

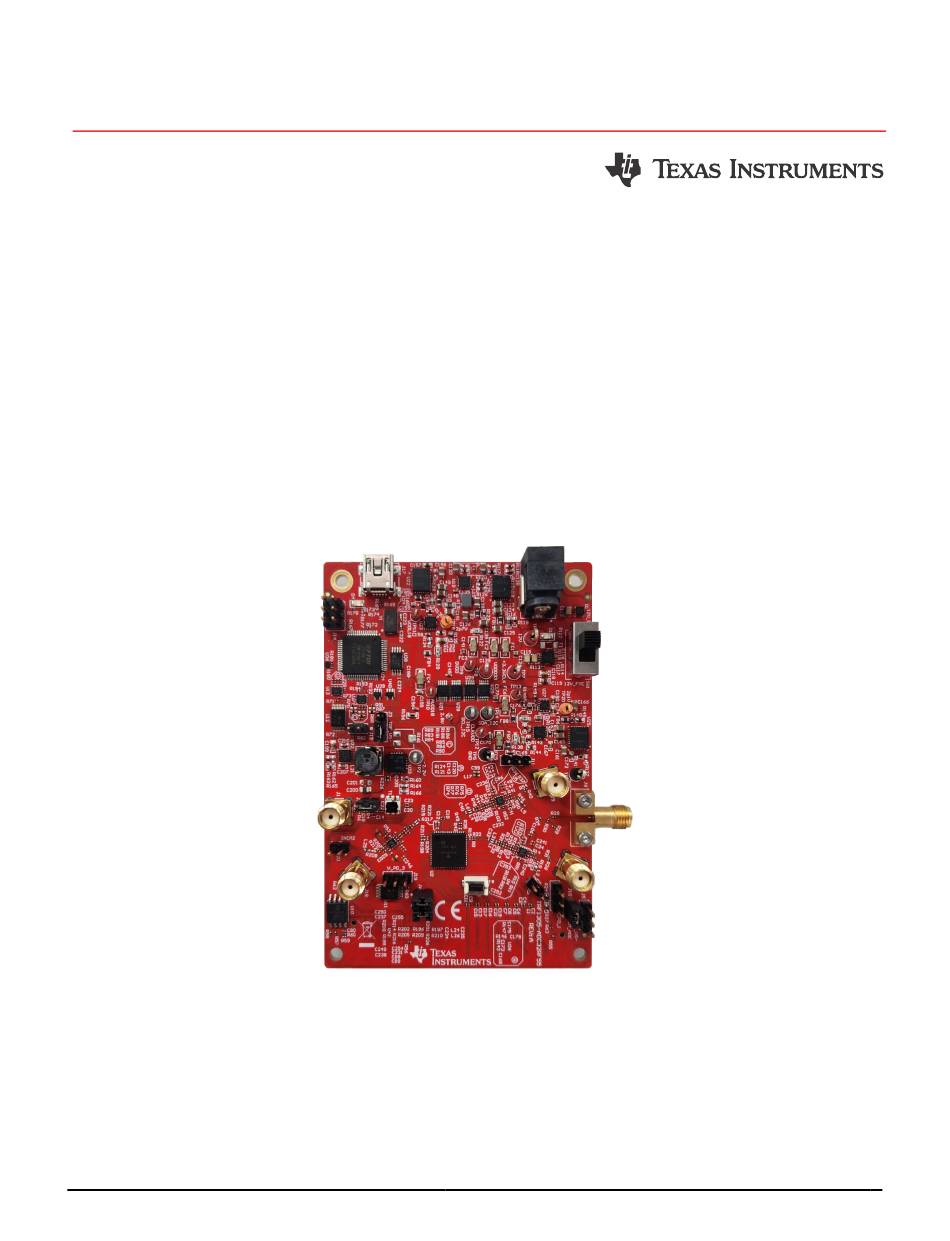

TRF1305-ADC32RFEVM Evaluation Module
Description

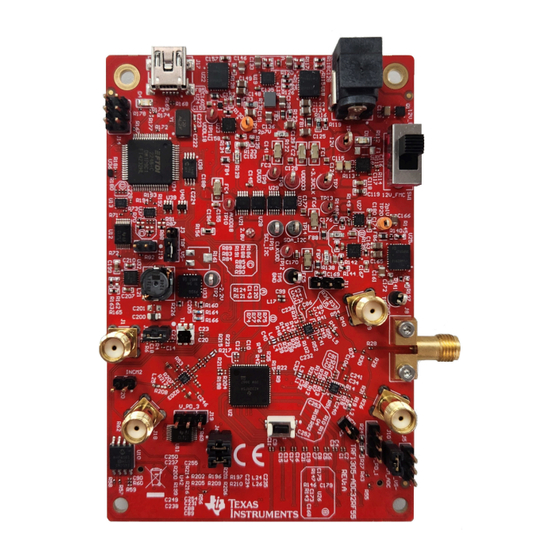

The TRF1305-ADC32RFEVM is an evaluation module
(EVM) designed to evaluate the ADC32RF5x family of
high-speed, JESD204B-interface ADC paired with the
TRF1305 fully-differential RF amplifier. The EVM also
includes an onboard clocking design (LMK04832), DC
power distribution, and an easy-to-use software GUI
and USB interface.
Features
An input channel featuring TI's fully-differential RF
amplifier TRF1305 allowing a single-ended signal
input with bandwidth from DC-2 GHz.
An input channel featuring dual TRF1305 devices
in a noise reduction scheme.
SBAU467 – OCTOBER 2024
Submit Document Feedback
LMK04832 system clock generator that generates
field-programmable gate array (FPGA) reference
clocks for the high-speed serial interface.
Flexible linked common mode operation enabled
by the TRF1305 allowing full use of dynamic range
of ADC and DC operation.
Applications
Phased array radar
Spectrum analyzer
Software defined radio (SDR)
Electronic warfare
High-speed digitizer
Cable infrastructure
Communications infrastructure
EVM
Copyright © 2024 Texas Instruments Incorporated
TRF1305-ADC32RFEVM Evaluation Module
Description
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRF1305-ADC32RFEVM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments TRF1305-ADC32RFEVM

  • Page 1 • LMK04832 system clock generator that generates Description field-programmable gate array (FPGA) reference The TRF1305-ADC32RFEVM is an evaluation module clocks for the high-speed serial interface. (EVM) designed to evaluate the ADC32RF5x family of • Flexible linked common mode operation enabled...
  • Page 2: Kit Contents

    1 Evaluation Module Overview 1.1 Introduction This document is the user's guide for the TRF1305-ADC32RFEVM evaluation module. This user's guide provides the schematic, bill of materials, and board layout of the EVM. Throughout this document, the terms evaluation board, evaluation module, and EVM are synonymous with the TRF1305-ADC32RFEVM.
  • Page 3: Required Software

    • Bandpass filter for desired analog input • High quality signal path cables 2.2 Required Software The following software is required to operate the TRF1305-ADC32RFEVM and is available online. For related links, see Section • ADC32RF5x EVM GUI The following software is required to operate the TSW14J58 EVM and is available online. For related links, see Section •...
  • Page 4 Quick Start Guide www.ti.com 3 Quick Start Guide The EVM test procedure to obtain a valid data capture from the TRF1305-ADC32RFEVM using the TSW14J58EVM data capture board is provided in this section. This is the starting point for all evaluations. 3.1 Introduction...
  • Page 5: Hardware Setup

    Quick Start Guide 3.2 Hardware Setup A typical test setup using the TRF1305-ADC32RFEVM and TSW14J58EVM is shown in Figure 3-1. USB 2.0 12V, 2A Barrel Jack Mini-USB Cables to (Center Positive) ADC CLK input ADC Input A (external splitter connection,...
  • Page 6: Software Setup

    1. Download HSDC Pro GUI installer. 2. Extract the installation files from the downloaded zip file. 3. Run setup.exe and follow the installation prompts to complete installation. TRF1305-ADC32RFEVM Evaluation Module SBAU467 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 7 ADC32RF5x devices. TSW14J58EVM 1. Connect the TRF1305-ADC32RFEVM to the TSW14J58EVM using the FMC connectors. 2. Connect a 6V, 5A minimum power supply to connector J2. 3. Connect a USB 2.0 Type-A to Mini-B cable to connector J23.
  • Page 8 6. Adjust signal generator output such that the measured fundamental power in HSDC Pro is at the user's desired level. (shown below is -12 dBFs) Figure 3-5. 300.039MHz, bypass mode, 2x averaging, dither off TRF1305-ADC32RFEVM Evaluation Module SBAU467 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 9 3-6, press the Device Bringup button. Figure 3-6. ADC32RF5xEVM GUI, 8x Complex Decimation, 800MHz NCO 7. Wait until after the message Device Bringup Completed appears in the Log. SBAU467 – OCTOBER 2024 TRF1305-ADC32RFEVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 10 13. Check the box labeled Auto Calculation of Coherent Frequencies to see the ADC Input Target Frequency change from 790M to the coherent frequency. Set the signal generator connected to channel A input to this coherent frequency. TRF1305-ADC32RFEVM Evaluation Module SBAU467 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 11 16. Adjust signal generator output such that the measured fundamental power in HSDC Pro is at the user's desired level. Figure 3-9. 789.995MHz Input, 8x Complex Decimation, 1x Averaging, Dither On SBAU467 – OCTOBER 2024 TRF1305-ADC32RFEVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 12 9. Wait until after the message Device Bringup Completed appears in the Log. 10. In HSDC Pro, connect to the TSW14J58EVM and select ADC32RF5x_1481_1p5G-2G as the INI file shown Figure 3-11. TRF1305-ADC32RFEVM Evaluation Module SBAU467 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 13 13. Check the box labeled Enable? and then enter the parameters shown in Figure 3-12. Figure 3-12. Additional Device Parameters , 128x Complex Decimation 14. Once completed, press OK. SBAU467 – OCTOBER 2024 TRF1305-ADC32RFEVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 14: Operating Modes

    18. Adjust signal generator output such that the measured fundamental power in HSDC Pro is at the user's desired level. Figure 3-13. 1003.002MHz Input, 128x Complex Decimation, 2x Averaging, Dither Amplitude 3 3.6 Operating Modes This section covers the available operating modes available to users on the TRF1305-ADC32RFEVM. CONFIGURATION AVERAGING MODE USABLE CHANNELS...
  • Page 15 Quick Start Guide 3.6.1 Input Comparison The TRF1305-ADC32RFEVM features two common configurations when driving an ADC. On channel B, the configuration is optimized for power consumption, featuring a single TRF1305 RF Amplifier driving the ADC. When enabling averaging, the ADC noise spectral density (NSD) decreases with each averaging setting used.
  • Page 16 Hardware Design Files www.ti.com 4 Hardware Design Files 4.1 Schematics Figure 4-1. Channel A Input Schematic TRF1305-ADC32RFEVM Evaluation Module SBAU467 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 17 Hardware Design Files Figure 4-2. Channel B Input Schematic SBAU467 – OCTOBER 2024 TRF1305-ADC32RFEVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 18: Pcb Layouts

    Utilization of the onboard resistive divider allows the user to evaluate the pros and cons of incorporating such a divider into the end equipments. TRF1305-ADC32RFEVM Evaluation Module SBAU467 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 19 The dielectric in this case was chosen as Panasonic Megtron6. This dielectric was chosen for the controlled dielectric constant. The effects of this are constant and controlled impedance of the surrounding RF traces. SBAU467 – OCTOBER 2024 TRF1305-ADC32RFEVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 20 C87, C95, C105, C230, C238, C239, 2.2uF CAP, CERM, 2.2uF, 10V, +/- 10%, X7S, 0402 C1005X7S1A225K050BC 0402 C242, C243, C244, C245, C247, C250, C251 TRF1305-ADC32RFEVM Evaluation Module SBAU467 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 21 0.1uF CAP, CERM, 0.1µF, 10V,+/- 10%, X5R, 0201 GRM033R61A104KE84D MuRata 0201 C156, C178 C128 0.47uF CAP, CERM, 0.47µF, 16V,+/- 10%, X7S, 0402 CGA2B1X7S1C474K050BE 0402 SBAU467 – OCTOBER 2024 TRF1305-ADC32RFEVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 22 C205 0.01uF CAP, CERM, 0.01µF, 25V,+/- 10%, X7R, 0201 GRM033R71E103KE14D MuRata 0201 C206 CAP, CERM, 1uF, 25V, +/- 10%, X5R, 0402 GRM155R61E105KA12D MuRata 0402 TRF1305-ADC32RFEVM Evaluation Module SBAU467 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 23 Header, 2.54mm, 2x1, Gold, TH 61300211121 Wurth Elektronik Header, 2.54mm, 2x1, TH Sullins Connector J3, J4, J5, J11, J19 Header, 100mil, 3x1, Gold, TH PBC03SAAN PBC03SAAN Solutions SBAU467 – OCTOBER 2024 TRF1305-ADC32RFEVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 24 PCB Label 0.650 x 0.200 LBL1 THT-14-423-10 Brady 0.200" H - 10,000 per roll inch MOSFET, N-CH, 20V, 10A, DQK0006C CSD15571Q2 Texas Instruments DQK0006C (WSON-6) TRF1305-ADC32RFEVM Evaluation Module SBAU467 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 25 RES, 150, 1%, 0.05 W, 0201 RC0201FR-07150RL Yageo America 0201 R201, R206 RES, 49.9, 1%, 0.05 W, AEC-Q200 Grade 1, R18, R45, R207 49.9 ERJ-1GNF49R9C Panasonic 0201 0201 SBAU467 – OCTOBER 2024 TRF1305-ADC32RFEVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 26 RES, 1.00 k, 1%, 0.1 W, 0402 ERJ-2RKF1001X Panasonic 0402 0 Ohms Jumper 0.1W, 1/10W Chip Resistor R130 0uΩ CR0402-10W-000T Venkel 0402 0402 (1005 Metric) - Thick Film TRF1305-ADC32RFEVM Evaluation Module SBAU467 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 27 RES, 182 k, 1%, 0.063 W, AEC-Q200 Grade R164 182k CRCW0402182KFKED Vishay-Dale 0402 0, 0402 RES, 130 k, 5%, 0.063 W, AEC-Q200 Grade R165 130k CRCW0402130KJNED Vishay-Dale 0402 0, 0402 SBAU467 – OCTOBER 2024 TRF1305-ADC32RFEVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 28 64K I2C Smart Serial EEPROM, SOIC-8 24LC65-I/SM Microchip SOIC-8, 208mil wide Low-Voltage 4-Bit 1-Of-2 FET Multiplexer/ U11, U12, U14 SN74CBTLV3257DGVR Texas Instruments DGV0016A Demultiplexer, DGV0016A (TVSOP-16) TRF1305-ADC32RFEVM Evaluation Module SBAU467 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 29 Texas Instruments VQFN-HR10 Micro Ripple (200µVPP) buck converter Buck Switching Regulator IC Negative Adjustable -1V 1 Output 1A 12-WSON TPS63710DRRT Texas Instruments WSON12 Exposed Pad SBAU467 – OCTOBER 2024 TRF1305-ADC32RFEVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 30 RES, 4.70 k, 1%, 0.0625 W, 0402 RC0402FR-074K7L Yageo America 0402 RES, 12.1 k, 1%, 0.063 W, AEC-Q200 Grade R152 12.1k RMCF0402FT12K1 Stackpole Electronics Inc 0402 0, 0402 TRF1305-ADC32RFEVM Evaluation Module SBAU467 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 31 RES, 237 k, 1%, 0.063 W, AEC-Q200 Grade R162 237k CRCW0402237KFKED Vishay-Dale 0402 0, 0402 R173 12.0k RES, 12.0 k, 1%, 0.05 W, 0201 RC0201FR-7D12KL Yageo America 0201 SBAU467 – OCTOBER 2024 TRF1305-ADC32RFEVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 32: Additional Information

    Module, user's guide • Texas Instruments, TSW14J58 JESD204C Data Capture and Pattern Generator Card, user's guide • Texas Instruments, High Speed Data Converter Pro software (High Speed Data Converter Pro GUI, user's guide Note The EVM schematics, layout, and BOM are available on the TRF1305-ADC32RFEVM tool page.
  • Page 33 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
  • Page 34 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
  • Page 35 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
  • Page 36 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
  • Page 37 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
  • Page 38 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2024, Texas Instruments Incorporated...
