EVM User's Guide: TRF1213EVM
TRF1213 Evaluation Module
Description

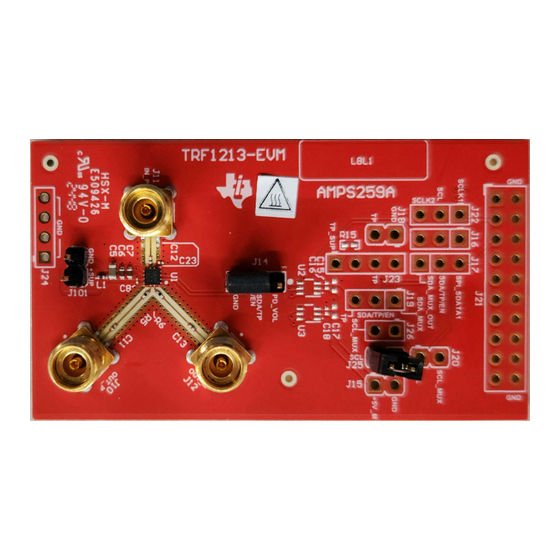

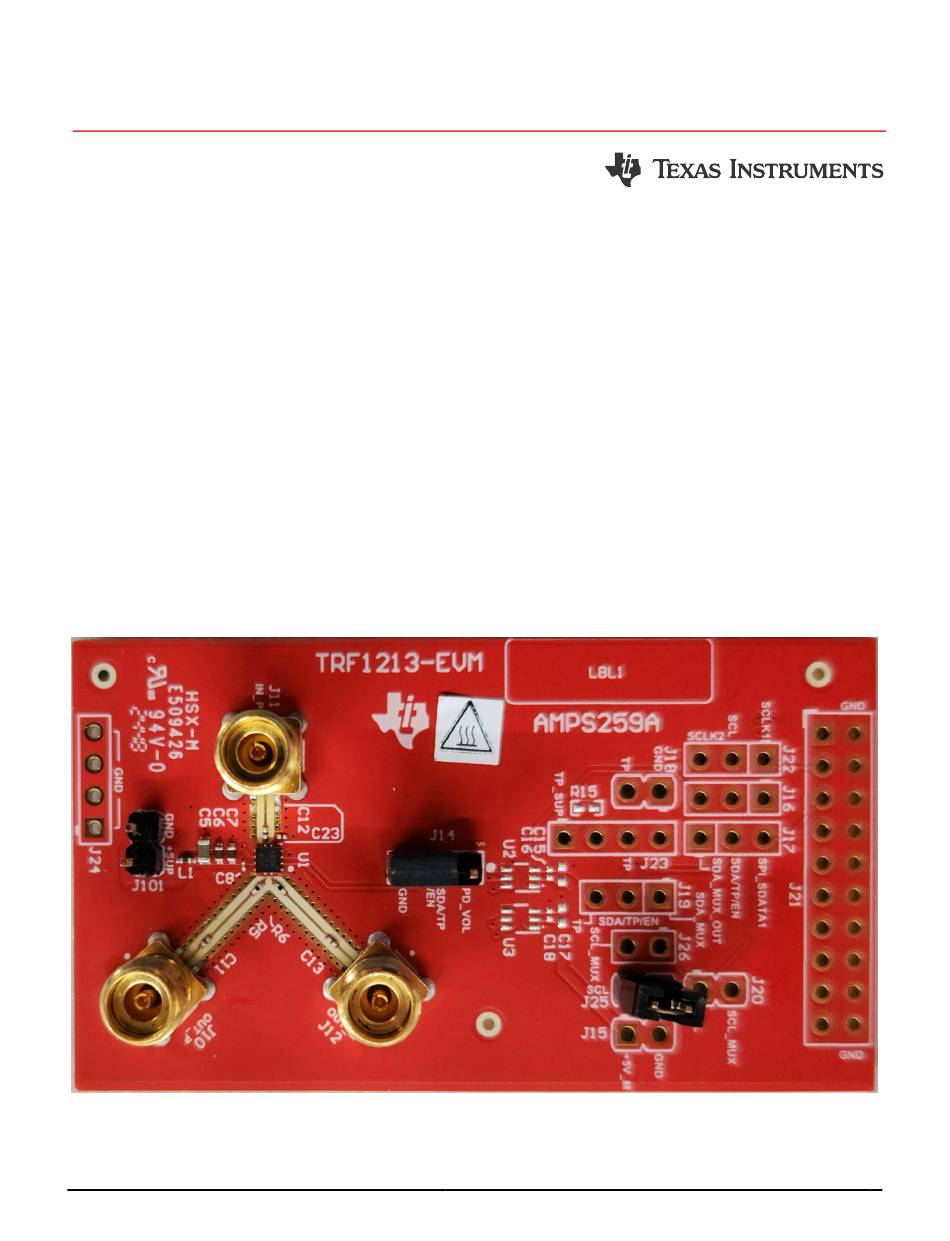

The TRF1213 evaluation module (EVM) is used to
evaluate the TRF1213 device, which is a single-ended
input to differential output RF amplifier available in a
2mm × 2mm, 12-pin WQFN package.
Get Started
1. Order the EVM.
2. Download the comprehensive reference design
files from the
TRF1213EVM tool
SLOU588 – MARCH 2025
Submit Document Feedback
Features
•
Operates on a single 5V supply
•
Designed for single-ended, 50Ω input matching
•
Simple interface to the input and outputs through
onboard SMA connectors
•
Power-down option available onboard using a
jumper
Applications
•
RF sampling or GSPS ADC driver
folder.
•
Aerospace and defense
•
Radar seeker front end
•
Phased array radar
•
Military radios
•
Test and measurement
•
High-speed digitizers
•
Vector signal transceiver (VST)
•
4G/5G wireless BTS 3
TRF1213EVM
Copyright © 2025 Texas Instruments Incorporated
Description
TRF1213 Evaluation Module
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments TRF1213
Summary of Contents for Texas Instruments TRF1213
- Page 1 Description EVM User's Guide: TRF1213EVM TRF1213 Evaluation Module Description Features The TRF1213 evaluation module (EVM) is used to • Operates on a single 5V supply evaluate the TRF1213 device, which is a single-ended • Designed for single-ended, 50Ω input matching input to differential output RF amplifier available in a •...
-
Page 2: Kit Contents
The device is fabricated in Texas Instruments’ advanced complementary BiCMOS process and is available in a space-saving, WQFN-FCRLF package. The TRF1213 operates on a single-rail supply and consumes 170mA to 180mA of active current. A power-down feature is also available for power savings. - Page 3 4. Matching considerations: a. The TRF1213 is a wideband amplifier and expects 50Ω input matching over the operating bandwidth up to approximately 14GHz. For more information, see the TRF1213 Near-DC to >...
- Page 4 Hardware www.ti.com 2.1.2 Test Setup Diagrams This section includes general recommendations for gain, OP1dB, S-parameter, noise figure, and two-tone OIP3 setup while measuring the TRF1213 device. 2.1.2.1 Gain and OP1dB Test Setup DC Power Supply (5V Single Supply) (Current Measurement)
- Page 5 3. Ensure that the frequency sweep and output power level from the VNA is set within the linear operating range of the TRF1213 device. The resolution bandwidth (RBW) and dynamic range of the VNA can be adjusted to give optimum sweep time for the measurement.
- Page 6 Friis equation for a cascaded noise factor used to calculate the NF of the , can then be extracted and converted into a logarithmic scale to give the TRF1213 NF. The loss of the EVM traces themselves is shown in Figure 2-3.
- Page 7 , at the device. 3. Keep the output power level within the TRF1213 linear operating range. For example, if the total desired output power at the device is 8dBm, set the signal generators so that each of the fundamental output powers results in 2dBm per tone.
- Page 8 Hardware Design Files www.ti.com 3 Hardware Design Files 3.1 Schematic Figure 3-1 shows the TRF1213EVM schematic. Figure 3-1. TRF1213EVM Schematic TRF1213 Evaluation Module SLOU588 – MARCH 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 9 Hardware Design Files 3.2 PCB Layout Figure 3-2 through Figure 3-5 illustrate the PCB layers for this EVM. Figure 3-2. Top Layer Figure 3-3. Layer 2 SLOU588 – MARCH 2025 TRF1213 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 10 Hardware Design Files www.ti.com Figure 3-4. Layer 3 Figure 3-5. Bottom Layer TRF1213 Evaluation Module SLOU588 – MARCH 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 11 Rogers 4350B 5.00 3.48 Copper 1.40 Dielectric 2 44.80 Copper 1.40 Dielectric 3 5.00 Bottom Layer Copper 1.40 Bottom Solder Solder Resist 1.00 Bottom Overlay SLOU588 – MARCH 2025 TRF1213 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 12 RES, 2.49 k, 1%, 0.063 W, AEC-Q200 Grade R8, R9 2.49k 0402 CRCW04022K49FKED Vishay-Dale 0, 0402 SH-J1, SH-J2 Shunt, 100mil, Gold plated, Black Shunt SNT-100-BK-G Samtec TRF1213RPVR WQFN-FCRLF12 TRF1213RPVR Texas Instruments TRF1213 Evaluation Module SLOU588 – MARCH 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
-
Page 13: Related Documentation
